Ferrite Devices OIS-430460-05-18-22

Ferrite Devices OIS-430460-05-18-22

0 out of 5

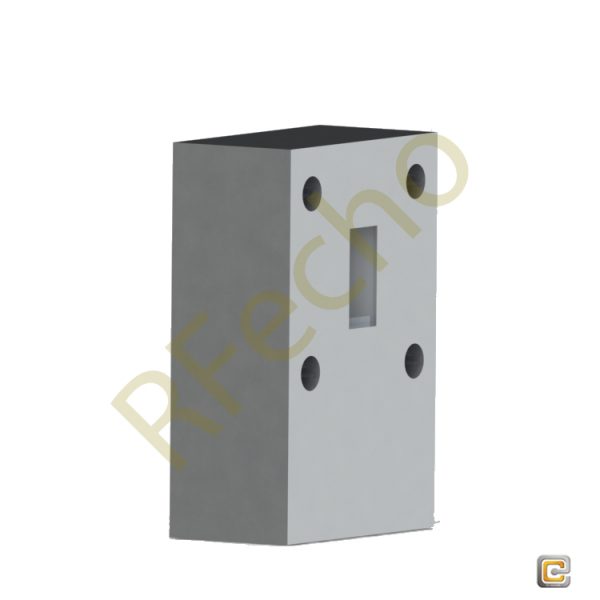

Model OIS-430460-05-18-22 is a Q band waveguide junction isolator that covers the frequency range of 43 to 46 GHz.
Compared with a Faraday isolator, thewaveguide junction isolator offers a lower insertion loss of 0.5 dB nominal and a much shorter insertion length for system integration. As a tradeoff, the waveguide junction isolator only offers an isolation of 18 dB typical.
The input and output ports are WR-22waveguides with UG-599/U flanges. Various configurations and frequency ranges are offered underdifferent model
numbers.

SKU: OIS-430460-05-18-22 Categories: Ferrite Devices, Routing

Description

SPEC

Ferrite Devices



Model OIS-430460-05-18-22 is a Q band waveguide junction isolator that covers the frequency range of 43 to 46 GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss of 0.5 dB nominal and a much shorter insertion length for system integration.



As a tradeoff, the waveguide junction isolator only offers an isolation of 18 dB typical. The input and output ports are WR-22

waveguides with UG-599/U flanges. Various

configurations and frequency ranges are offered under different model numbers.



Features

Low Insertion Loss

Moderate Isolation

Compact Configuration







Applications

Port Isolation

Module Integration

Part No.

OIS-430460-05-18-22

RF Frequency Range(GHz)

43-46

Insertion Loss(dB)

    0.5

Isolation(dB)

    18

VSWR

    1.3:1

Power Handling(W) Specification Temperature

Operating Temperature

5

+25 °C

-40°C~+85 °C





PDF

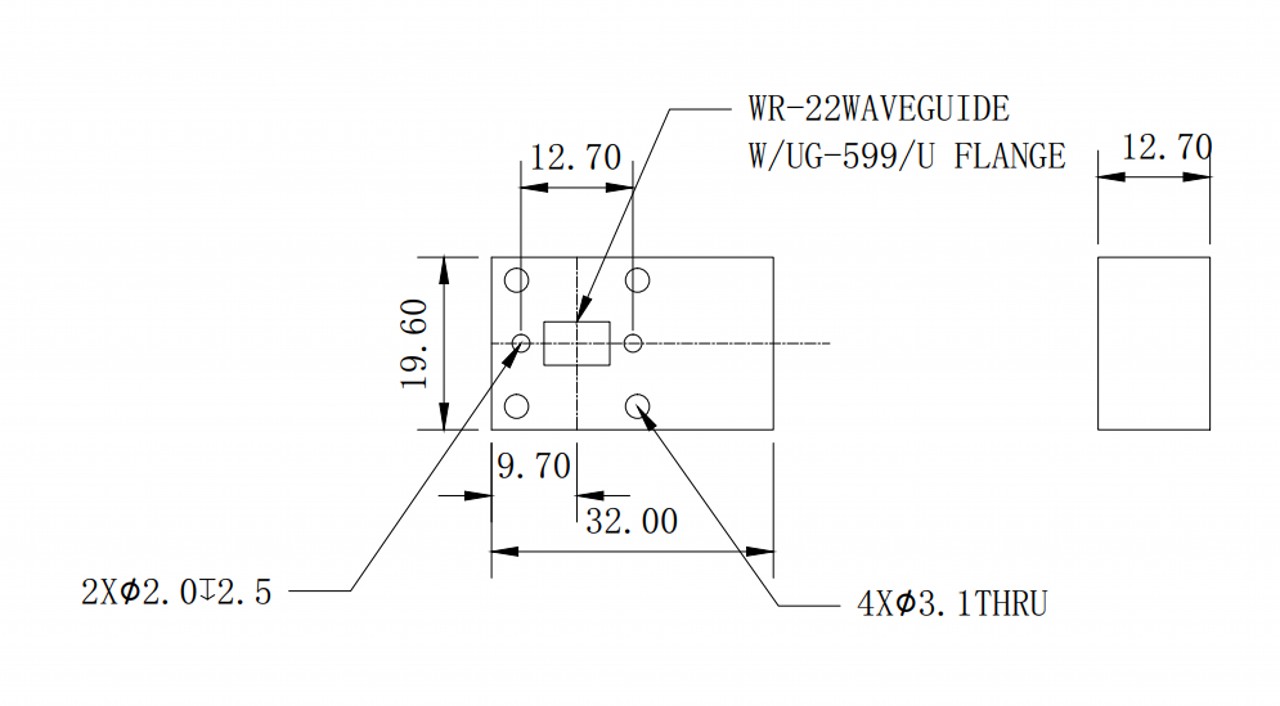

Outline

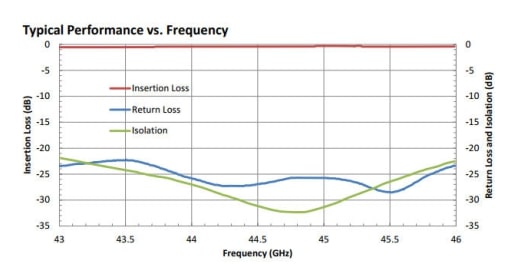

Plot

Additional information

Min. Frequency (GHz)

43

Max. Frequency (GHz)

46

Insertion Loss (dB)

0.5

Isolation (dB)

18

VSWR

1.3:1
