Ferrite Devices OIS-62-H

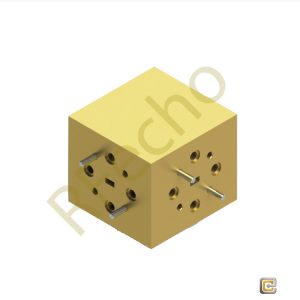

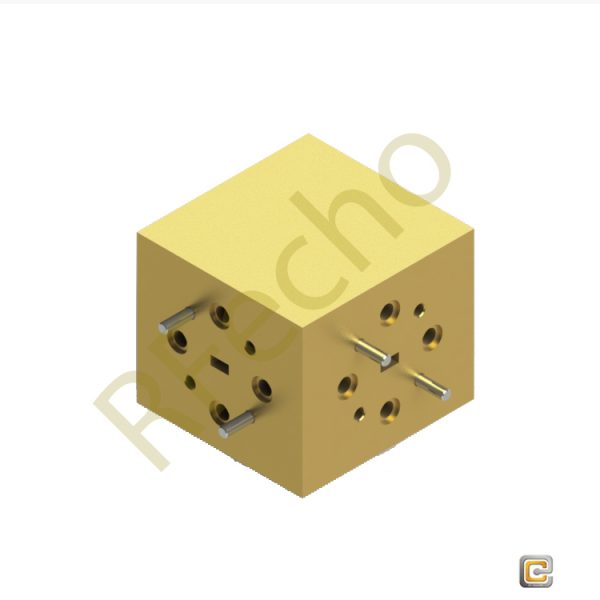

Model OIS-62-H is a Ku band,waveguide junction isolator that covers the frequency range of 12.4 to18GHz.
The full band isolator is designed andmanufactured to provide a low insertion loss of 0.25 dB typical with goodflatness. The isolator also offers a moderate isolation of 21dB for system integration and a high power handling.
The input and output ports areWR-62 waveguides with UG-419/U flanges.
- Description
- Additional information
Description
SPEC
|
Ferrite Devices |
|||
|
|
|||
|
Model OIS-62-H is a Ku band,waveguide junction isolator that covers the frequency range of 12.4 to18GHz. The full band isolator is designed and manufactured to provide a low insertion loss of 0.25 dB typical with good flatness. The isolator also offers a moderate isolation of 21dB for system integration and a high power handling.The input and output ports are WR-62 waveguides with UG-419/U flanges.
Features Low InsertionLoss Moderate Isolation Compact Configuration |
Applications Port Isolation Module Integration |
||
|
Part No. |
OIS-62-H |
||
|
RF Frequency Range(GHz) |
12.4-18 |
||
|
Insertion Loss(dB) |
0.25 |
||
|
Isolation(dB) |
21 |
||
|
VSWR |
1.15:1 |
||
|
Forward PowerHandling(W) Reverse Power Handling(W) Specification Temperature Operating Temperature |
50 5 +25 °C -25°C~+60 °C |
||
|
|
|
||

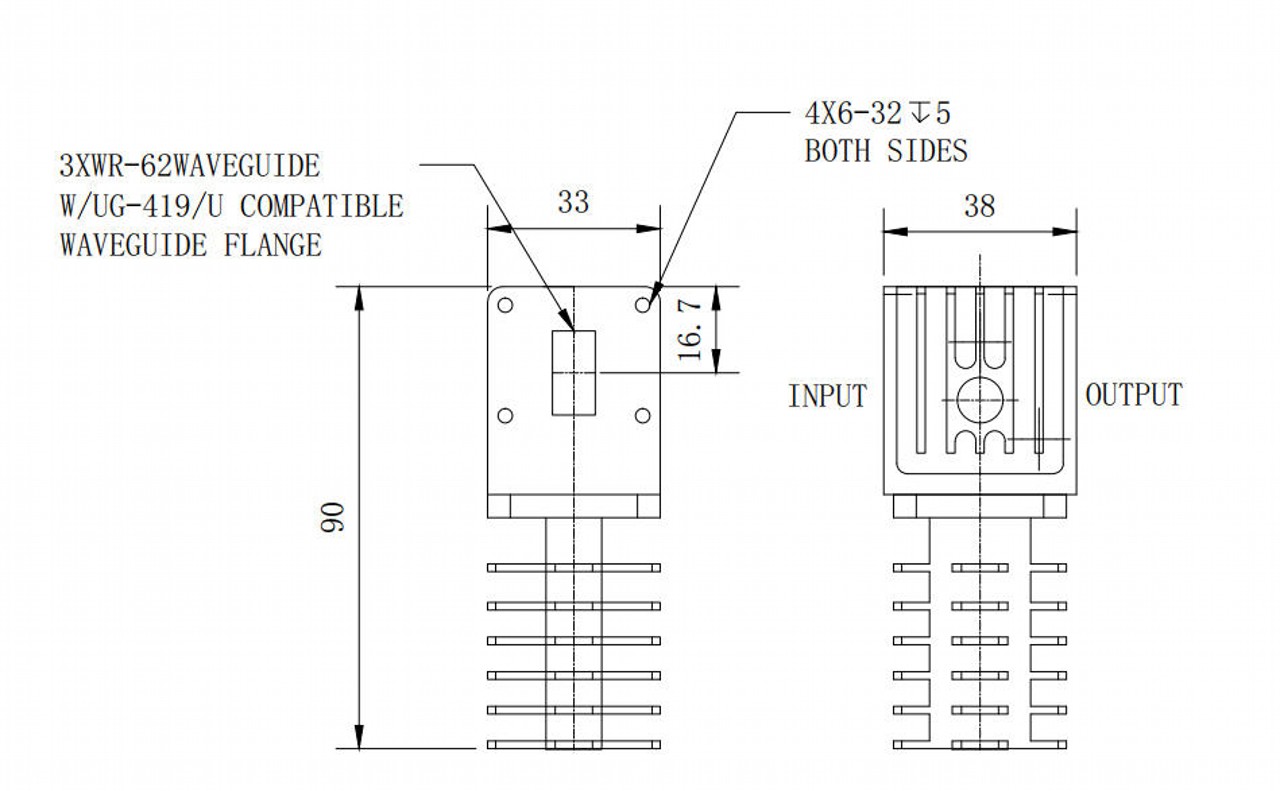

Outline

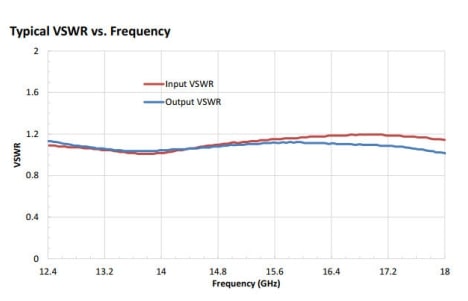

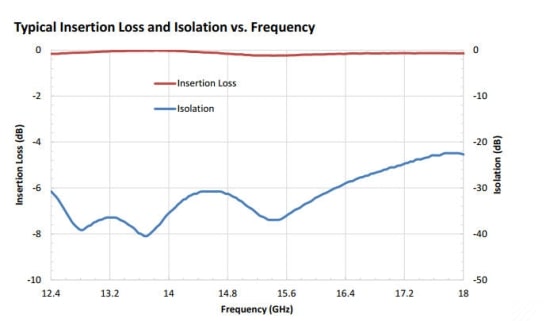

Plot
