Ferrite Devices OIS-640660-08-18-15

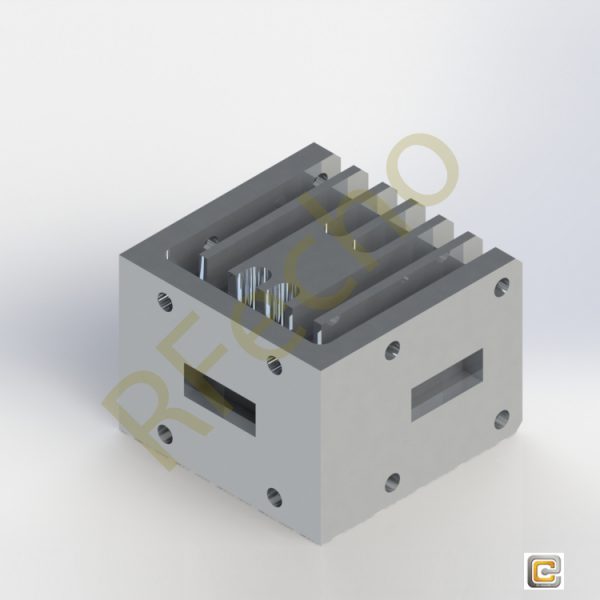

Model OIS-640660-08-18-15 is a V band waveguide junction isolator that
covers the frequency range of 64 to 66GHz.
Compared with a Faraday isolator, the waveguidejunction isolator offers a
lower insertion loss of 0.8 dBnominal and a much shorter insertion length
for systemintegration.
As a tradeoff, the waveguide junction isolatoronly offers a typical isolation
of 18 dB.
The input and outputports are WR-15 waveguides with UG-385/U flanges.

Add to Wishlist
Add to Wishlist
SKU: OIS-640660-08-18-15 Categories: ,
Get a Quote
Description

SPEC

Ferrite Devices



Model OIS-640660-08-18-15 is a V band waveguide junction isolator that covers the frequency range of 64 to 66GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss of 0.8 dB

nominal and a much shorter insertion length for system integration. As a tradeoff, the waveguide junction isolator only offers a typical isolation of 18dB. The input and output ports are WR-15 waveguides with UG-385/U flanges.

.

Features

Low Insertion Loss

Moderate Isolation

Compact Configuration



Applications

Port Isolation

Module Integration

Part No.

OIS-640660-08-18-15

RF Frequency Range(GHz)

64-66

Insertion Loss(dB)

    0.8

Isolation(dB)

    18

VSWR

    1.4:1

Forward Power Handling(W) Reverse Power Handling(W)

Specification Temperature

Operating Temperature

2(CW)

0.5(CW)

+25 °C

-40°C~+85 °C





PDF

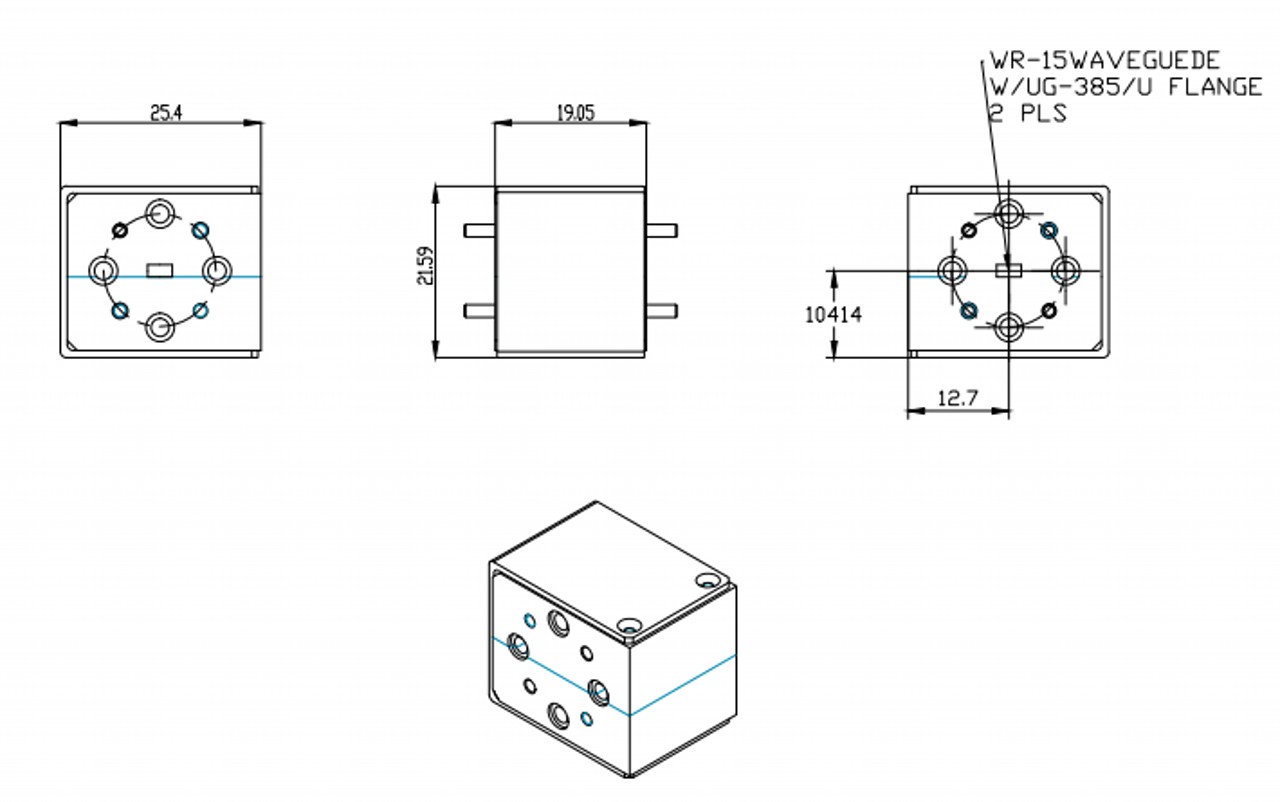

Outline

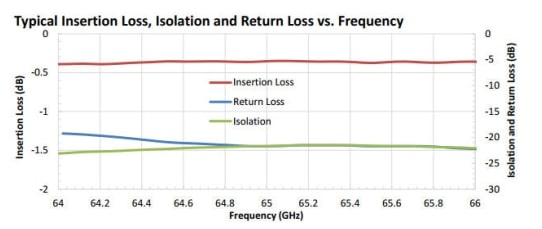

Plot

Additional information
Product Code

OIS-640660-08-18-15

Min Freq. (GHz)

64.0

Max Freq. (GHz)

66.0

Insertion Loss (dB)

0.80

Isolation (dB)

18

VSWR

1.4:1
