Ferrite Devices OIS-710760-08-18-12

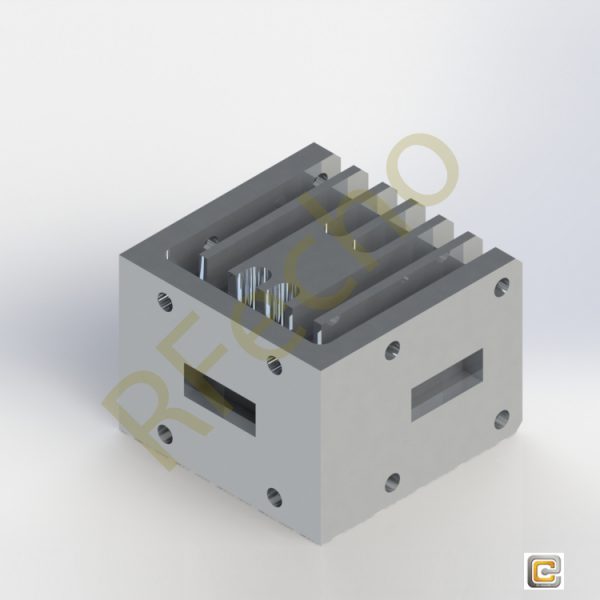

Model OIS-710760-08-18-12 is an E band waveguide junction isolator that covers the frequency range of 71 to 76GHz.
Compared with a Faraday isolator, the waveguidejunction isolator offers at insertion loss of 0.8 dB typical anda much shorter insertion length for system integration. As atradeoff, the waveguide junction isolator only offers anominal isolation of 18 dB.
The input and output ports areWR-12 waveguides with UG-387/U flanges.
- Description
- Additional information
Description
SPEC
|
Ferrite Devices |
|||
|
|
|||
|
Model OIS-710760-08-18-12 is an E band waveguide junction isolator that covers the frequency range of 71 to 76GHz. Compared with a Faraday isolator, the waveguide junction isolator offers at insertion loss of 0.8 dB typical and a much shorter insertion length for system integration. As a tradeoff, the waveguide junction isolator only offers a nominal isolation of 18dB. The input and output ports are WR-12 waveguides with UG-387/U flanges.
Features Low Insertion Loss Moderate Isolation Compact Configuration |
Applications Port Isolation Module Integration |
||
|
Part No. |
OIS-710760-08-18-12 |
||
|
RF Frequency Range(GHz) |
71-76 |
||
|
Insertion Loss(dB) |
0.8 |
||
|
Isolation(dB) |
18 |
||
|
Return Loss(dB) |
16 |
||
|
Forward Power Handling(W) Reverse Power Handling(W) Specification Temperature Operating Temperature |
3(CW) 1(CW) +25 °C -40°C~+85 °C |
||
|
|
|
||

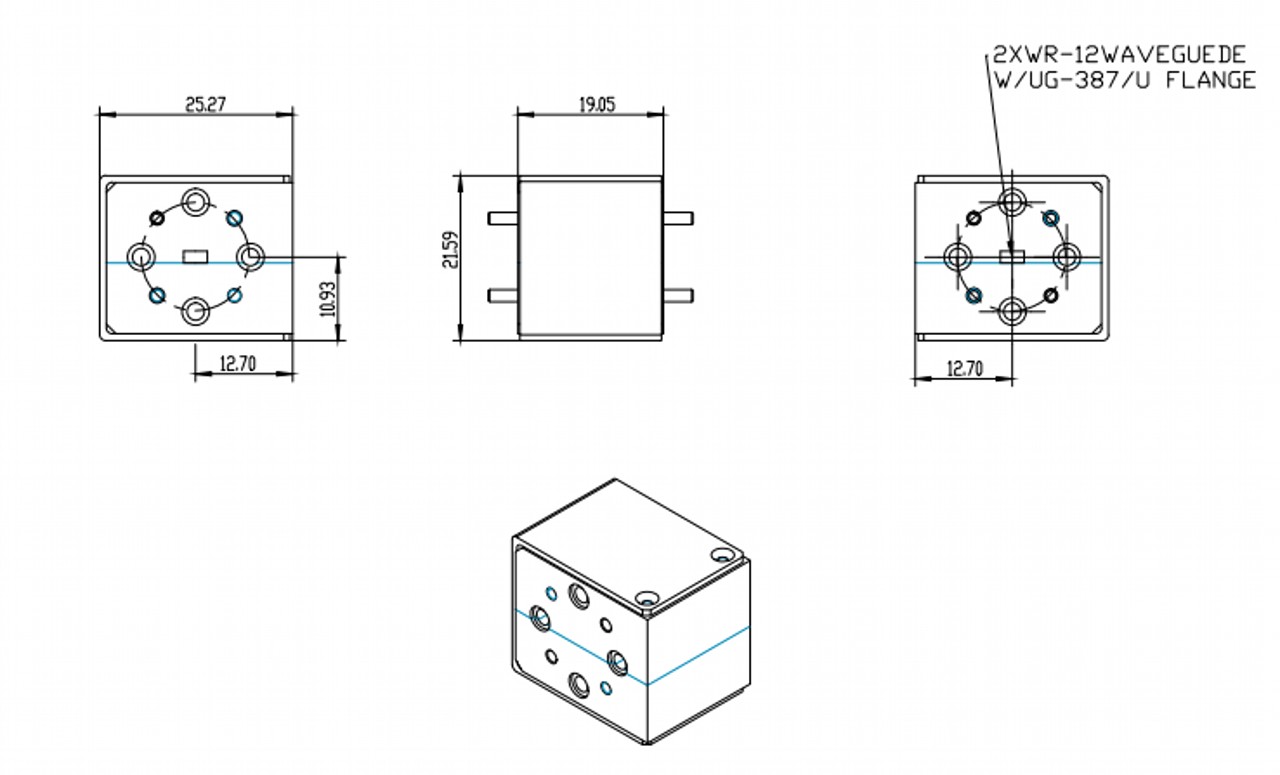

Outline

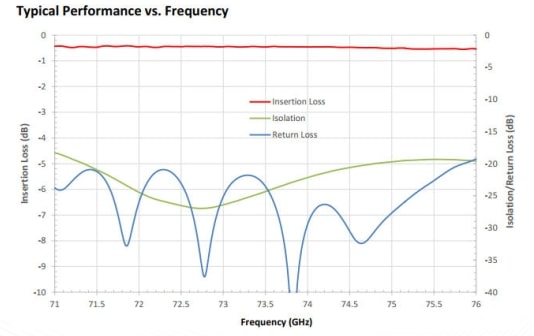

Plot
