Ferrite Devices OIS-90-H
Model OIS-90-H is an X band,waveguide junction isolator that covers thefrequency range of 8.2 to12.4GHz.
The full band isolator is designed andmanufactured to provide a lowinsertion loss of 0.25 dB typical with goodflatness. The isolator also offers a moderate isolation of 21dBfor systemintegrationand a high power handling.
The input and output ports are WR-90 waveguides with UG-39/U flanges
- Description
- Additional information
Description
SPEC
|
Ferrite Devices |
|||
|
|
|||
|
Model OIS-90-H is an X band,waveguide junction isolator that covers the frequency range of 8.2 to12.4GHz. The full band isolator is designed and manufactured to provide a low insertion loss of 0.25 dB typical with good flatness. The isolator also offers a moderate isolation of 21dBfor system integration and a high power handling.The input and output ports are WR-90 waveguides with UG-39/U flanges.
Features Low InsertionLoss Moderate Isolation Compact Configuration
|
Applications Port Isolation Module Integration |
||
|
Part No. |
OIS-90-H |
||
|
RF Frequency Range(GHz) |
8.2-12.4 |
||
|
Insertion Loss(dB) |
0.25 |
||
|
Isolation(dB) |
21 |
||
|
VSWR |
1.15:1 |
||
|
Forward PowerHandling(W) Reverse Power Handling(W) Specification Temperature Operating Temperature |
50 5 +25 °C -25°C~+85 °C |
||
|
|
|
||

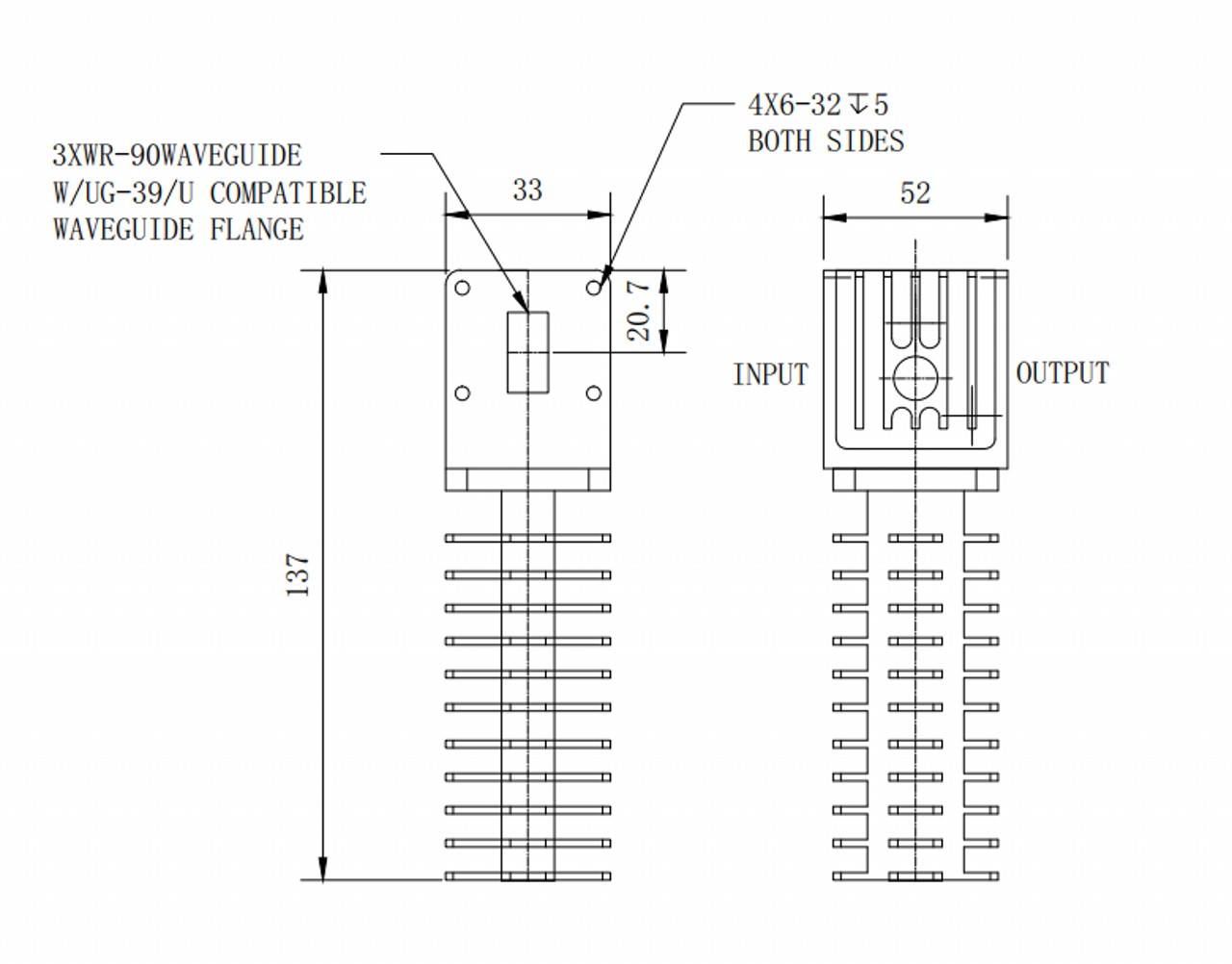

Outline

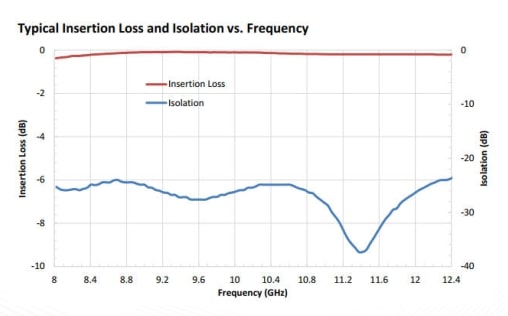

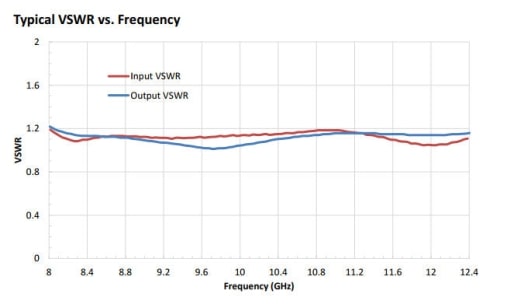

Plot
