Ferrite Devices OISC-380400-04-20-28

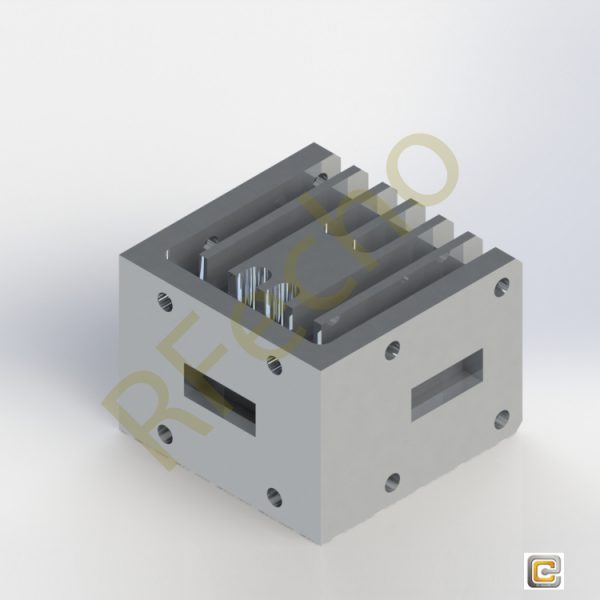

Model OISC-380400-04-20-28 is a Ka band waveguide junction circulator that covers the frequency range of 38 to 40GHz.
The waveguide junctioncirculator is designed and manufactured to provide a low insertion loss of 0.3 dB nominal, a typical isolation of 20 dB,andamuch shorter insertionlength for systemintegration.
The input and output ports are WR-28waveguides with UG-599/U flanges.
The circulator implements a U-shapedmagnet shielding steel cover to protect it from magnetic field interference.

Add to Wishlist
Add to Wishlist
SKU: OISC-380400-04-20-28 Categories: ,
Get a Quote
Description

SPEC

Ferrite Devices



Model OISC-380400-04-20-28 is a Ka band waveguide junction circulator that covers the frequency range of 38 to 40GHz.The waveguide junction circulator is designed and manufactured to provide a low insertion loss of

0.3 dB nominal, a typical isolation of 20 dB, and a much shorter insertion length for system integration.



The input and output ports are WR-28 waveguides with UG-599/U flanges. The circulator implements a U-shaped

magnet shielding steel cover to protect it from magnetic field interference.



Features

Low Insertion Loss

Moderate Isolation

Compact Configuration







Applications

Port Isolation

Module Integration

Part No.

OISC-380400-04-20-28

RF Frequency Range(GHz)

38-40

Insertion Loss(dB)

    0.3

Isolation(dB)

    20

Return Loss

    17.5dB

Power Handling(W)

Specification Temperature

Operating Temperature

3

+25 °C

-40°C~+85 °C





PDF

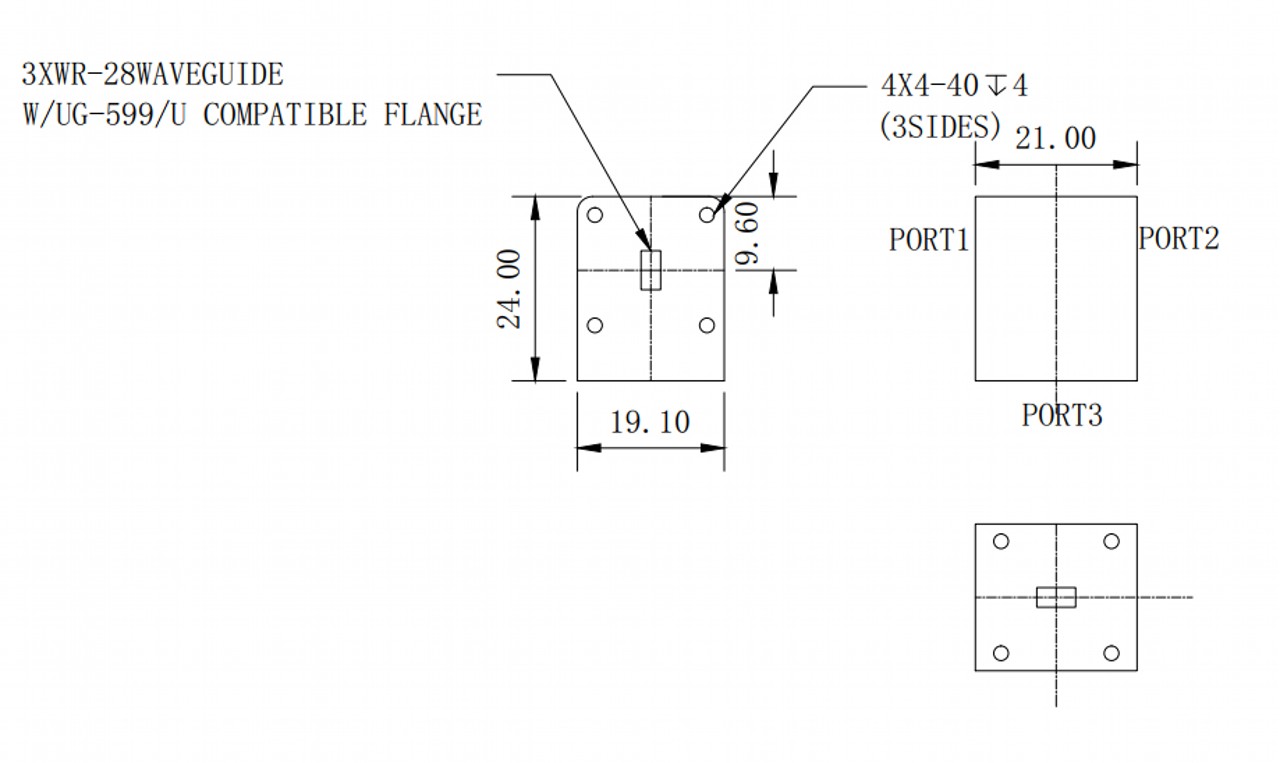

Outline

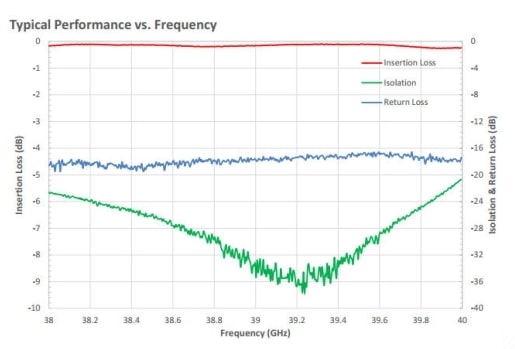

Plot

Additional information
Product Code

OISC-380400-04-20-28

Min Freq. (GHz)

38.0

Max Freq. (GHz)

40.0

Insertion Loss (dB)

0.30

Isolation (dB)

20

VSWR

NA
