Ferrite Devices OISC-42

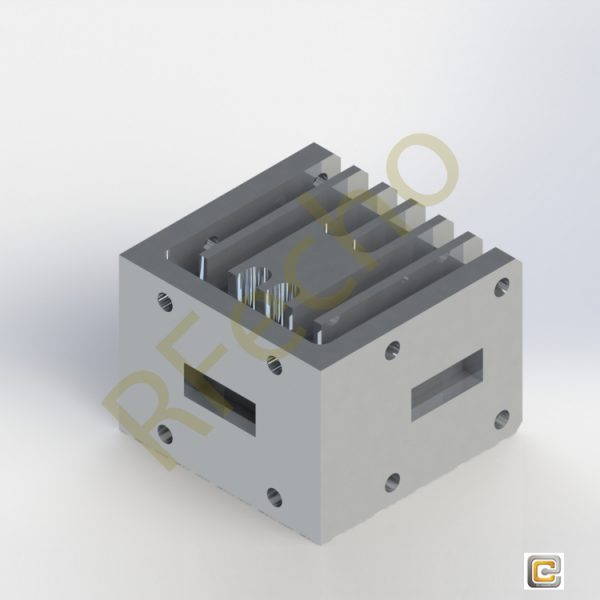

Model OISC-42 is a K band,waveguide junction circulator that covers the frequency range of 18 to 26.5GHz.
The full band circulator is designed andmanufactured to provide a low insertion loss of 0.3dB typical with good flatness. The circulator also offers a moderate isolation of 20dBfor system integration.
The input and output ports are WR-42 waveguides with UG-595/U flanges.
- Description
- Additional information
Description
SPEC
|
Ferrite Devices |
|||
|
|
|||
|
Model OISC-42 is a K band, waveguide junction circulator that covers the frequency range of 18 to 26.5GHz.The full band circulator is designed and manufactured to provide a low insertion loss of 0.3dB typical with good flatness.
The circulator also offers a moderate isolation of 20dBfor system integration. The input and output ports are WR-42 waveguides with UG-595/U flanges.
Features Low Insertion Loss Moderate Isolation Compact Configuration
|
Applications Port Isolation Module Integration |
||
|
Part No. |
OISC-42 |
||
|
RF Frequency Range(GHz) |
18-26.5 |
||
|
Insertion Loss(dB) |
0.4 |
||
|
Isolation(dB) |
20 |
||
|
Return Loss |
20 |
||
|
Forward Power Handling(W) Specification Temperature Operating Temperature |
25 +25 °C -40°C~+85 °C |
||
|
|
|
||

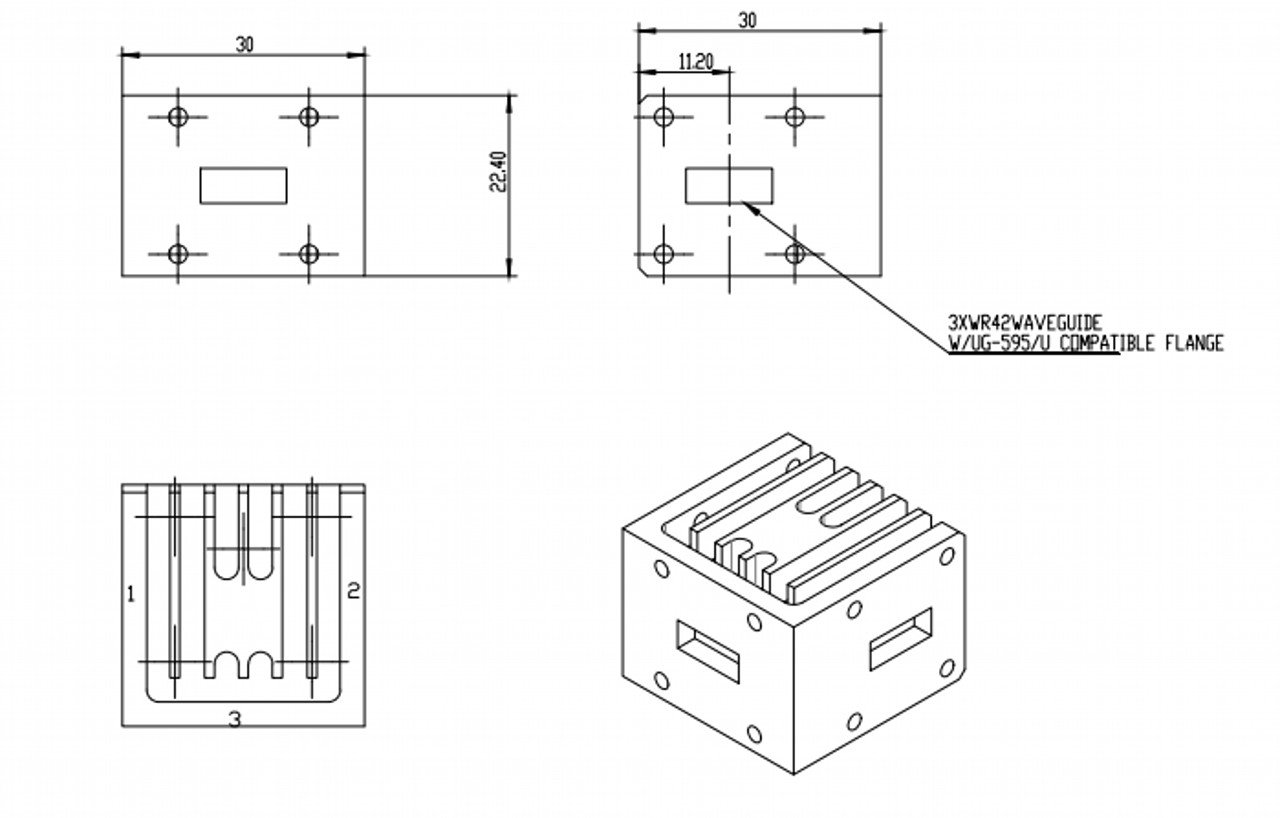

Outline

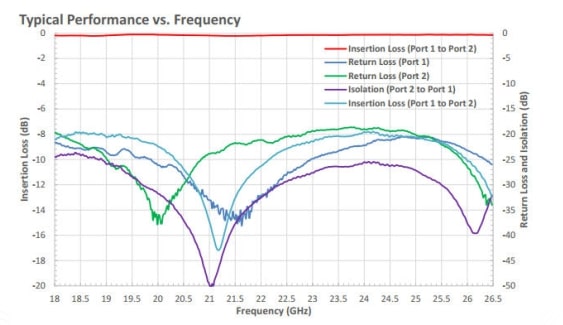

Plot
