Ferrite Devices OISC-590610-10-16-15

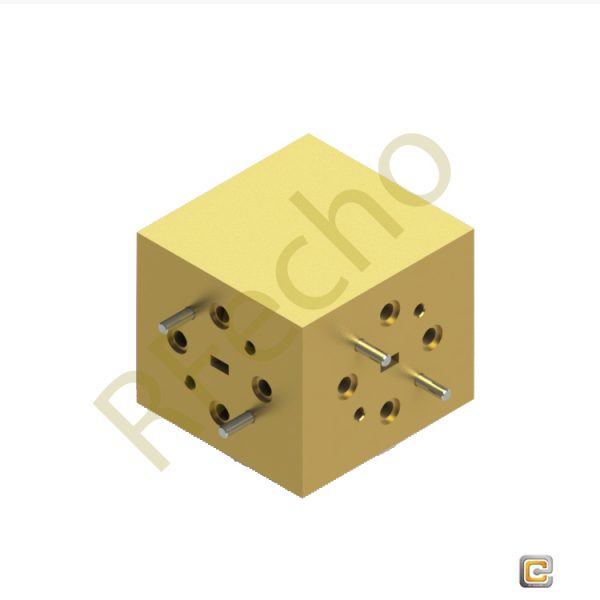

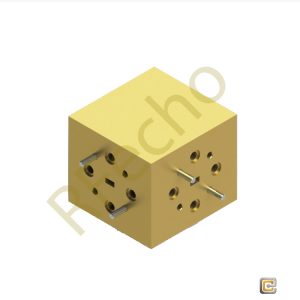

Model OISC-590610-10-16-15 is a V band waveguide junction circulator that covers the frequency range of 59 to 61 GHz.
The waveguide junction circulator is designed and manufactured toprovide a low insertion loss of 1.0 dB nominal, a typical isolation of16 dB, and a much shorter insertion length for system integration.
The input and output ports are WR-15 waveguides with UG-385/Uflanges.
- Description
- Additional information
Description
SPEC
|
Ferrite Devices |
|||
|
|
|||
|
Model OISC-590610-10-16-15 is a V band waveguide junction circulator that covers the frequency range of 59 to 61 GHz. The waveguide junction circulator is designed and manufactured to provide a low insertion loss of 1.0 dB nominal, a typical isolation of 16 dB, and a much shorter insertion length for system integration. The input and output ports are WR-15 waveguides with UG-385/U flanges.
Features Low Insertion Loss Moderate Isolation Compact Configuration |
Applications Port Isolation Module Integration |
||
|
Part No. |
OISC-590610-10-16-15 |
||
|
RF Frequency Range(GHz) |
59-61 |
||
|
Insertion Loss(dB) |
1.0 |
||
|
Isolation(dB) |
16 |
||
|
VSWR |
1.4:1 |
||
|
Forward Power Handling(W) Reverse Power Handling(W)
|
3(CW) 1(CW)
|
||
|
|
|
||

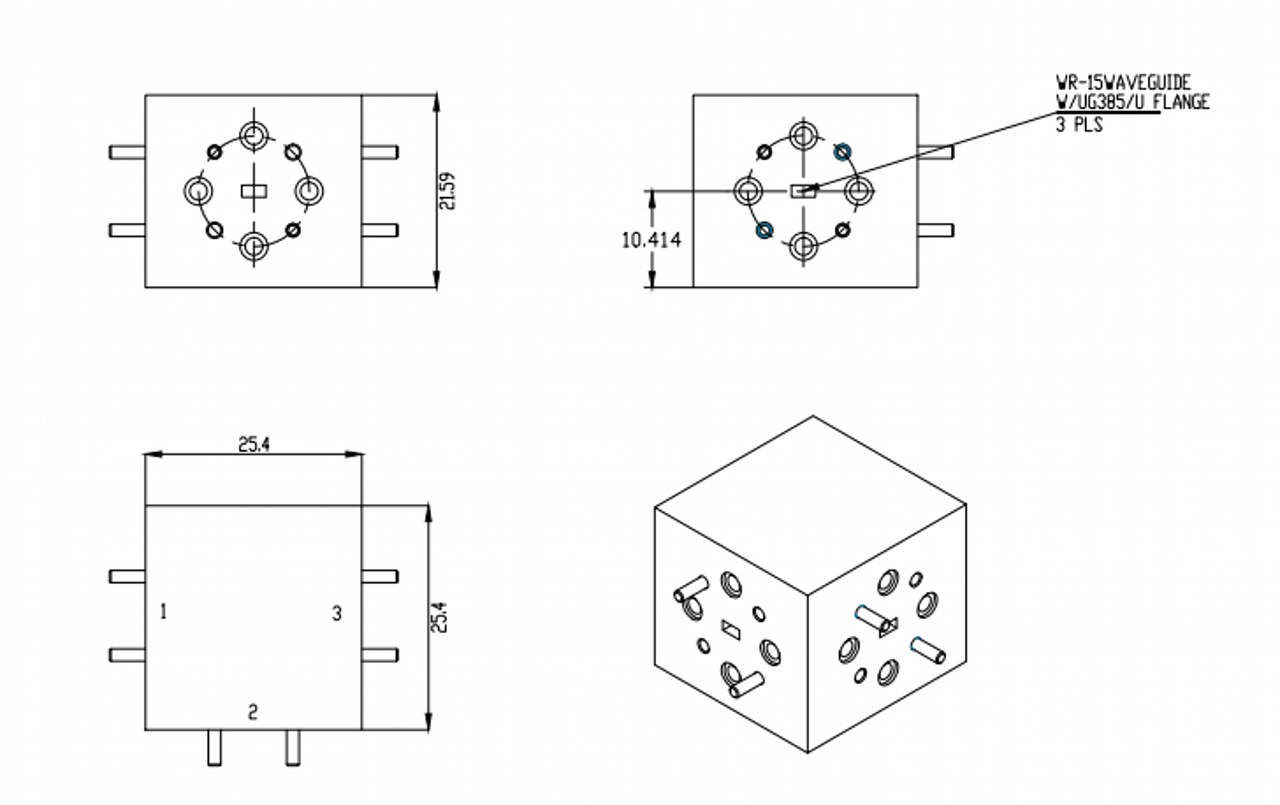

Outline
