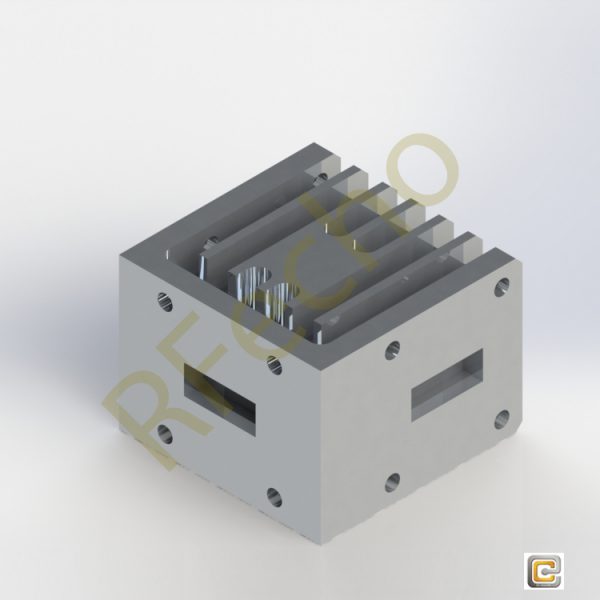

Model OISC-62-H is a Ku band,waveguide junction circulator that coversthe frequency range of 12 to18GHz.
The full band circulator is designed andmanufactured to provide a low insertion loss of 0.25 dB typical with goodflatness. The circulator also offers a moderate isolation of 20dB for systemintegration and a high powerhandling.
The input and output ports are WR-62waveguides with UG-419/U flanges.

SKU: OISC-62-H Categories: Ferrite Devices, Routing

Description

SPEC

Ferrite Devices



Model OISC-62-H is a Ku band, waveguide junction circulator that covers the frequency range of 12 to18GHz. The full band circulator is designed and manufactured to provide a low insertion loss of 0.25 dB typical with good flatness.



 The circulator also offers a moderate isolation of 20dB for system integration and a high power handling. The input and output ports are WR-62 waveguides with UG-419/U flanges



Features

Low Insertion Loss

Moderate Isolation

Compact Configuration

.



Applications

Port Isolation

Module Integration

Part No.

OISC-62-H

RF Frequency Range(GHz)

12-18

Insertion Loss(dB)

    0.25

Isolation(dB)

    20

VSWR

   1.15:1

Forward Power Handling(W)

Specification Temperature

Operating Temperature

200(Max)

+25 °C

-25°C~+60 °C





PDF

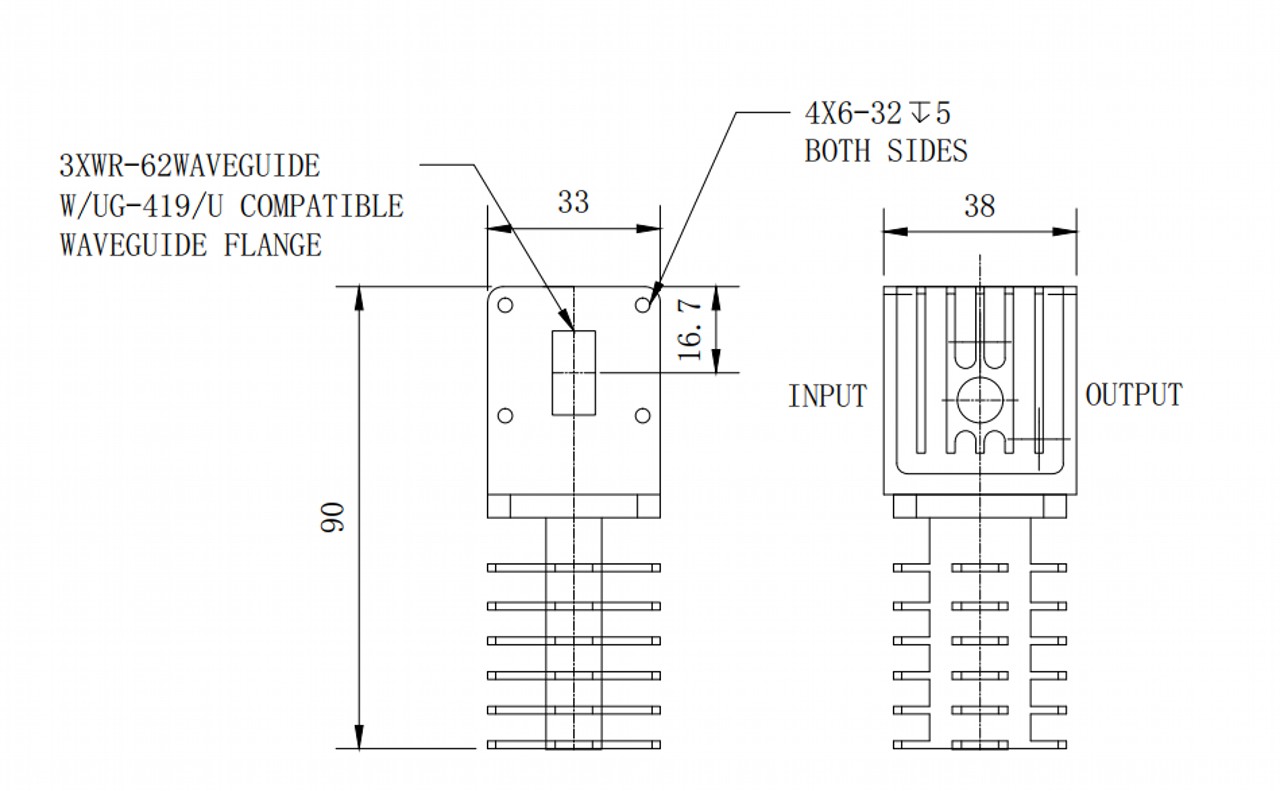

Outline

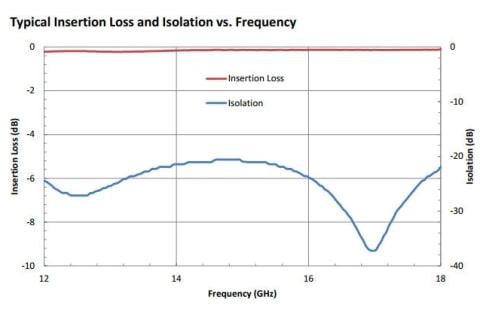

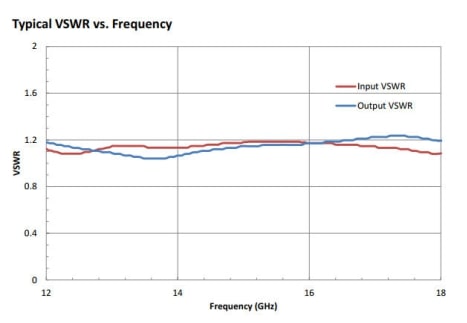

Plot

Additional information

Min. Frequency (GHz)

12.4

Max. Frequency (GHz)

18

Insertion Loss (dB)

0.25

Isolation (dB)

20

VSWR

1.15:1
