Ferrite Devices OISC-640660-07-18-15

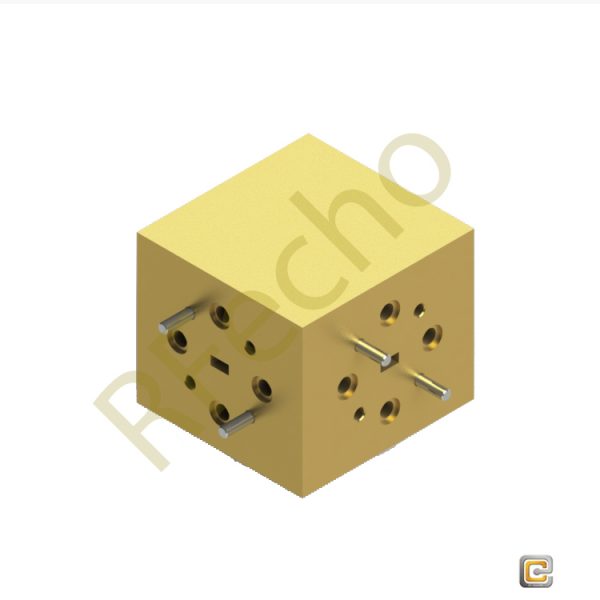

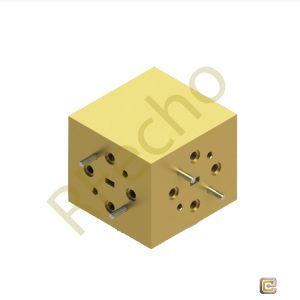

Model OISC-640660-07-18-15 is a V band waveguide junction circulator that covers the frequency range of 64 to 66 GHz.
The waveguide junction circulator is designed and manufactured toprovide a low insertion loss of 0.7 dB nominal, a typical isolation of18 dB, and a much shorter insertion length for system integration.
The input and output ports are WR-15 waveguides with UG-385/Uflanges.

Add to Wishlist
Add to Wishlist
SKU: OISC-640660-07-18-15 Categories: ,
Get a Quote
Description

SPEC

Ferrite Devices



Model OISC-640660-07-18-15 is a V band waveguide junction circulator that covers the frequency range of 64 to 66 GHz. The waveguide junction circulator is designed and manufactured to provide a low insertion loss of 0.7 dB nominal, a typical isolation of 18 dB, and a much shorter insertion length for system integration. The input and output ports are WR-15 waveguides with UG-385/U flanges.



Features

Low Insertion Loss

Moderate Isolation

Compact Configuration





Applications

Port Isolation

Module Integration

Part No.

OISC-640660-07-18-15

RF Frequency Range(GHz)

64-66

Insertion Loss(dB)

    0.7

Isolation(dB)

    18

VSWR

    1.3:1

Forward Power Handling(W) Reverse Power Handling(W)



3(CW)

1(CW)







PDF

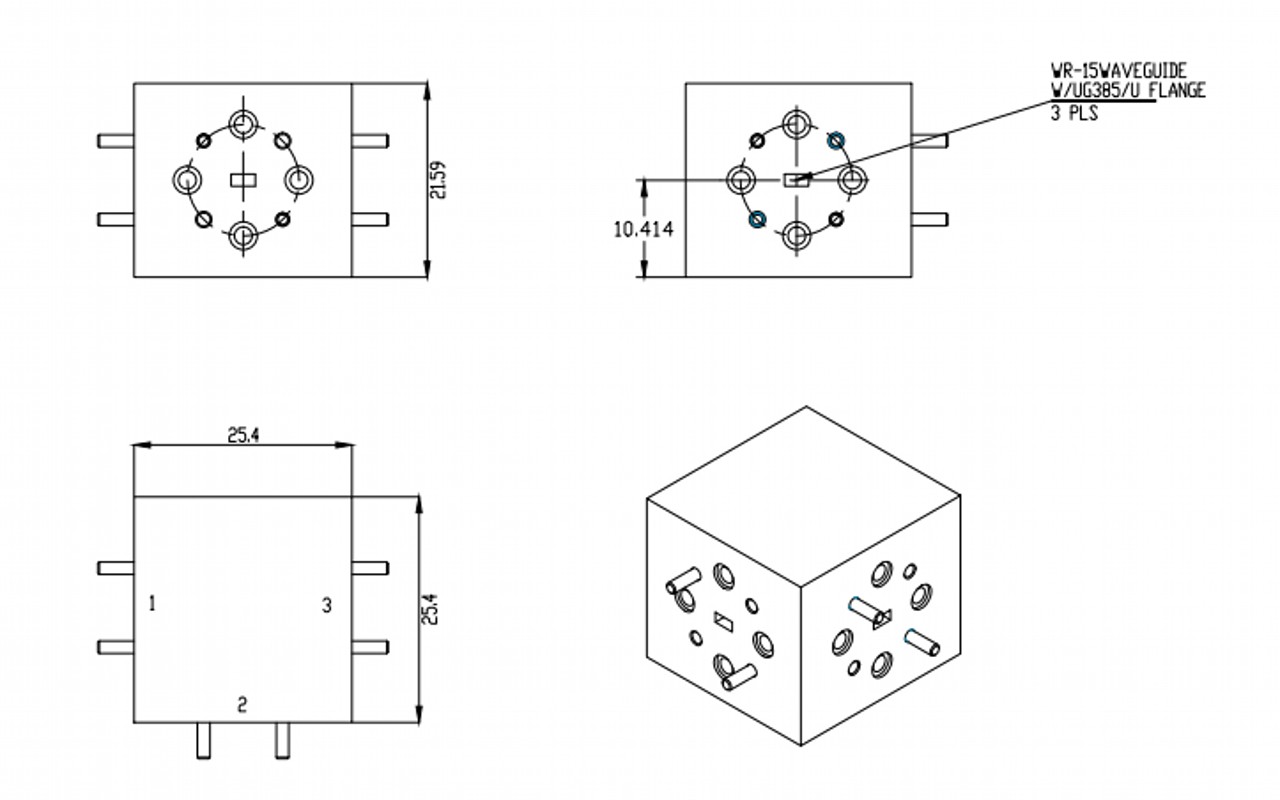

Outline

Plot

Additional information
Product Code

OISC-640660-07-18-15

Min Freq. (GHz)

64.0

Max Freq. (GHz)

66.0

Insertion Loss (dB)

0.70

Isolation (dB)

18

VSWR

1.3:1
