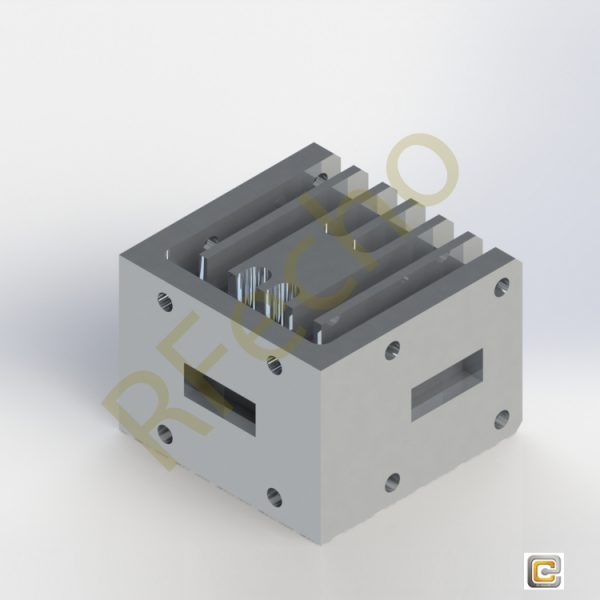

Ferrite Devices OISC-90-H
Model OISC-90-H is an X band,waveguide junction circulator that covers the frequency range of 8 to12.4GHz.
The full band circulator is designed andmanufactured to provide a low insertion loss of 0.25dB typical with goodflatness. The circulator also offers a moderate isolation of 21dBfor systemintegration and a high power handling.
The input and output ports are WR-90 waveguides with UG-39/U flanges.
- Description
- Additional information
Description
SPEC
|
Ferrite Devices |
|||
|
|
|||
|
Model OISC-90-H is an X band, waveguide junction circulator that covers the frequency range of 8 to12.4GHz. The full band circulator is designed and manufactured to provide a low insertion loss of 0.25dB typical with good flatness.
The circulator also offers a moderate isolation of 21dBfor system integration and a high power handling. The input and output ports are WR-90 waveguides with UG-39/U flanges
Features Low Insertion Loss Moderate Isolation Compact Configuration. |
Applications Port Isolation Module Integration Instrumentation |
||
|
Part No. |
OISC-90-H |
||
|
RF Frequency Range(GHz) |
8-12.4 |
||
|
Insertion Loss(dB) |
0.25 |
||
|
Isolation(dB) |
21 |
||
|
VSWR |
1.15:1 |
||
|
Forward Power Handling(W) Specification Temperature Operating Temperature |
250(Max) +25 °C -10°C~+55 °C |
||
|
|
|
||

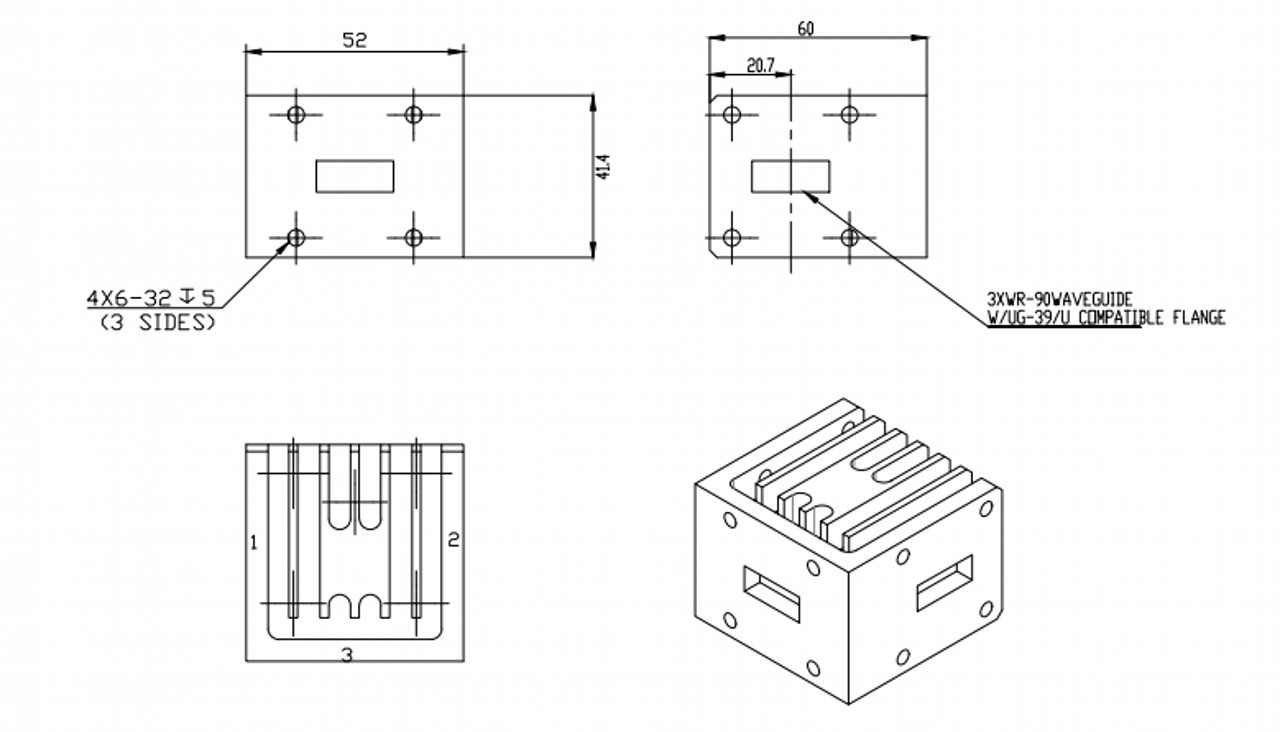

Outline

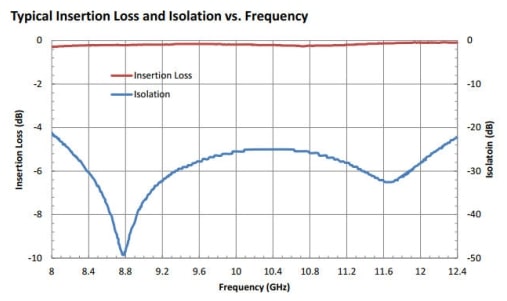

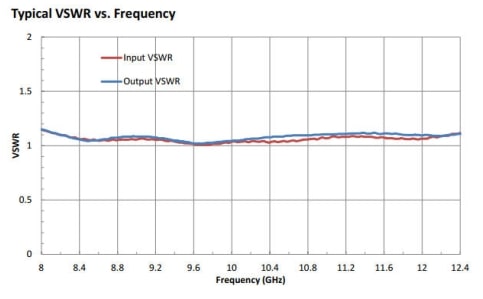

Plot
