Ferrite Devices OISF-28-S

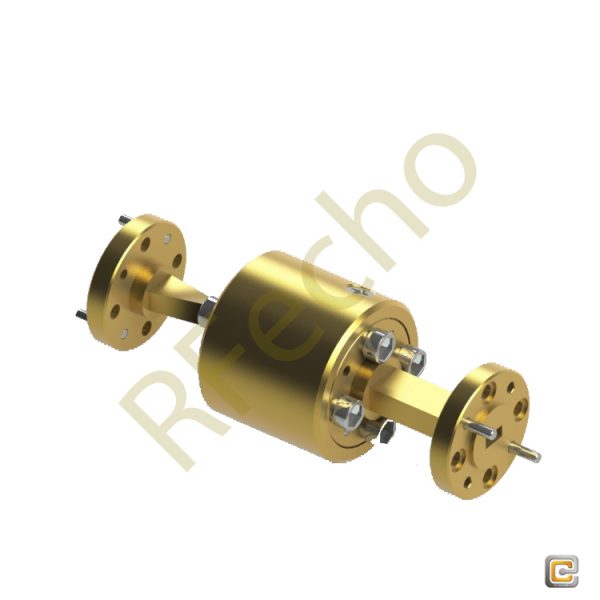

Model OISF-28-S is a full band Faraday isolator that operates from 26.5 to 40 GHz.
The Faraday isolator is constructed with a longitudinal, magnetized ferrite rod that causes a Faraday rotation of the incoming RF signal.
The Faraday isolator offers 30 dB typical isolation and a 1.2 dB nominal insertion loss with good flatness. The return loss of the isolator is 14 dB.
The input and output ports have WR-28 waveguides with UG-599/U flanges.
- Description
- Additional information
Description
SPEC
|
Ferrite Devices |
||||
|
|
||||
|
Model OISF-28-Sis a full band Faraday isolator that operates from 26.5 to 40 GHz. The Faraday isolator is constructed with a longitudinal, magnetized ferrite rod that causes a Faraday rotation of the incoming RF signal. The Faraday isolator offers 30 dB typical isolation and a 1.2 dB nominal insertion loss with good flatness. The return loss of the isolator is 14dB. The input and output ports have WR-28 waveguides with UG-599/U flanges.
Features Low Insertion Loss Moderate Isolation Compact Configuration |
Applications Port Isolation Module Integration |
|||
|
Part No. |
OISF-28-S |
|||
|
RF Frequency Range(GHz) |
26.5-40 |
|||
|
Insertion Loss(dB) |
1.2 |
|||
|
Isolation(dB) |
30 |
|||
|
Return Loss(dB) |
14 |
|||
|
Power Handling(W) Specification Temperature Operating Temperature |
1.8(CW) +25 °C -40°C~+85 °C |
|||
|
|
|
|||

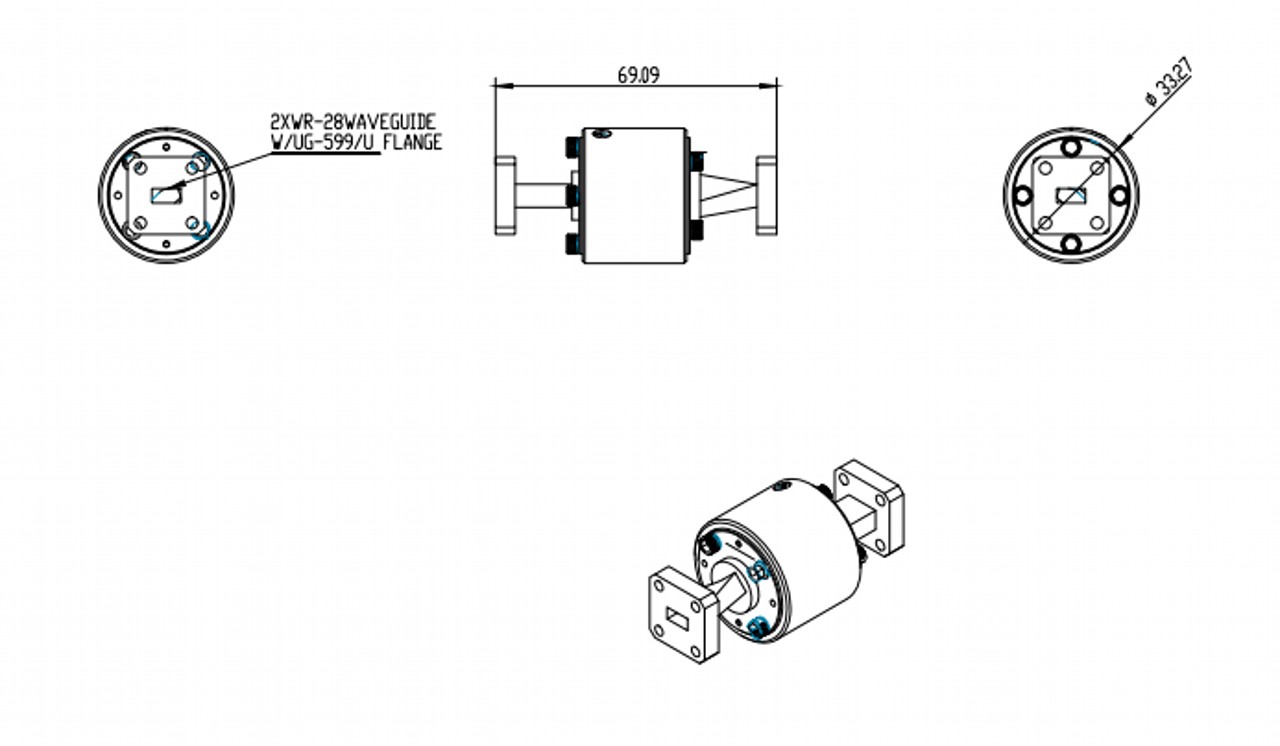

Outline

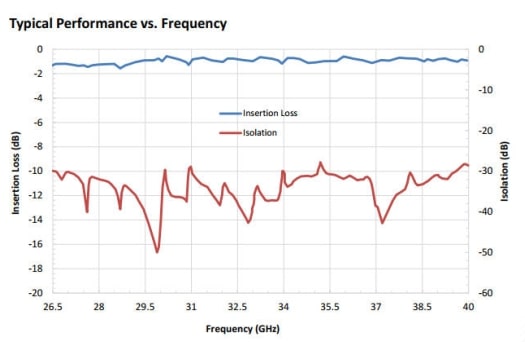

Plot
