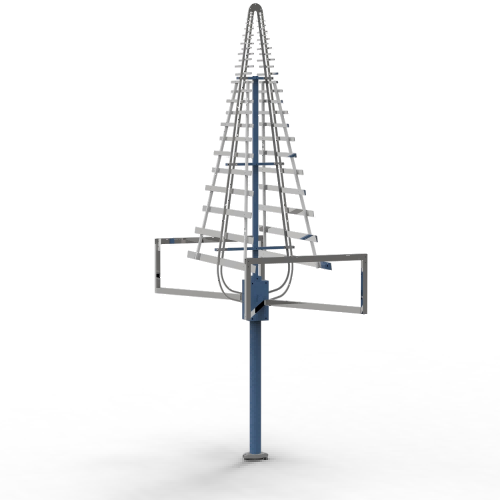

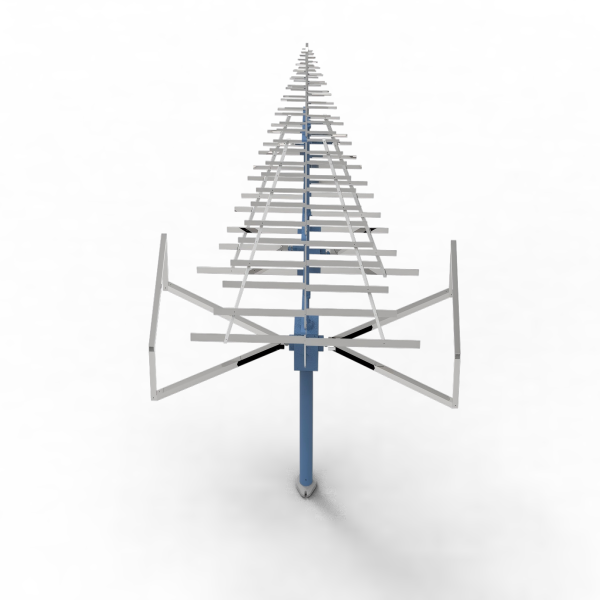

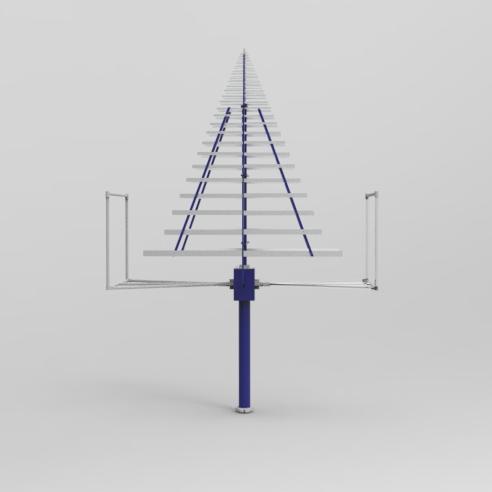

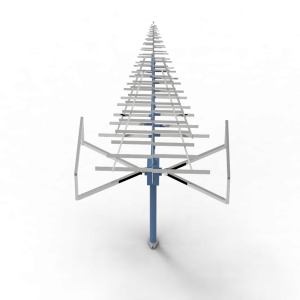

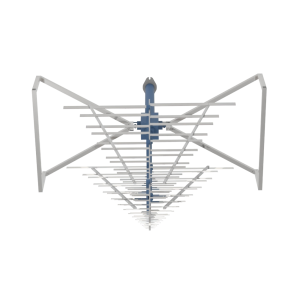

High-Performance Log-Periodic Antenna OVLP-00330
The OVLP00330 is a high-performance log-periodic antenna, designed for emission measurement and immunity tests, operating in a wide frequency range from 30 MHz to 3000 MHz. This design helps reduce measurement times since users do not need to change antennas during the process. With symmetry of radiation patterns across the E, H plane and matching (VSWR), the OVLP00330 is also commonly used in EMS measurements where field strengths of 10V/m or higher are required. This model integrates the characteristics of both biconical and log -periodic antenna. Typically, the V-shaped part of the antenna guarantee to increase gain and achieve an almost rotation- symmetrical radiation pattern. It features a compact size and light weight construction, making it easy to handle and install, while its high gain and low antenna factor are also another key strength to improve the performance of the antenna.
- Description
Description
SPEC
|
|
|
|
High-Performance Log-Periodic Antenna OVLP-00330 |
|
|
OVLP-00330 |
|
|
The OVLP00330 is a high-performance log-periodic antenna, designed for emission measurement and immunity tests, operating in a wide frequency range from 30 MHz to 3000 MHz. This design helps reduce measurement times since users do not need to change antennas during the process. With symmetry of radiation patterns across the E, H plane and matching (VSWR), the OVLP00330 is also commonly used in EMS measurements where field strengths of 10V/m or higher are required. This model integrates the characteristics of both biconical and log -periodic antenna. Typically, the V-shaped part of the antenna guarantee to increase gain and achieve an almost rotation- symmetrical radiation pattern. It features a compact size and light weight construction, making it easy to handle and install, while its high gain and low antenna factor are also another key strength to improve the performance of the antenna. |
|
|

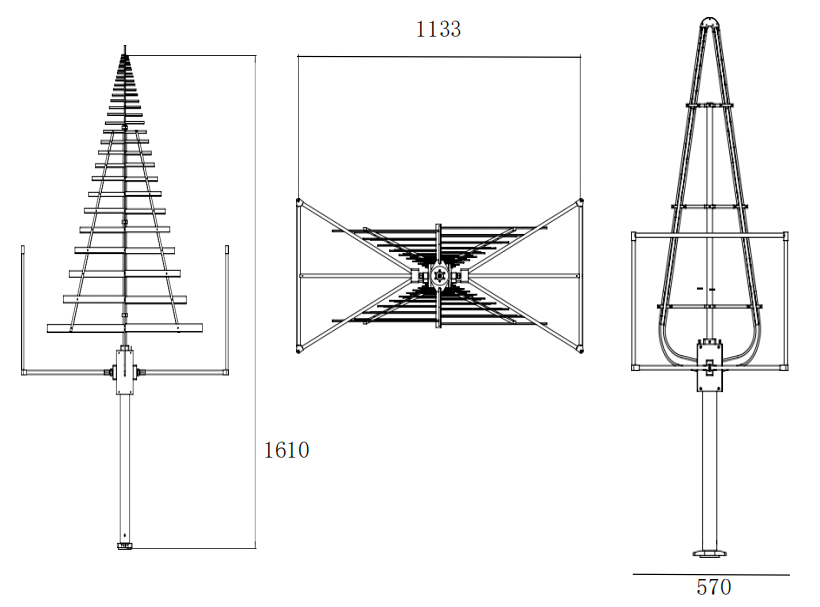

Property |
Value |
|
Frequency Range |
30MHz∼3GHz |
|
Polarization |
linear |
|
Max InputPower(W) |
225 W |
|
RF connector |
N female |
|
Nominal impedance |
50Ohm |
|
Gain(dBi) |
8.5 dBi (typ.) |
|
VSWR |
< 2 (typ.) |
|
Features |
|
|
Wide bandwidth from 30MHz to 3GHz. |
|
|
High gain of 8dBi above 200MHz. |
|
|
Detailed calibration data with 533 points. |
|
|
Applications |
|
|
Satellite communication. |
|
|
EMC measurements. |
|
|
Directional radio communication. |
|

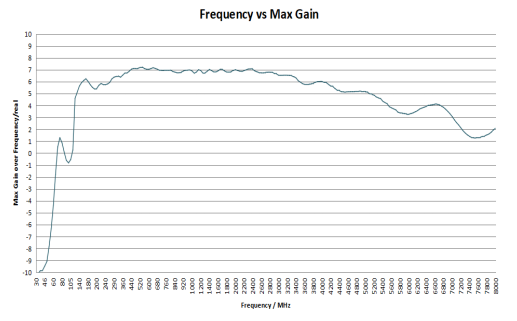

Frequency vs Max Gain

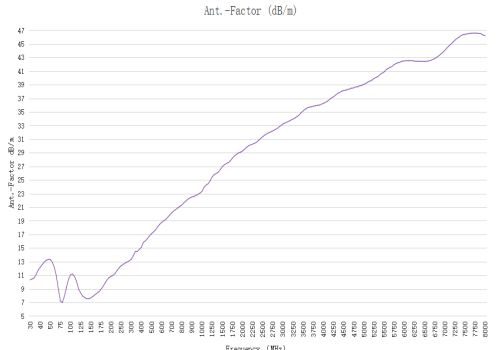

Ant.-Factor(dB/m)
