High-Performance Log-Periodic Antenna OVLP-00830

High-Performance Log-Periodic Antenna OVLP-00830

OVLP00830

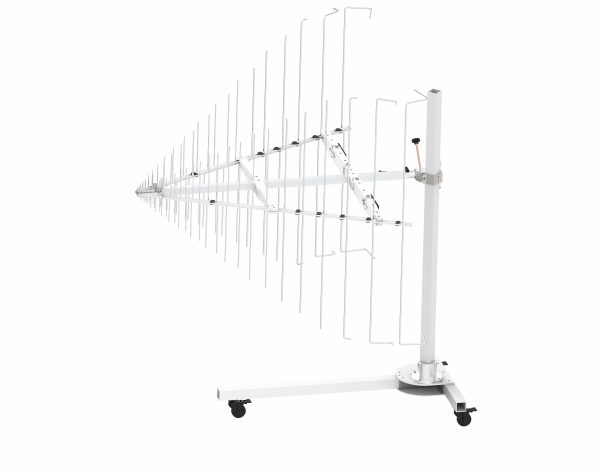

OVLP0830 isahighgainstackedlog-periodicantenna, offeringa wide frequency range from 80MHz to 3 GHz. This design is perfectly suitable for EMS immunity since it features excellent broadband characteristics and an almost rotation-symmetrical radiation pattern.Additionally, its high gain enables this antenna to receive necessary field strengths with significantly lower amplifier power compared toother systems.With a compact size design, the OVLP0830 is light weight, making it ideal for use intest chambers.Another key feature of this model is its advanced polarization adjustment, allow in gusersto effort lessly adjust the polarization from E-planeto H plane, providing quick and efficient polarization transformation.Moreover, with adjustable width of the antenna, users are able to control the beamwidth and strength of the signal.

Property

Value

Frequency Range

80 MHz∼3 GHz

Polarization

linear

Max input Power(W)

250W 3000MHz , 1400W 80MHz

RF connector

N female

Input impedance

50 Ohm

Pratical Gain

typ. > 8 dBi

VSWR

< 2500MHz <2, ≥2500 <2.5

Features

Wide bandwidth from 80MHz to 3 GHz.

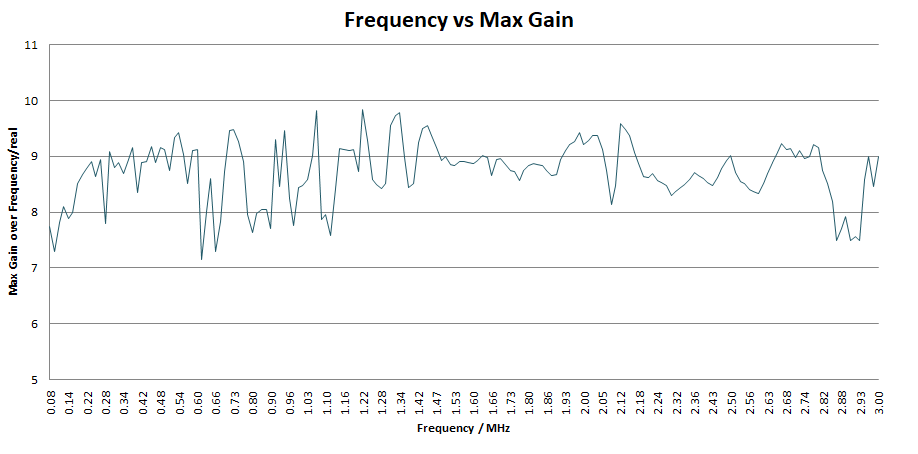

High gain of 8dBi above 200MHz.

Detailed calibration data with 533 points.

Applications

Satellite communication.

EMC measurements.

Directional radio communication.
