Name: HSA Handheld Spectrum Analyzer Frequency Range:9kHz&sim;1.8GHz
SKU: HSA818
Price: 1690 USD
Availability: InStock

HSA Handheld Spectrum Analyzer Frequency Range:9kHz∼1.8GHz

0 out of 5

$1690

The HSA818 series spectrum analyzer is designed specifically for on-site operations. It is lightweight and portable,fast and accurate, sturdy and durable, and has multi measurement functions,It is the perfect choice for those who seeking excellent performance and value. The product features a high brightness 6.5-inch screen, with a dynamic appearance and display clearly. It has a large-capacity Li-battery, continuous working time of up to4 hours, and a push-cover battery compartment that is convenient to replace at any time, with unlimited expansion of work time.Optional accessories such as built-in tracking sources.amplifier, field strength measurements, GPS/BD navigation measurements, and antenna transmission line tests can quickly and reliably solve a variety of routine measurement tasks, and adapt to demanding and complex environmental requirements,The USB and LAN communication interfaces can achieve remote control. Using the standard SCPI command set, it can quickly build and upgrade integrated test systems, and is convenient for users to measure and use.

SKU: HSA818 Categories: Active Device, Spectrum, Testing Instrument

Description
Additional information

Description

SPEC

Spectrum Analyzer
HSA Handheld Spectrum Analyzer Frequency Range:9kHz∼1.8GHz
HSA818
The HSA818 series spectrum analyzer is designed specifically for on-site operations. It is lightweight and portable,fast and accurate, sturdy and durable, and has multi measurement functions,It is the perfect choice for those who seeking excellent performance and value. The product features a high brightness 6.5-inch screen, with a dynamic appearance and display clearly. It has a large-capacity Li-battery, continuous working time of up to4 hours, and a push-cover battery compartment that is convenient to replace at any time, with unlimited expansion of work time.Optional accessories such as built-in tracking sources.amplifier, field strength measurements, GPS/BD navigation measurements, and antenna transmission line tests can quickly and reliably solve a variety of routine measurement tasks, and adapt to demanding and complex environmental requirements,The USB and LAN communication interfaces can achieve remote control. Using the standard SCPI command set, it can quickly build and upgrade integrated test systems, and is convenient for users to measure and use.
Property	Value
Frequency Range	9kHz∼1.8GHz
Display	6.5-Inch
Phase Noise（@10kHz,f=1GHz）	HSA818:≤-90dBc/Hz
Noise Level	<-160dBm
Model Type	Handheld
Power	7.4V 600mAh
Dimensions	290mm ×186mm ×66mm
Features
Specialized transient detection
Spectrogram, Channel Measurement, Frequency Counting, Audio Demodulation, Pass-Fail Test
Long endurance up to 4 hours
Applications
It can be widely used in various fields such as communication, radio and television broadcasting, radio management, electronic detection and countermeasures, precision guidance, and is also the best choice for university teaching.

Datasheet

Characteristics

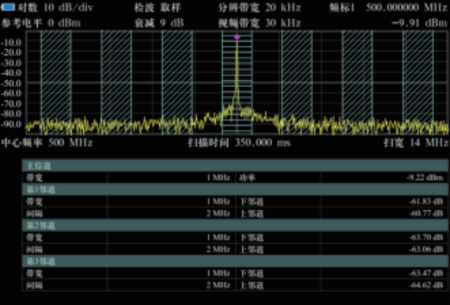

Adjacent Channel Power Measurement

Adjacent Channel Power Measurement function presents themain channel power and the adjacent channel power simultaneously in a tabular format, thereby revealing the adjacent channelpower ratio.

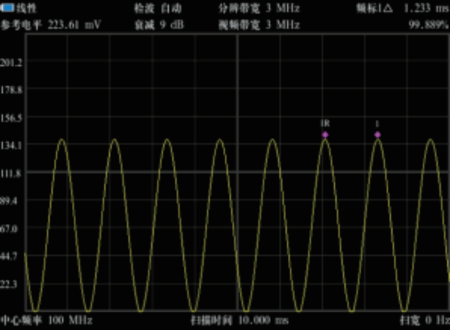

Audio demodulation and radio monitoring

F/AM demodulation and broadcasts monitoring from variousradio stations

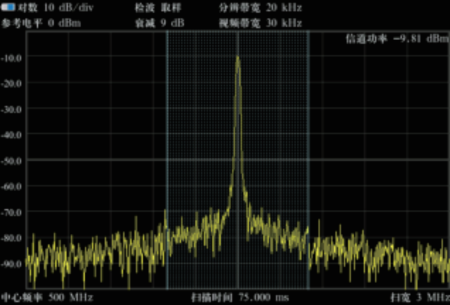

Channel Power Measurement

The HSA is capable of quickly and conveniently measuring thepower within a specified channel frequency range, which isreferred to as the channel power.

Efficient Ul

Clear and bright trace lines, easy operation.

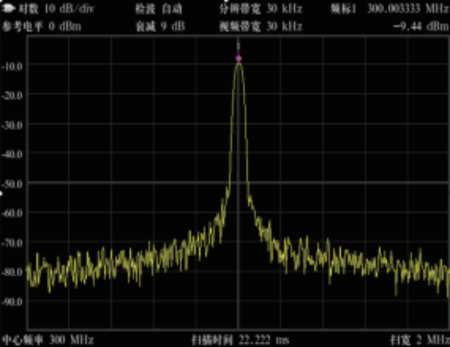

Frequency Counting Measurement

Displays the precise frequency of the frequency point with thehighest energy at the current cursor position, resulting in moreaccurate frequency measurements.

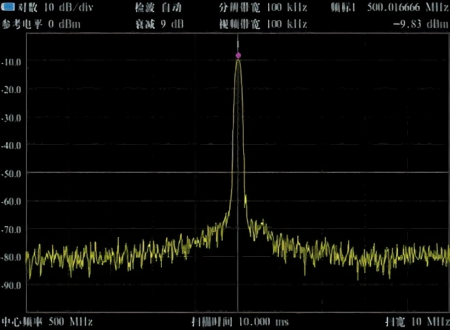

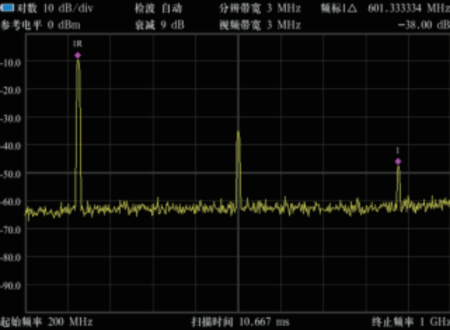

Harmonic Distortion Measurement

Utilizing the difference between the “Peak” and frequencymarker, in conjunction with the “Next Peak”, “Left Peak”, and”Right Peak” , directly reads out the amplitude difference betweenthe specified harmonic and the signal.

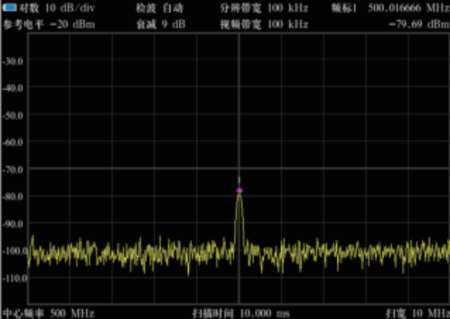

Small Signal Measurement

Measuring small signals (e.g., -80dBm), operations such as reducingthe span width, enabling the pre-amplifier, increasing resolution, anddecreasing attenuation can be performed to make the measurementresults more accurate.

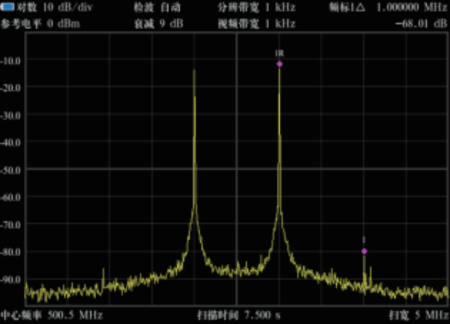

Third-order Intermodulation Measurement

Place the frequency marker on the signal, set the marker to differentialmode. Move the marker to the third-order intermodulationsignal, andthe displayed difference at this point is the measurement result.

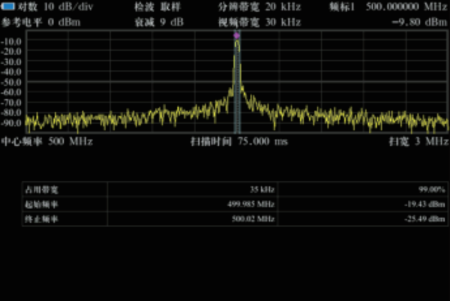

Occupied Bandwidth Measurement

Measurement of the ratio of in-band power to the total poweracross the frequency span.

Additional information

Frequency Range	9kHz∼1.8GHz
Display	6.5-Inch
Phase Noise（@10kHz,f=1GHz）	HSA818:≤-90dBc/Hz
Model Type	Handheld
Power	7.4V 600mAh
Dimensions	290mm ×186mm ×66mm
