The HSA820 series spectrum analyzer is designed specifically for on-site operations. It is lightweight and portable,fast and accurate, sturdy and durable, and has multi measurement functions,It is the perfect choice for those who seeking excellent performance and value. The product features a high brightness 6.5-inch screen, with a dynamic appearance and display clearly. It has a large-capacity Li-battery, continuous working time of up to 4 hours, and a push-cover battery compartment that is convenient to replace at any time, with unlimited expansion of work time.Optional accessories such as built-in tracking sources.amplifier, field strength measurements, GPS/BD navigation measurements, and antenna transmission line tests can quickly and reliably solve a variety of routine measurement tasks, and adapt to demanding and complex environmental requirements,The USB and LAN communication interfaces can achieve remote control. Using the standard SCPI command set, it can quickly build and upgrade integrated test systems, and is convenient for users to measure and use.

SKU: HSA820 Categories: Active Device, Spectrum, Testing Instrument
Add to Wishlist

Description

Spectrum Analyzer

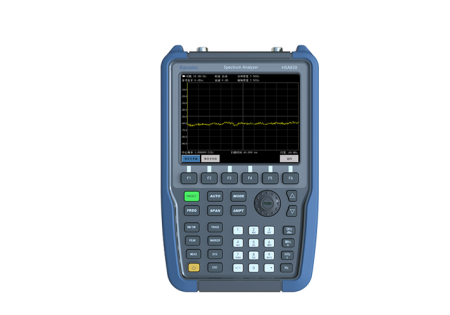

HSA Handheld Spectrum Analyzer
Frequency Range:9kHz∼2.5GHz

HSA820

The HSA820 series spectrum analyzer is designed specifically for on-site operations. It is lightweight and portable,fast and accurate, sturdy and durable, and has multi measurement functions,It is the perfect choice for those who seeking excellent performance and value. The product features a high brightness 6.5-inch screen, with a dynamic appearance and display clearly. It has a large-capacity Li-battery, continuous working time of up to 4 hours, and a push-cover battery compartment that is convenient to replace at any time, with unlimited expansion of work time.Optional accessories such as built-in tracking sources.amplifier, field strength measurements, GPS/BD navigation measurements, and antenna transmission line tests can quickly and reliably solve a variety of routine measurement tasks, and adapt to demanding and complex environmental requirements,The USB and LAN communication interfaces can achieve remote control. Using the standard SCPI command set, it can quickly build and upgrade integrated test systems, and is convenient for users to measure and use.

Property

Value

Frequency Range

9kHz∼2.5GHz

Display

6.5-Inch

Phase Noise（@10kHz,f=1GHz）

HSA820:≤-90dBc/Hz

Noise Level

<-160dBm

Model Type

Handheld

Power

7.4V 600mAh

Dimensions

290mm ×186mm ×66mm

Features

Specialized transient detection

Spectrogram, Channel Measurement, Frequency Counting, Audio Demodulation, Pass-Fail Test

Long endurance up to 4 hours

Applications

It can be widely used in various fields such as communication, radio and television broadcasting, radio management, electronic detection and countermeasures, precision guidance, and is also the best choice for university teaching.

Adjacent Channel Power Measurement

Adjacent Channel Power Measurement function presents themain channel power and the adjacent channel power simultaneously in a tabular format, thereby revealing the adjacent channelpower ratio.

Audio demodulation and radio monitoring

F/AM demodulation and broadcasts monitoring from variousradio stations

Channel Power Measurement

The HSA is capable of quickly and conveniently measuring thepower within a specified channel frequency range, which isreferred to as the channel power.

Efficient Ul

Clear and bright trace lines, easy operation.

Frequency Counting Measurement

Displays the precise frequency of the frequency point with thehighest energy at the current cursor position, resulting in moreaccurate frequency measurements.

Harmonic Distortion Measurement

Utilizing the difference between the “Peak” and frequencymarker, in conjunction with the “Next Peak”, “Left Peak”, and”Right Peak” , directly reads out the amplitude difference betweenthe specified harmonic and the signal.

Small Signal Measurement

Measuring small signals (e.g., -80dBm), operations such as reducingthe span width, enabling the pre-amplifier, increasing resolution, anddecreasing attenuation can be performed to make the measurementresults more accurate.

Third-order Intermodulation Measurement

Place the frequency marker on the signal, set the marker to differentialmode. Move the marker to the third-order intermodulationsignal, andthe displayed difference at this point is the measurement result.

Occupied Bandwidth Measurement

Measurement of the ratio of in-band power to the total poweracross the frequency span.
