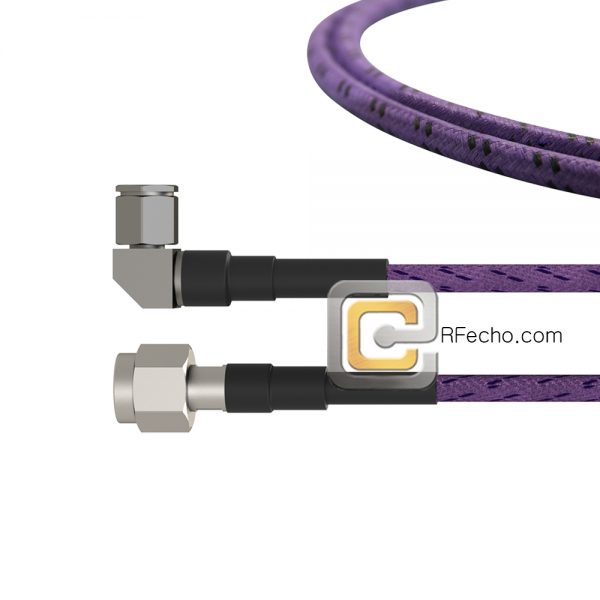

Low Loss TNC Male to Right Angle TNC Male, 11 GHz, Composite OM-141FLEX Coax and RoHS

Low Loss TNC Male to Right Angle TNC Male, 11 GHz, Composite OM-141FLEX Coax and RoHS

RF cable assembly part number F036-411S0-411R0-110-C is a low loss TNC Male to Right Angle TNC Male coaxial cable. RFecho has huge variety of coaxial cables for all types of applications including radio, antenna and interconnect with RF components. Low loss TNC Male to TNC Male cable OM-141FLEX coax and RoHS, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide.

This RFecho’s RF coaxial assembly is manufactured with TNC type cable connection on one end and a TNC type cable connection on the other end. Our type TNC cable assembly has a Male gender on end one and Male on other two. Rfecho type TNC Male to type TNC Male cable assembly F036-411S0-411R0-110-C is built with OM-141FLEX coax and it is a Flexible design. RFecho is where to buy a high-quality type TNC Male to TNC Male cable assembly for quick shipment worldwide.

RFecho also have an extensive selection of low to high frequency coaxial cables that will ship from our warehouse. Custom cable assemblies are also available on request.

SKU: F036-411S0-411R0-110-C Categories: E-Testing ECO, OM-141Flex, RF Cables

Description

PDF

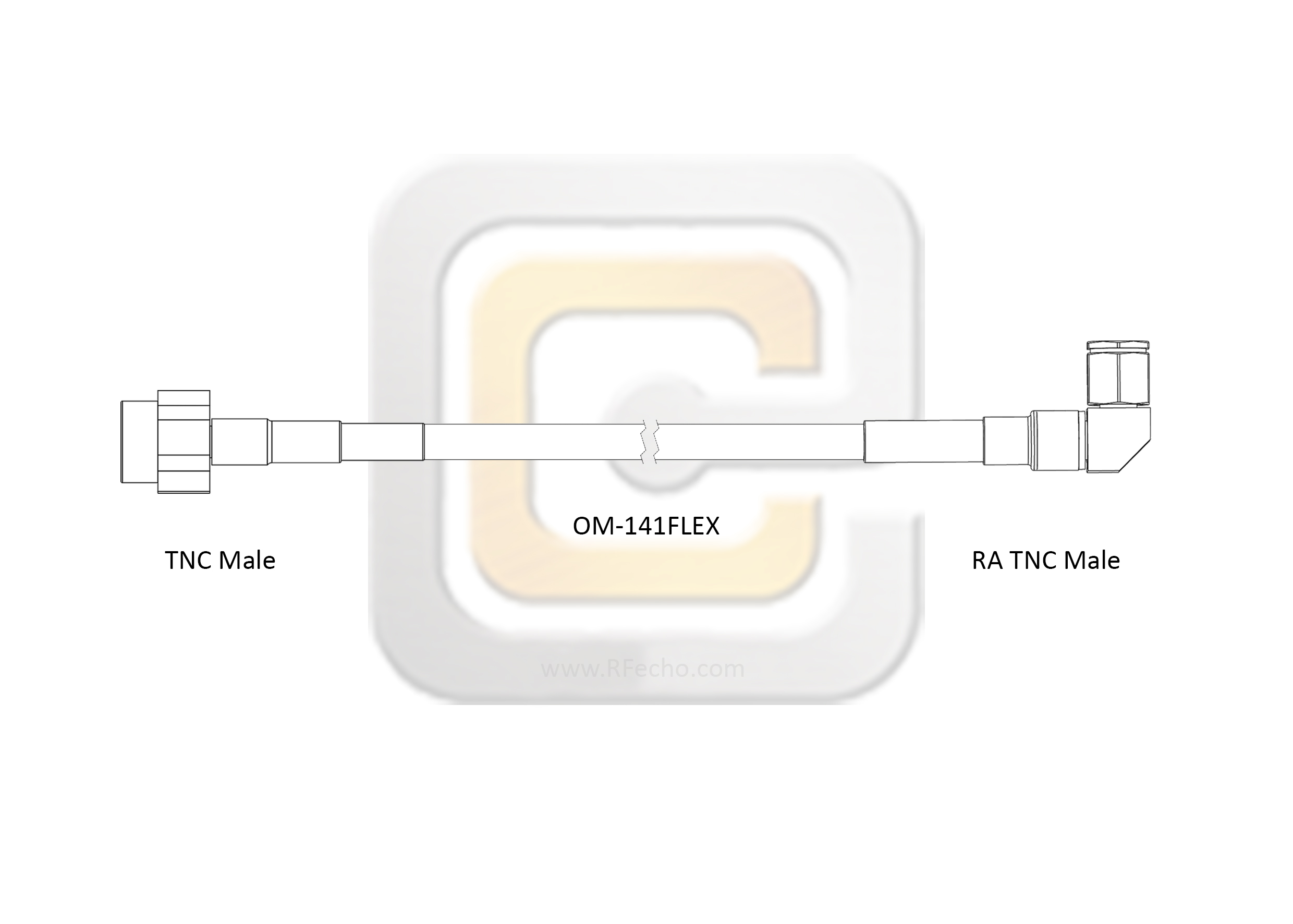

Outline

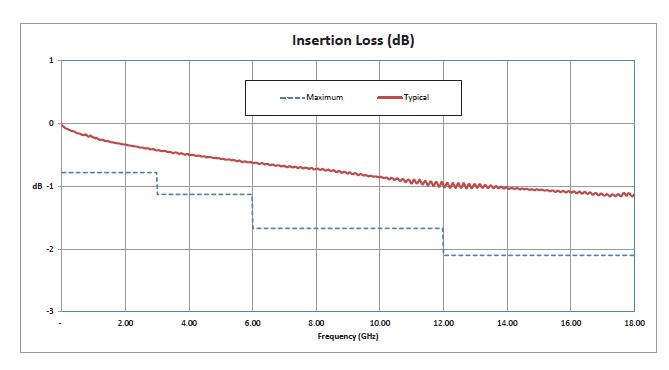

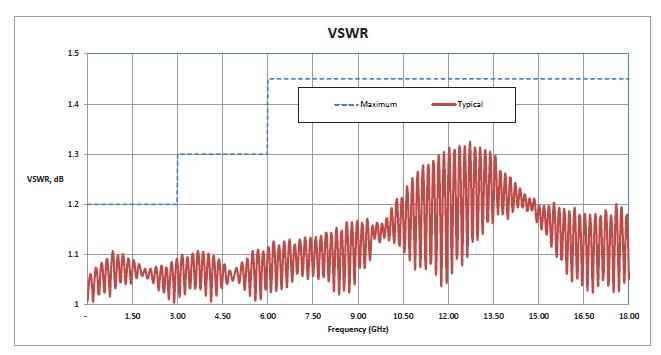

Plot

Additional information

Cable Type

OM-141FLEX

Cable Coax Type

Flexible

Cable Armour

Composite

Connector 1

TNC

Connector 1 Gender

Male

Connector 1 Body Style

Straight

Connector 1 Mounting Method

None

Connector 1 Connection Method

Standard

Connector 2

TNC

Connector 2 Gender

Male

Connector 2 Body Style

Right Angle

Connector 2 Mounting Method

None

Connector 2 Connection Method

Standard
