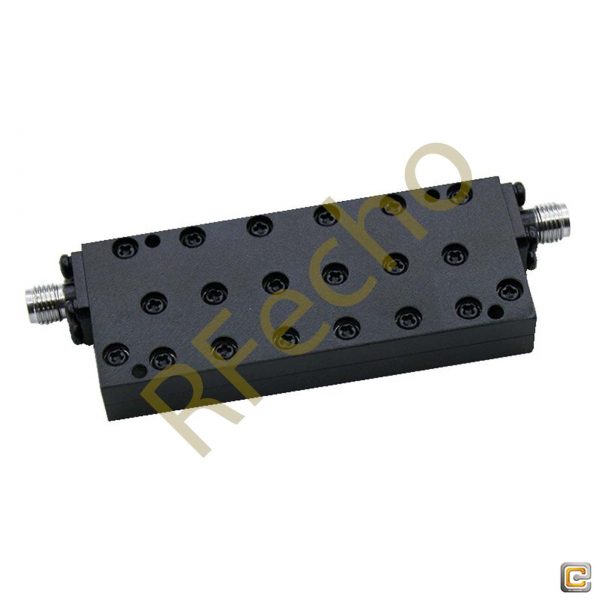

RF Low Pass Cavity Filter DC-1.25GHz Passive Low Pass Cavity Filter Rejection ≥ 60dB @ 1.52GHz-4.7GHz with SMA Female Connector

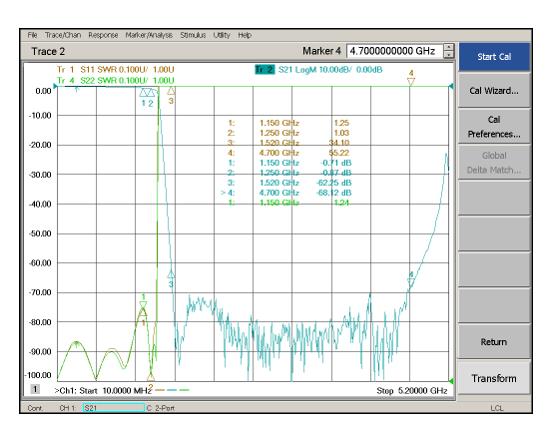

RF Low Pass Cavity Filter model OLP-1250 also known as low cut-off filter that allows signals below the cut-off frequency to pass through. This RF Low Pass Cavity Filter Manufactured with a passband frequency from DC to 1.25GHz and a rejection frequency 1.52GHz to 4.7GHz. Our Passive Low Pass Cavity Filter provides a nominal insertion loss of ≤1.0dB @ DC～1.15GHz | ≤1.5dB @ 1.15～1.25GHz across its passband and a typical rejection of ≥ 60dB. Since the high end cutoff frequency of RF Low Pass Cavity Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF Low Pass Cavity Filter has passband VSWR ≤1.3:1 and power handling of ≤15W. Passive Low Pass Cavity Filter is manufactured with SMA Female Connector and Net weight of 0.05 Kg.
DC to 1.25GHz Ocean Low Pass Cavilty filter from RFecho is just one part in a large selection of our RF Components. Our DC to 1.25GHz RF Low Pass Cavity Filter is ready for shipping worldwide after purchase. Additional specs of this Passive Low Pass Cavity Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.
