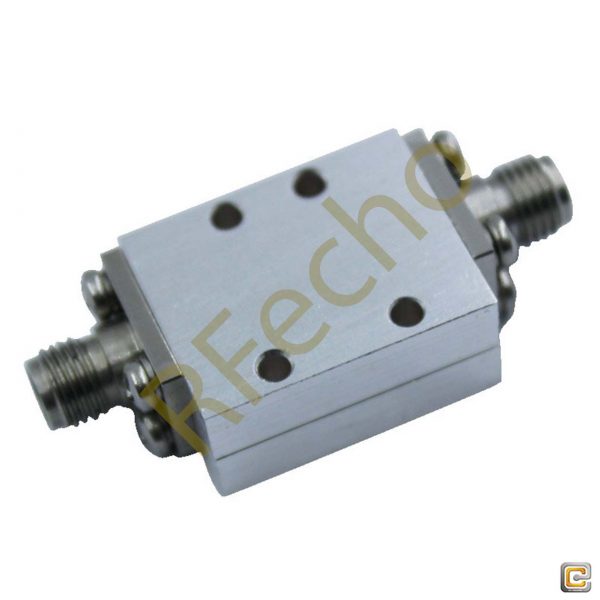

RF Cavity Low Pass Cavity Filter DC-13GHz Passive Low Pass Filter Rejection ≥ 50dB @ 14.1GHz-21GHz with SMA Female Connector

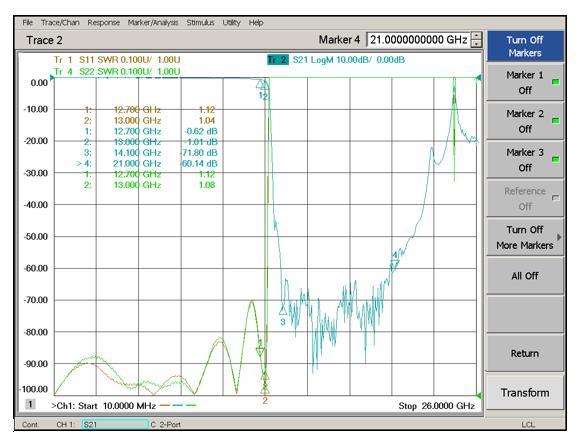

RF Cavity Low Pass Filter model OLP-13000 also known as low cut-off filter that allows signals below the cut-off frequency to pass through. This RF Cavity Low Pass Filter Manufactured with a passband frequency from DC to 13GHz and a rejection frequency 14.1GHz to 21GHz. Our Passive Low Pass Filter provides a nominal insertion loss of 1.0dB @ DC～12.7GHz | 2.0dB @ 12.7～13GHz across its passband and a typical rejection of ≥ 50dB. Since the high end cutoff frequency of RF Cavity Low Pass Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF Cavity Low Pass Filter has passband VSWR ≤1.5:1 and power handling of ≤15W. Passive Low Pass Filter is manufactured with SMA Female Connector and Net weight of 0.015 Kg. DC to 13GHz Ocean Low Pass Cavilty filter from RFecho is just one part in a large selection of our RF Components. Our DC to 13GHz RF Cavity Low Pass Filter is ready for shipping worldwide after purchase. Additional specs of this Passive Low Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.
