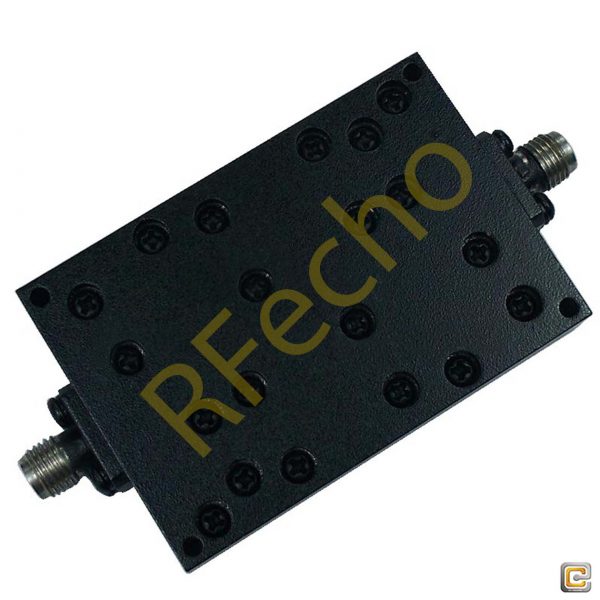

RF Passive Low Pass Filter model OLP-2000-A also known as low cut-off filter that allows signals below the cut-off frequency to pass through. This RF Passive Low Pass Filter Manufactured with a passband frequency from DC to 2.0GHz and a rejection frequency 2.3GHz to 6.0GHz. Our RF Microwave Passive Filter provides a nominal insertion loss of ≤1.0dB across its passband and a typical rejection of ≥45dB @ 2.3-6.0GHz. Since the high end cutoff frequency of RF Passive Low Pass Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF Passive Low Pass Filter has passband VSWR ≤1.4:1 @ DC~1.8 GHz and power handling of ≤10W. RF Microwave Passive Filter is manufactured with SMA Female Connector and Net weight of 0.11Kg. DC to 2.0GHz Ocean Low Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our DC to 2.0GHz RF Passive Low Pass Cavity Filter is ready for shipping worldwide after purchase. Additional specs of this RF Microwave passive Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OLP-2000-A Categories: Low Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho Low Pass Cavity Filter (abbreviation: OLP) is a filter that allows signals below the cut-off frequency to pass through, but signals above the cut-off frequency cannot pass through.



Low Pass Cavity Filter – OLP-2000-A Electrical Specifications

3dB Cut Off ≈2 GHz
1dB Pass Band DC~1.8 GHz
VSWR ≤1.4:1 @ DC~1.8 GHz
Stop Band ≥45dB @ 2.3~6 GHz
Average Power 10W
Surface Finish Black paint
Port Connectors SMA-Female
Net Weight 0.11KG

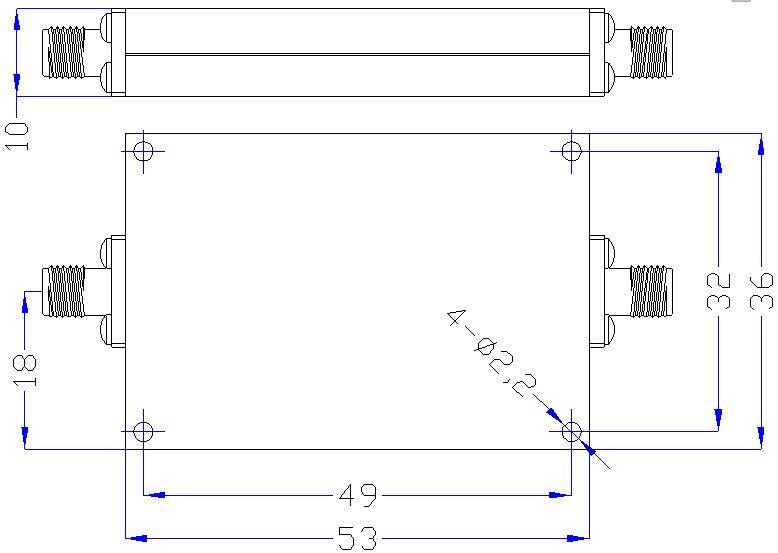

Product Dimensions

DC-2.0GHz, Rejection ≥45dB @ 2.3-6.0GHz, Low Pass Cavity Filter OLP-2000-A 01

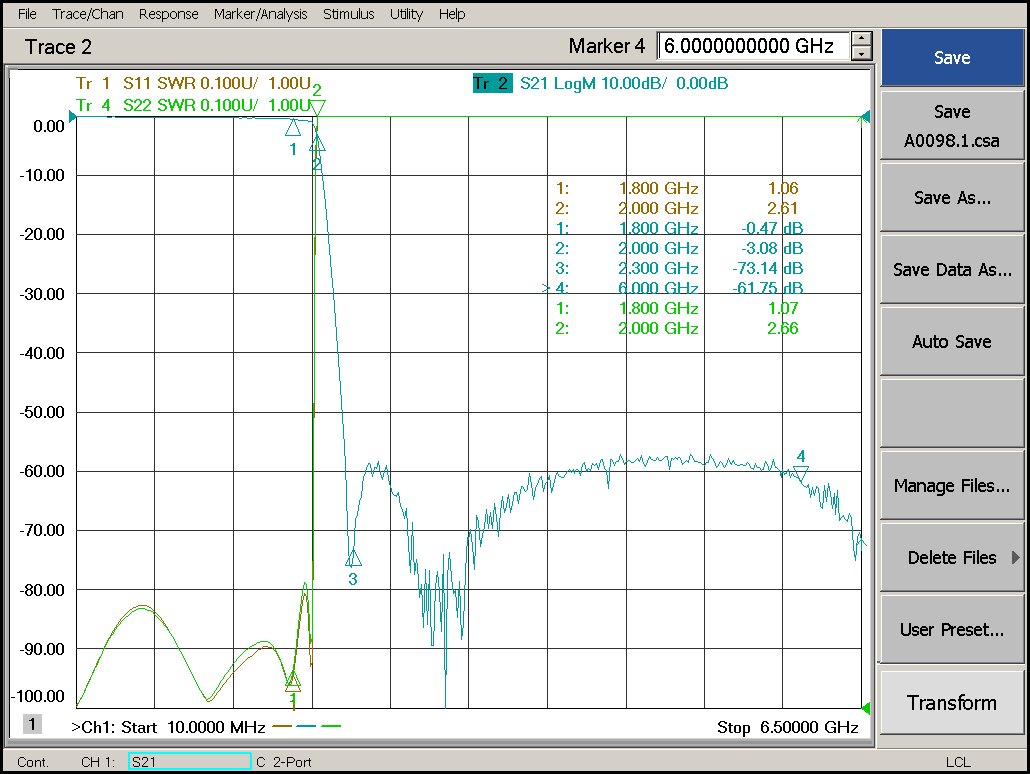

Test Data

DC-2.0GHz, Rejection ≥45dB @ 2.3-6.0GHz, Low Pass Cavity Filter OLP-2000-A 02

[wpfd_single_file id=”46739″ catid=”6426″ name=”OLP-2000-A”]

Additional information

Min. Pass Band Frequency (GHz)

DC

Max. Pass Band Frequency (GHz)

1.8

Cut Off Frequency (GHz)

2

Pass Band Insertion Loss (dB)

NA

Min. 1.0 dB Insertion Loss

NA

Max. 1.0 dB Insertion Loss

NA

Min. 1.5 dB Insertion Loss

NA

Max. 1.5 dB Insertion Loss

NA

Pass Band Return Loss (dB)

NA

Pass Band VSWR (Max.)

1.4:1

Stop Band Attenuation (GHz)

≥45dB @ 2.3 – 6

Impedance (Ω)

NA

Power Handling (W)

15

Connection Type

SMA-Female

Surface Finish

Black Paint
