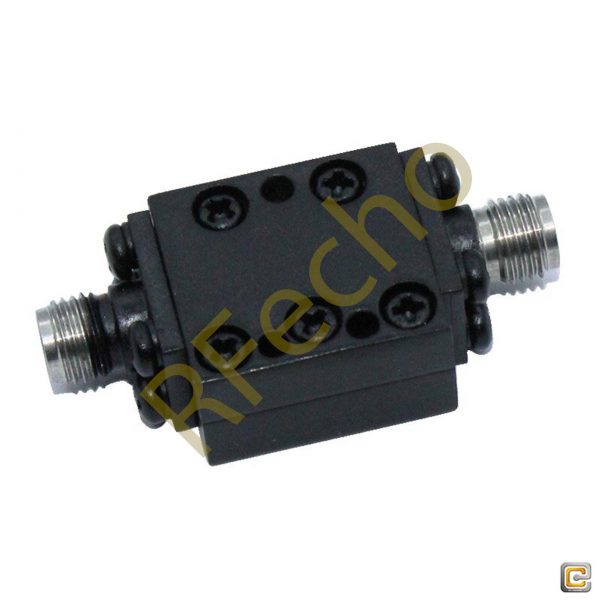

DC-21GHz Microwave Low Pass Cavity Filter Rejection: ≥50dB @ 22.2GHz~27GHz Cavity Low Pass Passive Filter with SMA Female Connector

DC-21GHz Microwave Low Pass Cavity Filter Rejection: ≥50dB @ 22.2GHz~27GHz Cavity Low Pass Passive Filter with SMA Female Connector

0 out of 5

DC-21GHz Microwave Low Pass Cavity Filter model OLP-21000 also known as low cut-off filter that allows signals below the cut-off frequency to pass through. This DC-21GHz Microwave Low Pass Cavity Filter Manufactured with a passband frequency from DC to 21GHz and a rejection frequency 22.2GHz to 27GHz. Our Cavity Low Pass Passive Filter provides a nominal insertion loss of ≤1.0dB @ DC~20GHz | ≤3.0dB @ 20~21GHz across its passband and a typical rejection of ≥50dB @ 22.2~27GHz. Since the high end cutoff frequency of DC-21GHz Microwave Low Pass Cavity Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Cavity Low Pass Passive Filter has passband VSWR ≤1.6:1 and power handling of ≤15W. DC-21GHz Microwave Low Pass Cavity Filter is manufactured with SMA Female Connector and customized Net weight.
DC to 21GHz Ocean Low Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our DC to 21GHz Microwave Low Pass Cavity Filter is ready for shipping worldwide after purchase. Additional specs of this Cavity Low Pass Passive Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OLP-21000 Categories: Low Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho Low Pass Cavity Filter (abbreviation: OLP) is a filter that allows signals below the cut-off frequency to pass through, but signals above the cut-off frequency cannot pass through.

Low Pass Cavity Filter – OLP-21000:

  • Cut Off Frequency: 21.0GHz,
  • Pass Band Frequency:  DC-21.0GHz,
  • Pass Band Insertion Loss: ≤1.0dB @ DC~20GHz | ≤3.0dB @ 20~21GHz,
  • Pass Band VSWR: ≤1.6:1,
  • Rejection: ≥50dB @ 22.2~27GHz.

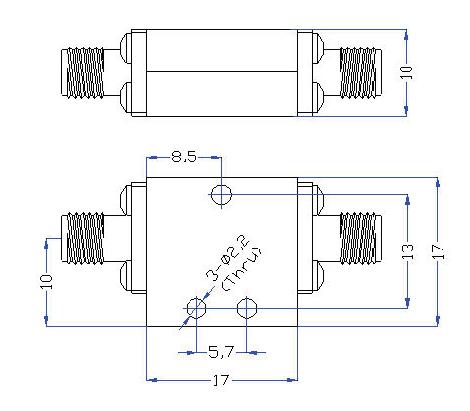

Outline

DC-21GHz, Rejection: ≥50dB @ 22.2~27GHz, Low Pass Cavity Filter OLP-21000 01

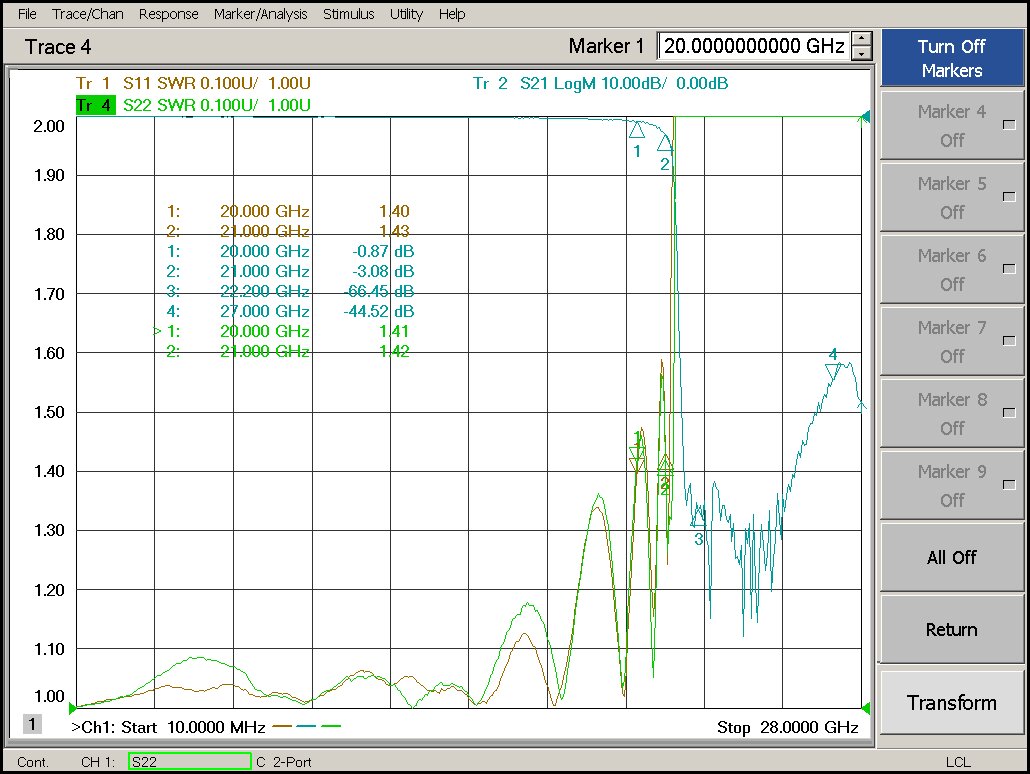

Plot

DC-21GHz, Rejection: ≥50dB @ 22.2~27GHz, Low Pass Cavity Filter OLP-21000 02

PDF

Additional information

Min. Pass Band Frequency (GHz)

DC

Max. Pass Band Frequency (GHz)

21

Cut Off Frequency (GHz)

21

Pass Band Insertion Loss (dB)

NA

Min. 1.0 dB Insertion Loss

DC

Max. 1.0 dB Insertion Loss

20 GHz

Min. 1.5 dB Insertion Loss

NA

Max. 1.5 dB Insertion Loss

NA

Pass Band Return Loss (dB)

NA

Pass Band VSWR (Max.)

1.6:1

Stop Band Attenuation (GHz)

≥50dB @ 22.2 – 27

Impedance (Ω)

50

Power Handling (W)

15

Connection Type

SMA-Female

Surface Finish

Guided Oxygen or Black Paint
