DC-2.85GHz RF Low Pass Cavity Filter model OLP-2750 also known as low cut-off filter that allows signals below the cut-off frequency to pass through. This DC-2.85GHz RF Low Pass Cavity Filter Manufactured with a passband frequency from DC to 2.85GHz and a rejection frequency 3.17GHz to 8.5GHz. Our Microwave Low Pass Filter provides a nominal insertion loss of 1.0dB @ DC~2.65GHz, 1.5dB @ 2.65~2.75GHz across its passband and a typical rejection of ≥60dB @ 3.17~8.5GHz. Since the high end cutoff frequency of DC-2.85 RF Low Pass Cavity Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Microwave Low Pass Filter has passband VSWR ≤1.3:1 and power handling of ≤15W. DC-2.85GHz RF Low Pass Cavity Filter is manufactured with SMA Female Connector and Net weight of 0.035Kg.
DC to 2.85GHz Ocean Low Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our DC to 2.8.5GHz RF Low Pass Cavity Filter is ready for shipping worldwide after purchase. Additional specs of this Microwave Low Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OLP-2750 Categories: Low Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho Low Pass Cavity Filter (abbreviation: OLP) is a filter that allows signals below the cut-off frequency to pass through, but signals above the cut-off frequency cannot pass through.

Low Pass Cavity Filter – OLP-2750:

  • Cut Off Frequency: 2.75GHz,
  • Pass Band Frequency:  DC-2.75GHz,
  • Pass Band Insertion Loss: 1.0dB @ DC~2.65GHz, 1.5dB @ 2.65~2.75GHz,
  • Pass Band VSWR: ≤1.3:1,
  • Rejection: ≥60dB @ 3.17~8.5GHz.

Outline

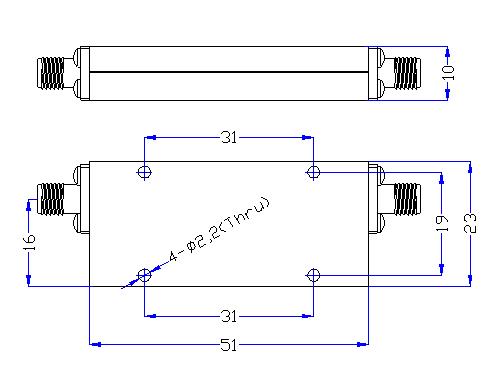

DC-2.85GHz, Rejection: ≥60dB @ 3.17~8.5GHz, Low Pass Cavity Filter OLP-2750 01

Plot

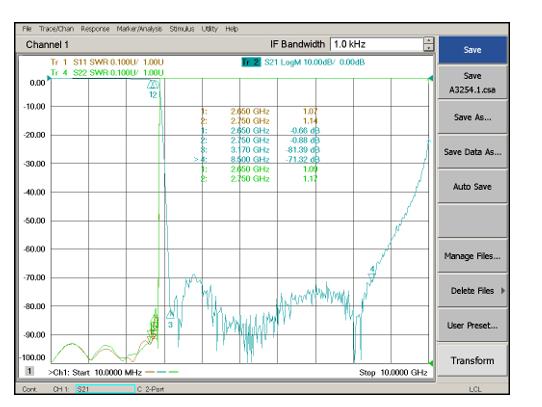

DC-2.85GHz, Rejection: ≥60dB @ 3.17~8.5GHz, Low Pass Cavity Filter OLP-2750 02

PDF

Additional information

Min. Pass Band Frequency (GHz)

DC

Max. Pass Band Frequency (GHz)

2.75

Cut Off Frequency (GHz)

2.75

Pass Band Insertion Loss (dB)

NA

Min. 1.0 dB Insertion Loss

DC

Max. 1.0 dB Insertion Loss

2.65 GHz

Min. 1.5 dB Insertion Loss

NA

Max. 1.5 dB Insertion Loss

NA

Pass Band Return Loss (dB)

NA

Pass Band VSWR (Max.)

1.3:1

Stop Band Attenuation (GHz)

≥60dB @ 3.17 – 8.5

Impedance (Ω)

50

Power Handling (W)

15

Connection Type

SMA-Female

Surface Finish

Guided Oxygen or Black Paint
