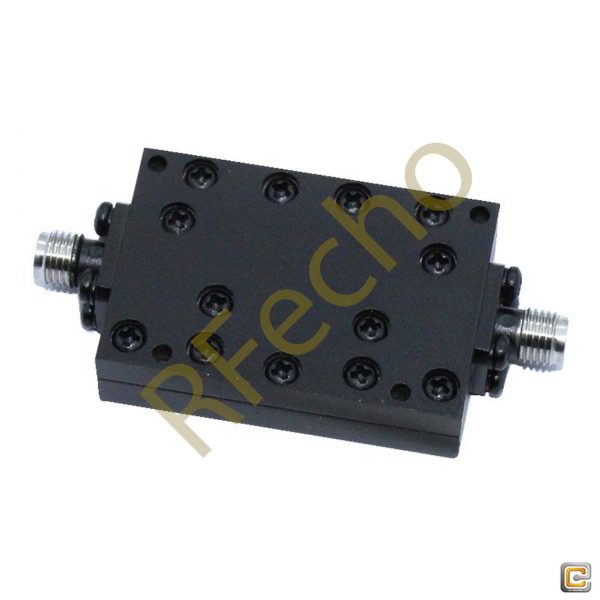

DC-4.5GHz Cavity Low Pass Microwave Filter Rejection ≥50dB @ 5.22MHz~11MHz RF Low Pass Passive Filter with SMA Female Connector

DC-4.5GHz Cavity Low Pass Microwave Filter Rejection ≥50dB @ 5.22MHz~11MHz RF Low Pass Passive Filter with SMA Female Connector

0 out of 5

DC-4.5GHz Cavity Low Pass Microwave Filter model OLP-4500-A also known as low cut-off filter that allows signals below the cut-off frequency to pass through. This DC-4.5GHz Cavity Low Pass Microwave Filter Manufactured with a passband frequency from DC to 4.5GHz and a rejection frequency 5.22MHz to 11MHz. Our RF Low Pass Passive Filter provides a nominal insertion loss of ≤1.0dB across its passband and a typical rejection of ≥50dB @ 5.22~11MHz. Since the high end cutoff frequency of DC-4.5GHz Cavity Low Pass Microwave Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF Low Pass Passive Filter has impendence of 50 Ohms and power handling of ≤15W. DC-4.6GHz Cavity Low Pass Microwave Filter is manufactured with SMA Female Connector and Net weight of 0.035Kg. DC to 4.5GHz Ocean Low Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our DC to 4.5GHz Cavity Low Pass Microwave Filter is ready for shipping worldwide after purchase. Additional specs of this RF Low Pass Passive Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OLP-4500-A Categories: Low Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho Low Pass Cavity Filter (abbreviation: OLP) is a filter that allows signals below the cut-off frequency to pass through, but signals above the cut-off frequency cannot pass through.

Low Pass Cavity Filter – OLP-4500-A:

  • Cut Off Frequency: 4.5GHz,
  • Pass Band Frequency:  DC-4.5GHz,
  • Pass Band Insertion Loss: ≤1.0dB,
  • Rejection: ≥50dB @ 5.22~11MHz.

Outline

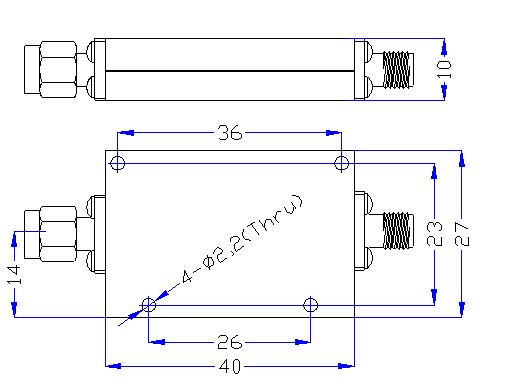

DC-4.5GHz, Rejection ≥50dB @ 5.22~11MHz, Low Pass Cavity Filter OLP-4500-A

Plot

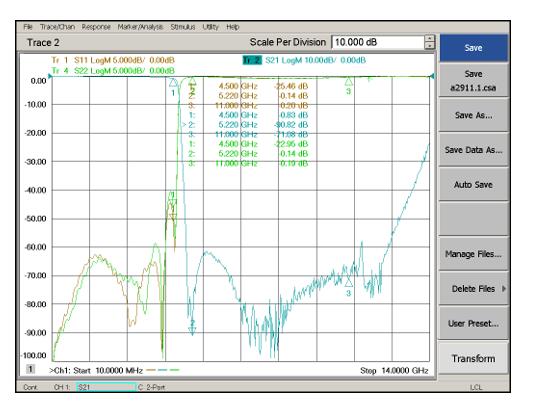

DC-4.5GHz, Rejection ≥50dB @ 5.22~11MHz, Low Pass Cavity Filter OLP-4500-A

PDF

Additional information

Min. Pass Band Frequency (GHz)

DC

Max. Pass Band Frequency (GHz)

4.5

Cut Off Frequency (GHz)

NA

Pass Band Insertion Loss (dB)

≤1.0dB

Min. 1.0 dB Insertion Loss

NA

Max. 1.0 dB Insertion Loss

NA

Min. 1.5 dB Insertion Loss

NA

Max. 1.5 dB Insertion Loss

NA

Pass Band Return Loss (dB)

?14dB

Pass Band VSWR (Max.)

NA

Stop Band Attenuation (GHz)

≥50dB @ 5.22 – 11

Impedance (Ω)

50

Power Handling (W)

15

Connection Type

SMA-Female

Surface Finish

Guided Oxygen or Black Paint
