DC-7.0GHz Cavity Low Pass RF Filter Rejection ≥40dB @ 7.8GHz~15GHz Microwave Low Pass Passive Filter with SMA Female Connector

DC-7.0GHz Cavity Low Pass RF Filter Rejection ≥40dB @ 7.8GHz~15GHz Microwave Low Pass Passive Filter with SMA Female Connector

0 out of 5

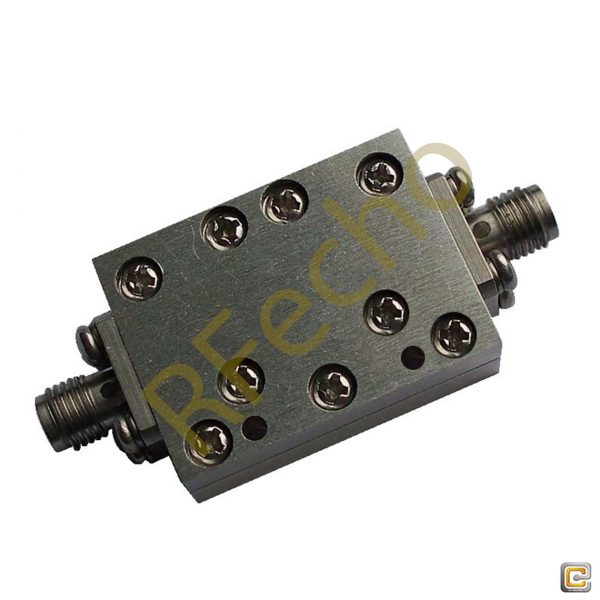

DC-7.0GHz Cavity Low Pass RF Filter model OLP-7000 also known as low cut-off filter that allows signals below the cut-off frequency to pass through. This DC-7.0GHz Cavity Low Pass RF Filter Manufactured with a passband frequency from DC to 7.0GHz and a rejection frequency 7.8GHz to 15GHz. Our Microwave Low Pass Passive Filter provides a nominal insertion loss of ≤2.0dB across its passband and a typical rejection of ≥40dB @ 7.8GHz~15GHz. Since the high end cutoff frequency of DC-7.0GHz Cavity Low Pass RF Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Microwave Low Pass Passive Filter has Passband VSWR of ≤1.6:1 and power handling of ≤5W. DC-7.0GHz Cavity Low Pass RF Filter is manufactured with SMA Female Connector and Net weight of 0.13Kg. DC to 7.0GHz Ocean Low Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our DC to 7.0GHz Cavity Low Pass RF Filter is ready for shipping worldwide after purchase. Additional specs of this Microwave Low Pass Passive Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OLP-7000 Categories: Low Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho Low Pass Cavity Filter (abbreviation: OLP) is a filter that allows signals below the cut-off frequency to pass through, but signals above the cut-off frequency cannot pass through.



Low Pass Cavity Filter – OLP-7000 Electrical Specifications

Pass Band Frequency DC~7.0GHz
Insertion Loss ≤2.0dB
VSWR ≤1.6:1
Rejection ≥40dB @ 7.8~15GHz
Power Handlin 5W
Surface Finish GuideOxygenor Black paint
Port Connectors SMA-Female
Net Weight 0.13KG

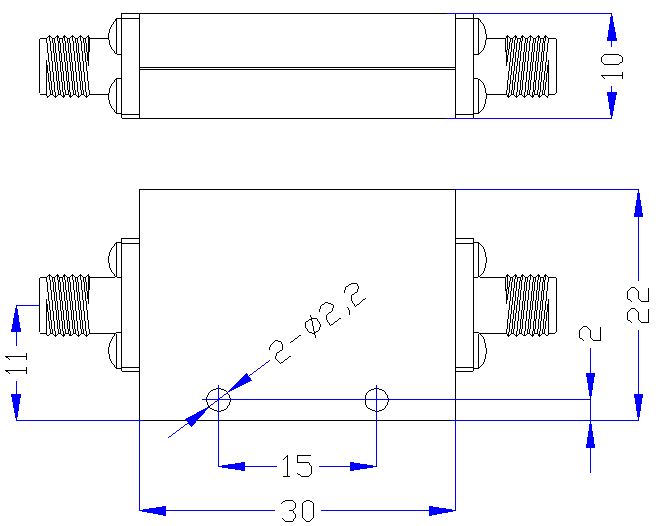

Product Dimensions

DC-7.0GHz, Rejection ≥40dB @ 7.8-15GHz, Low Pass Cavity Filter OLP-7000

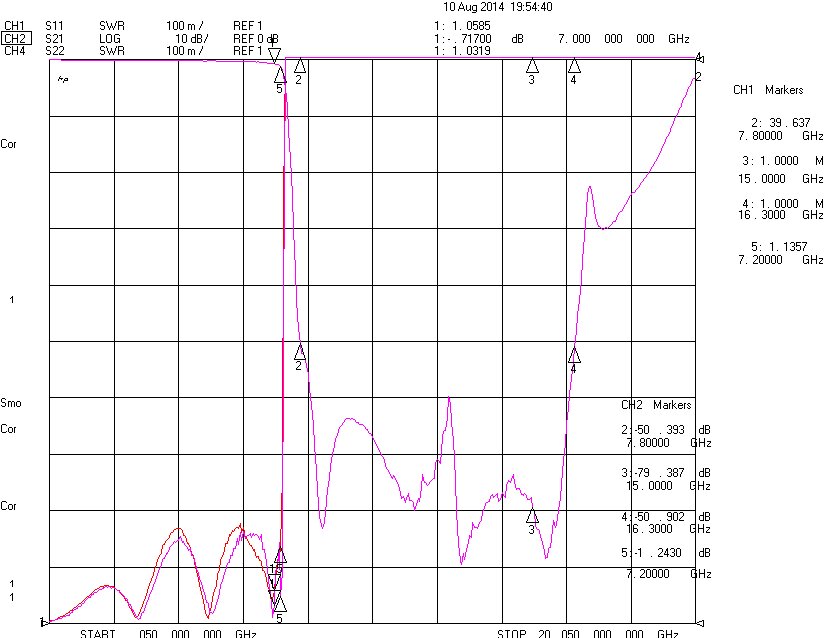

Test Data

DC-7.0GHz, Rejection ≥40dB @ 7.8-15GHz, Low Pass Cavity Filter OLP-7000

[wpfd_single_file id=”46749″ catid=”6426″ name=”OLP-7000″]

Additional information

Min. Pass Band Frequency (GHz)

DC

Max. Pass Band Frequency (GHz)

7

Cut Off Frequency (GHz)

NA

Pass Band Insertion Loss (dB)

≤2.0dB

Min. 1.0 dB Insertion Loss

NA

Max. 1.0 dB Insertion Loss

NA

Min. 1.5 dB Insertion Loss

NA

Max. 1.5 dB Insertion Loss

NA

Pass Band Return Loss (dB)

NA

Pass Band VSWR (Max.)

1.6:1

Stop Band Attenuation (GHz)

≥40dB @ 7.8 – 15

Impedance (Ω)

NA

Power Handling (W)

5

Connection Type

SMA-Female

Surface Finish

Guided Oxygen or Black Paint
