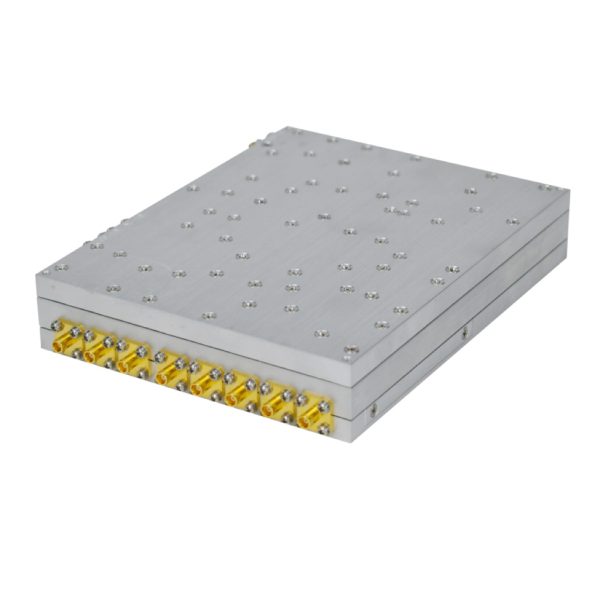

MSG760A Modular Signal GeneratorThe frequency range from 9kHz to 6GHz
$11660
The MSG760A is a cost-effective multi-standard signal source module. It provides standard AM/FM/ΦM analog modulation functions as well as
pulse modulation, and I/Q modulation, and frequency/amplitude sweep. Besides, The SG1000 provides some option functions such as base-band signal generator, linear frequency modulation, special communication standard signal and frequency up convert function. The MSG760A features standard PXI size and light weight. In addition, to meet the demands of production secondary development, the MSG760A device with LAN and USB interfaces, and provides standard SCPI command. It is an ideal device for system integration.
- Description
- Additional information
Description
SPEC
|
Spectrum Analyzer |
|
|
MSG760A Modular Signal Generator |
|
|
MSG760A |
|
|
The MSG760A is a cost-effective multi-standard signal source module. It provides standard AM/FM/ΦM analog modulation functions as well as |
|
|
Property |
Value |
|
Frequency Range |
9KHz ∼ 6.0gHz |
|
Setting range |
9kHz-50kHz:-120dBm-0dBm |
|
SSB phase noise(@ 10KHz , f= 1GHz) |
f=1GHz MSG760:≤-98dBc/Hz@10kHz |
|
Display |
/ |
|
Model Type |
Portable |
|
Power |
AC |
|
Dimensions |
238mmx103mmx350mm |
|
Features |
|
|
Sweep modes: frequency sweep, amplitude sweep, and frequency+ amplitude sweep |
|
|
Standard analog modulation:AM/FM/ФM |
|
|
Pulse modulation with minimum pulse width of 100ns |
|
|
Applications |
|
|
Primarily utilized in the electronic communications industry and microwave electronic measurement sectors, it is also well-suited for educational and research purposes, product development, manufacturing, maintenance. and other related scenarios. |
|
|
|
|
|
|
|
Datasheet
Characteristics
Analog Modulationl
AM/FM/ФM
Low Frequency Output
low-frequency output: sine waves, square waves, triangular waves,and sawtooth waves
Pulse Modulation
Pulse modulation with minimum pulse width of 100ns, supportingInternal/External pulse modulation input, External trigger input

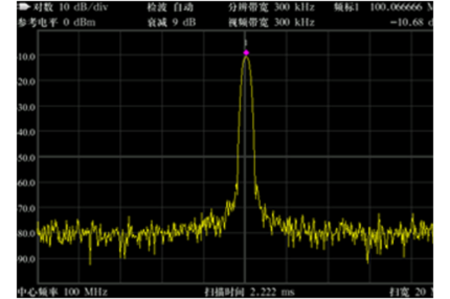

Pure Continuous Wave
Outputting signals at various frequencies and amplitudes Output dynamic range ofup to 130 dBm.

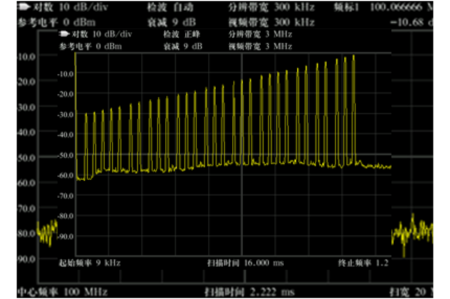

Step Sweep Signal
The signal generator is capable of generating sweep signals withequal steps, including three sweep modes: frequency sweep,amplitude sweep, and frequency + amplitude sweepSweep type:Step sweep,List sweep
Pure Continuous Wave
Outputting signals at various frequencies and amplitudes. Output dynamic range ofup to 130 dBm.

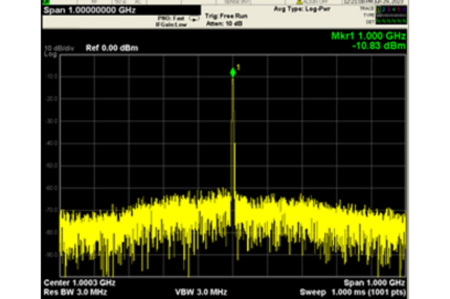

RF Up-conversion
Input frequency range:190+30MHz,Output frequency range:201MHz~3 .0GHz
Step Sweep Signal
The signal generator is capable of generating sweep signals withequal steps, including three sweep modes: frequency sweep,amplitude sweep, and frequency + amplitude sweep.Sweep type:Step sweep,List sweep
