N 18 GHz, 0.018″ Accept Pin Diameter, 4 Hole 1.000″ Square Mounting Flange Male Connector
Model D341-P18-F08 is a Male connector. The N connectors are durable, operational temperature rating of -55°C to +165°C, lowest VSWR and RF leakage (≤ -100 dB). N Connector offers the frequency from DC to 18 GHz.
Mounting method in N Connectors is 4 Hole, where the flange size is 1.000″ Square. This model of N Connector provides the accept pin diameter of 0.018″ inches.
- Description
- Additional information
- Reviews (0)
Description
SPEC
|
N Connector |
|
|
N 18 GHz, 0.018″ Accept Pin Diameter, 4 Hole 1.000″ Square Mounting Flange Male Connector |
|
|
D341-P18-F08 |
|
|
Model D341-P18-F08 is a Male connector. The N connectors are durable, operational temperature rating of -55°C to +165°C, lowest VSWR and RF leakage (≤ -100 dB). N Connector offers the frequency from DC to 18 GHz. Mounting method in N Connectors is 4 Hole, where the flange size is 1.000″ Square. This model of N Connector provides the accept pin diameter of 0.018″ inches. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
DC |
|
Max. Frequency (GHz) |
18 |
|
Flange (inch) |
1.000″ Square |
|
Mounting |
4 Hole |
|
Accept Pin Diameter (inch) |
0.018″ |
|
Gender |
Male |
|
Features |
|
|
Low VSWR |
|
|
Free through 18 GHz |
|
|
Applications |
|
|
Telecom Communication |
|
|
Sub-assemblies |
|
|
Radio equipment and instruments |
|
|
Wireless Communication |
|
|
Test Labs |
|
|
Instrumentations |
|
Outline

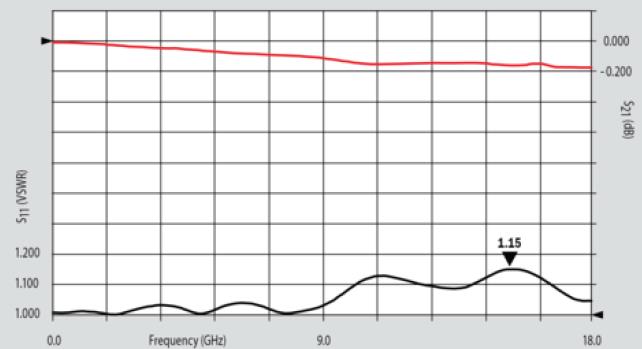

Plot
Additional information
| Min. Frequency (GHz) | DC |
|---|---|
| Max. Frequency (GHz) | 18 |
| Flange (inch) | |
| Mounting | |
| Accept Pin Diameter (inch) | |
| Gender |
