OLB-75-25 Pyramidal Standard Gain Horn Antenna

OLB-75-25 Pyramidal Standard Gain Horn Antenna

OLB-75-25

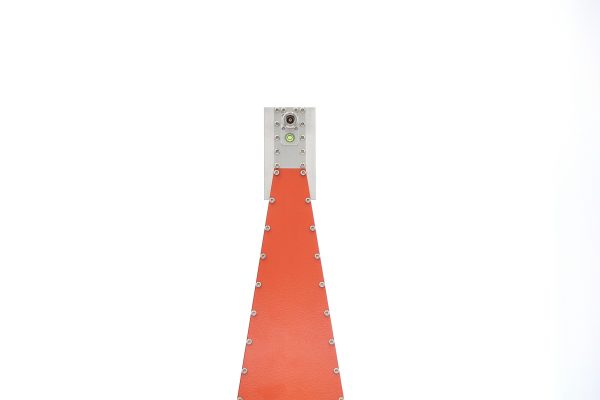

This model OLB-75-25 is a Standard gain horn antenna that offers a gain of 25 dBi across the band. It covers the frequency range from 9.84 GHz to 15 GHz. The Standard gain horn antenna OLB-75-25 is known as a waveguide horn having the waveguide of WR-75. It is manufactured using machined aluminum sections, ensuring the pyramidal structure of the antenna, as well as its structural strength and polarization characteristics. Additionally, this antenna has an extremely low reflection coefficient. This antenna can be applied to various microwave fields, including long-distance telephone and data communication, ensuring high-quality and stable signals. The HPBW of OLB-75-25 has an H-plane & V-Plane beam width of approximately 10°. The standard gain horn antenna has linear polarization. The impedance used in the Standard gain horn antenna is 50 ohms. The horn antenna is integrated with the waveguide-coaxial transition section into a single unit, resulting in better VSWR (Voltage Standing Wave Ratio) and enhanced structural strength. The antenna can be equipped with various types of mounts, which allow the antenna to easily rotate between horizontal and vertical polarization. Additionally, we offer a variety of tripods, antenna towers, and test platforms for selection.

Property

Value

Frequency Range

9.84GHz∼15GHz

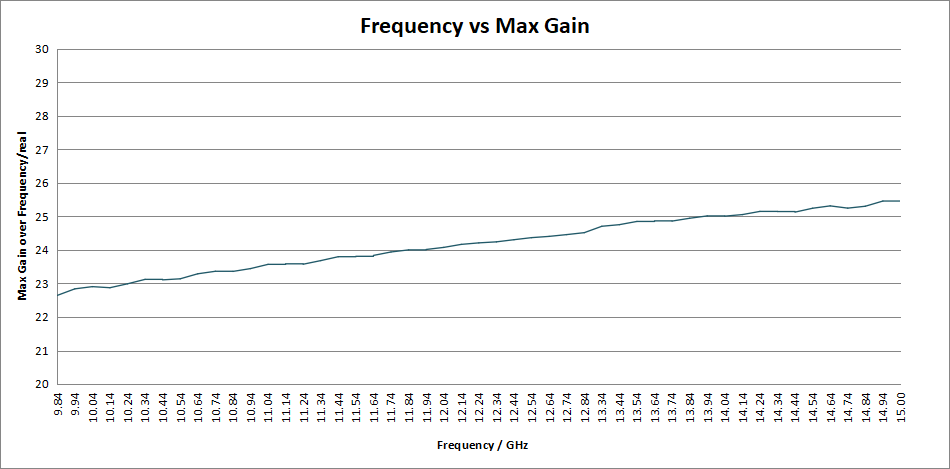

Gain(dB)

25

3dBBeamWidth

10°

Waveguide

WR-75

Output

N-F/SMA-F

Polarization

Linear

Impedance

50 Ohm

Features

Precisely Machined

Low VSWR?Light Weight

Linear Polarization

Applications

Long-Distance Communication

Ideal for long-distance data communication

Suitable for stable telecom signals.
