70GHz to 90GHz Microwave Waveguide Bandpass Filter model OWBP-70009000-12 is E Band Waveguide Bandpass filter with a passband frequency from 70GHz to 90GHz and a rejection frequency 93.3GHz to 130GHz. Due to the waveguide cut off nature of RF Passive Bandpass filter, the low side of this RF filter has rejection range of DC to 60GHz. Our 70GHz to 90GHz Microwave Waveguide Bandpass Filter provides a nominal insertion loss of 2.0dB across its passband and a typical rejection of 40dB. Since the high end cutoff frequency of RF Passive Bandpass filter can be changed by modifying the design, custom designs can be offered under different model numbers. This 70GHz to 90GHz Microwave Waveguide Bandpass Filter has VSWR 1.5:1 and operating temperature of -40C to -85C.
70GHz to 90GHz Ocean Bandpass filter from RFecho is just one part in a large selection of our RF Components. Our 70GHz to 90GHz Microwave Waveguide Bandpass filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-70009000-12 Categories: RF Filter Bandpass, RF Filters, Routing

Description

PDF

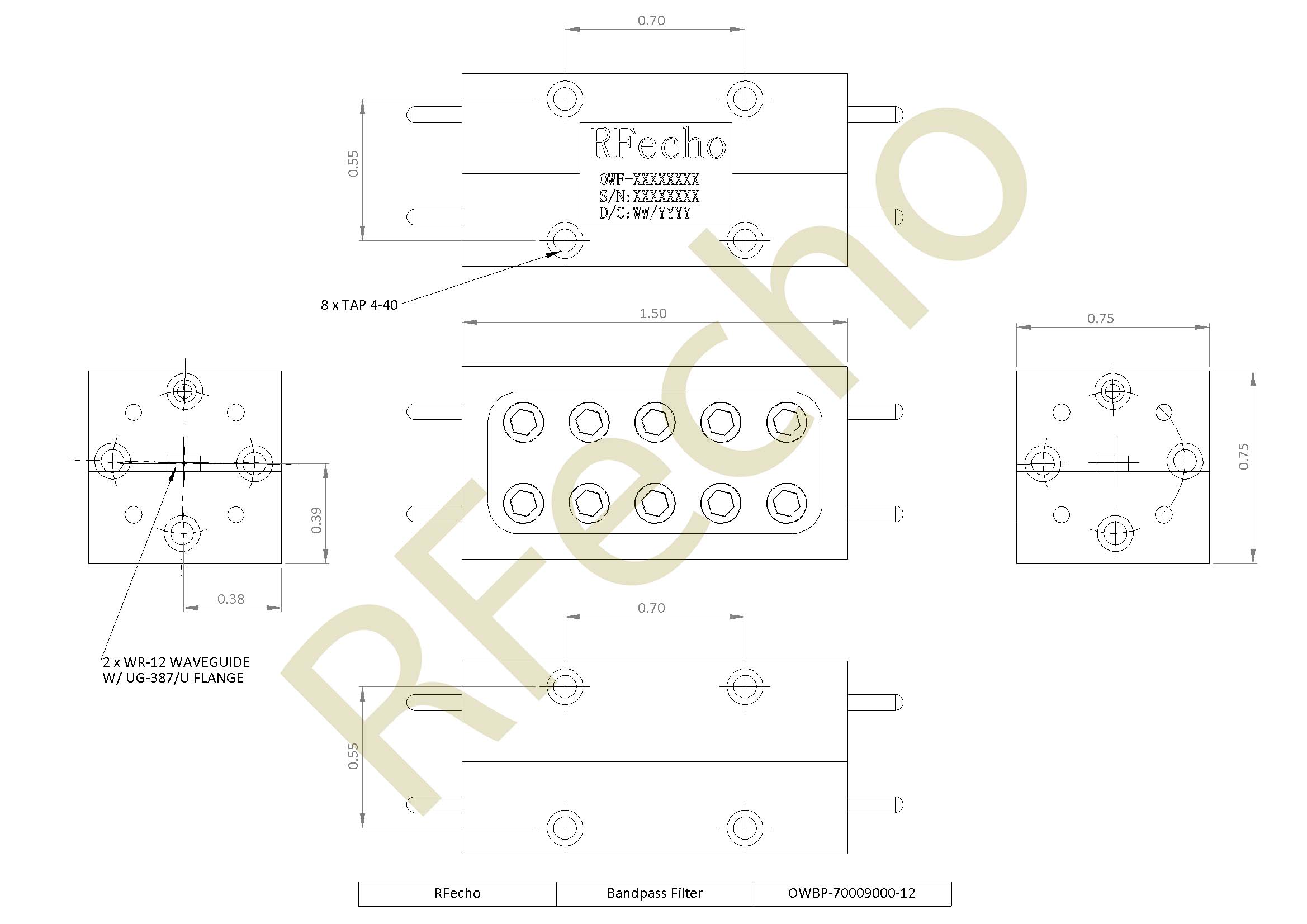

Outline

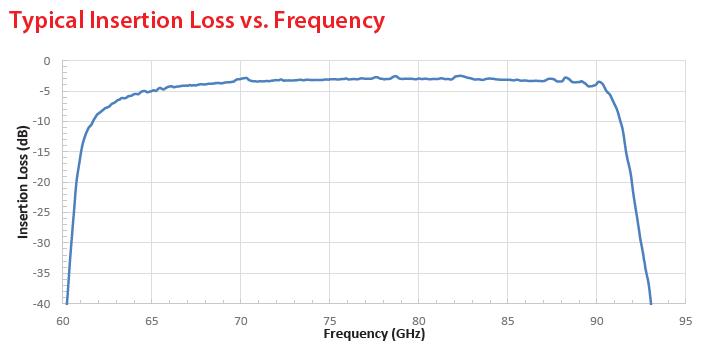

Plot

Additional information

Filter Type

RF Filter Bandpass

Min Pass Band Freq. (GHz)

70

Max Pass Band Freq. (GHz)

90

Insertion Loss (dB)

2.0-3.0

Rejection (dB)

40

Max Rejection Freq. Lowside

60

Min Rejection Freq. Highside

93.3

Waveguide Port

WR-12
