RFECHO Log-Periodic Antenna OLP00330

RFECHO Log-Periodic Antenna OLP00330

OLP00330

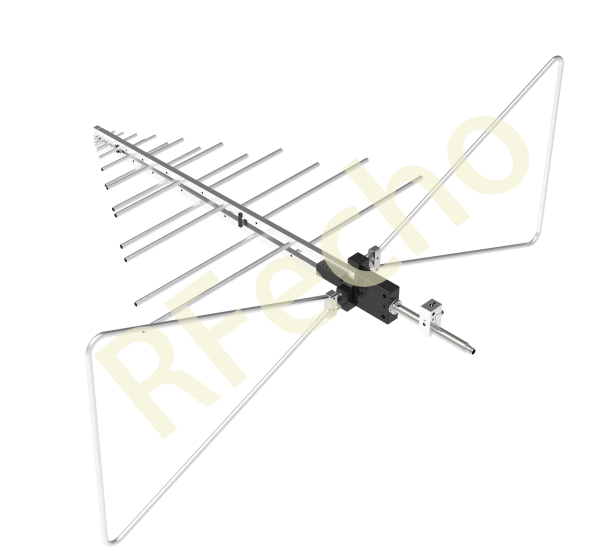

The RFECHO Bilogical Antenna is one of our latest antennas, providing an inexpensive and excellent solution to wide band applications. Whether testing inside a shielded enclosure or outdoors, The RFECHO antenna will display
efficient performance characteristics through the frequency range of 30 MHz to 3000 MHz.The RFECHO antenna offering a large number of dipole elements with frequency range from 30MHz to 3.0 GHz including the most common RF sources like GSM,6G,Wifietc..Each antenna goes through rigorous testing in our laboratories before dispatch Allantennas are developed, individually produced and calibrated

Property

Value

Frequency Range

30MHz∼3.0GHz

Polarization

linear

Max Power(W)

200 W

RF connector

N

Nominal impedance

50 Ohm

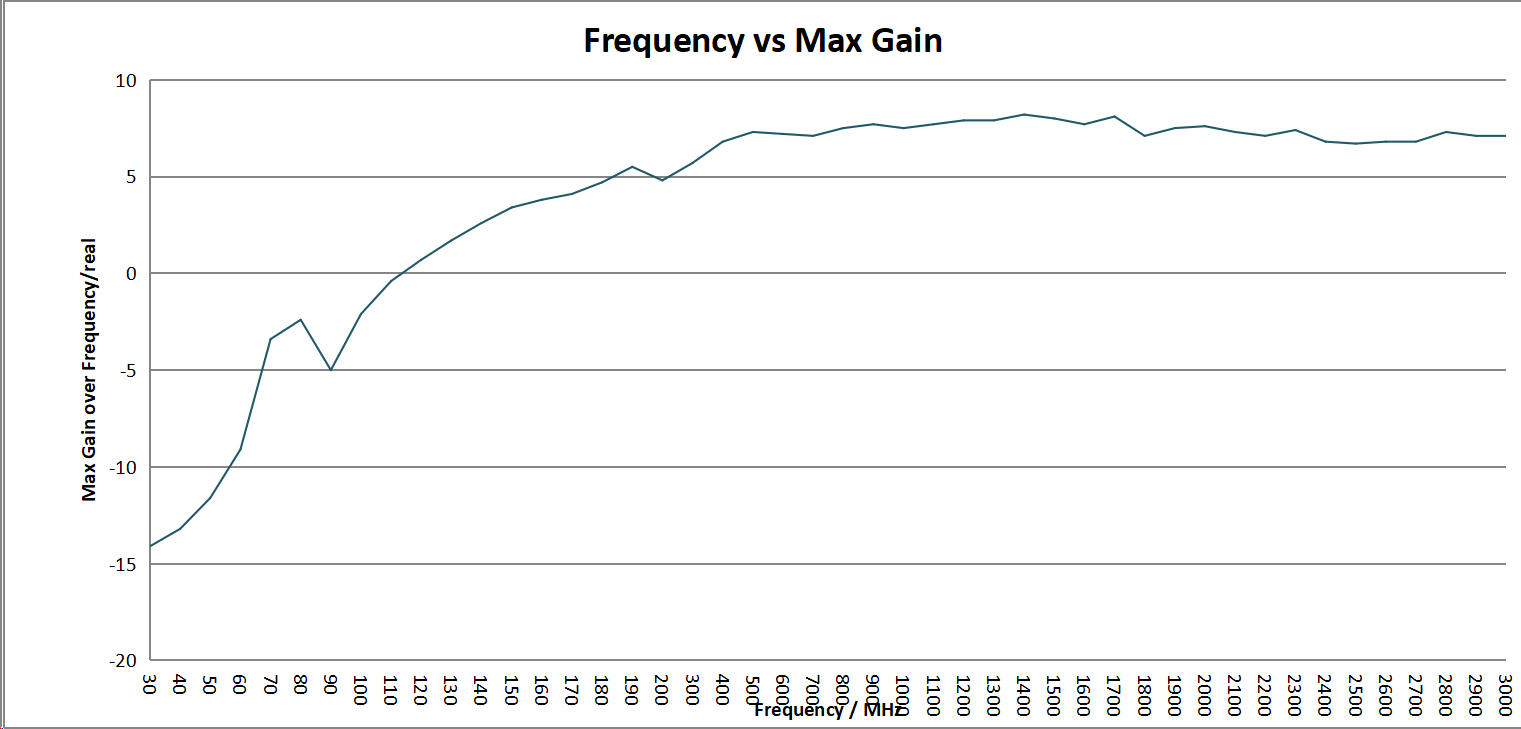

Gain(dBi)

8.5 dBi (typ.)

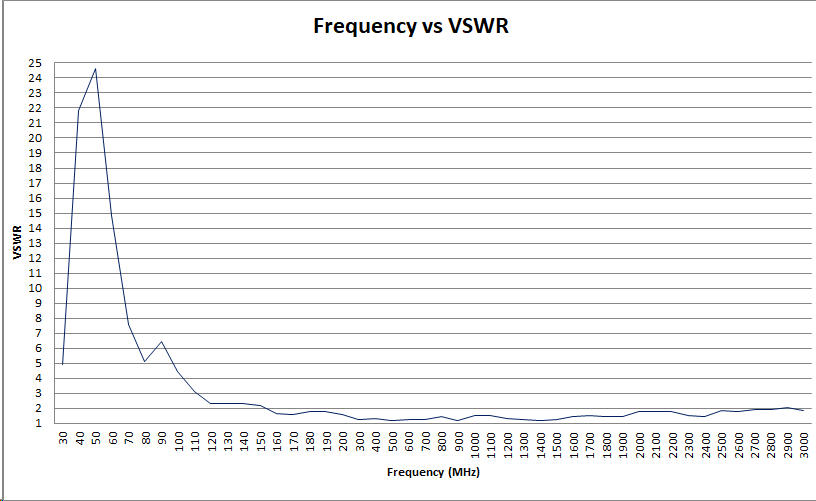

VSWR

< 2 (typ.)

Features

High antenna gain, i.e. low amplifier power is required

No change of antennas needed over wide frequency range

Uniform object irradiation due to optimized radiation patterns

Applications

Satellite communication.

EMC measurements.

Directional radio communication.
