RSA Real-Time Spectrum Analyzer Frequency Range:9kHz∼20GHz
$24580

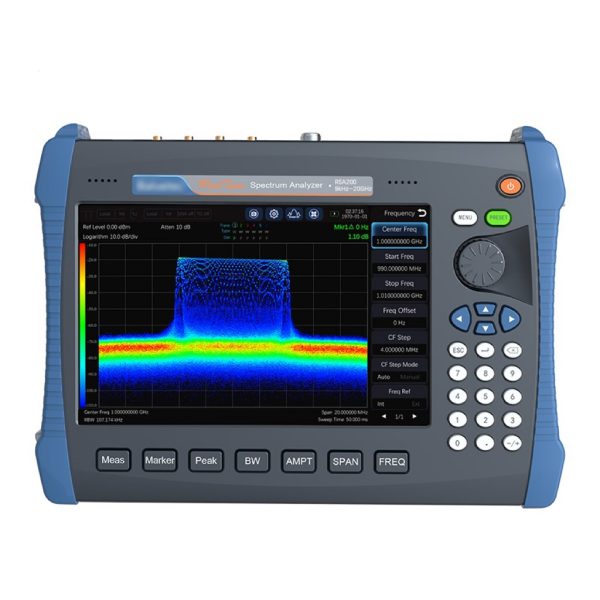

RSA Real-Time Spectrum Analyzer is a wide band, high-performance portable real-time spectrum analyzer, measuring frequencies from 9kHz to 20GHz, suitable for indoor and outdoor environments.
The product features a 10.1-inch highlight display screen, supporting
multi-touch operation. It has measurement modes such as real-time spectrum, swept
spectrum, vector network analysis, antenna measurement, field strength
measurement, USB power meter, interference positioning, and demodulation analysis, making it convenient for users to diagnose and solve various RF measurement problems on site.
With up to 80dB of IF mirror frequency suppression and minimal residual
response specification, it meets the higher needs of radio monitoring. The product has comprehensive testing functions, can be battery-powered, easy to carry, and is a powerful tool for on-site testing parameters, engineering installation and debugging, and daily maintenance and repair of various electronic devices.
- Description
- Additional information
Description
SPEC
|
Spectrum Analyzer |
|
|
RSA Real-Time Spectrum Analyzer |
|
|
RSA200 |
|
|
RSA Real-Time Spectrum Analyzer is a wide band, high-performance portable real-time spectrum analyzer, measuring frequencies from 9kHz to 20GHz, suitable for indoor and outdoor environments. |
|
|
Property |
Value |
|
Frequency Range |
9kHz∼20GHz |
|
Amplitude Accuracy |
13.5GHz∼20GHz，±2.0dB |
|
Phase Noise（@10kHz,f=1GHz） |
RSA200:≤-95dBc/Hz |
|
Noise Level |
<-165dBm/<-160dBm |
|
Model Type |
Portable |
|
Power |
14.8V 6400mAh |
|
Dimensions |
334mm ×242mm ×68mm |
|
Features |
|
|
Advanced measurement functions |
|
|
Optional measurement functions |
|
|
10.1-inch color display with touchscreen |
|
|
Applications |
|
|
It can be widely used in various fields such as communication, radio and television broadcasting, radio management, electronic detection and countermeasures, precision guidance, and is also the best choice for university teaching. |
|
|
|
|
|
|
|
Datasheet
Characteristics

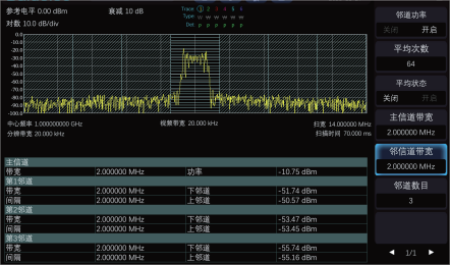

Adjacent Channel Power Measurement
Measuring the power level of the main channel, the power levels of the two adjacent channels before and after, and their power difference with the main channel.

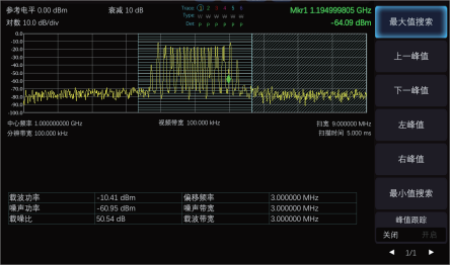

Carrier-to-noise Ratio Measurement
Measuring the power of the carrier and noise within a specified bandwidth, as well as their power ratio.

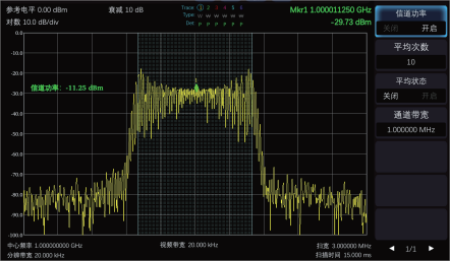

Channel Power Measurement
Measuring the power and power density of the specified channel bandwidth.

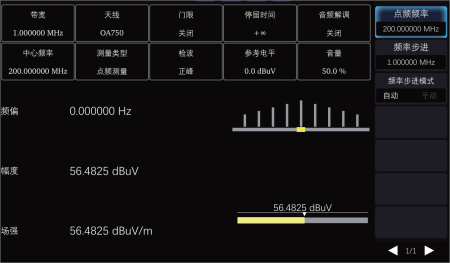

Field Strength Measurement
Measure the field strength using an omnidirectional antenna, determine the maximum field strength using a directional antenna .Fixed frequency, frequency step scanning, list scanning and other multiple field strength measurements .Built-in / loadable antenna factor.

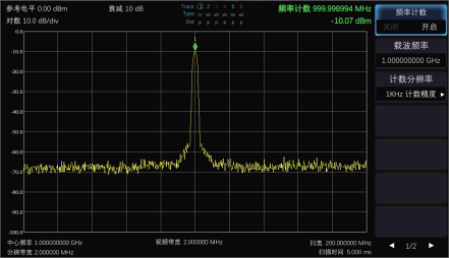

Frequency Counting Measurement
Measuring the frequency accuracy of the signal more precisely.

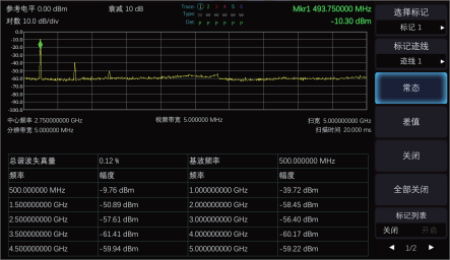

Harmonic Distortion Measurement
Measuring the power of each harmonic of the carrier signal and the total harmonic distortion. The maximum measurable harmonic is the 10th harmonic.
Interference analysis and tracking
Based on triangulation, and by using directional antennas equipped with GPs/BD and electronic compasses, along with embedded digital maps

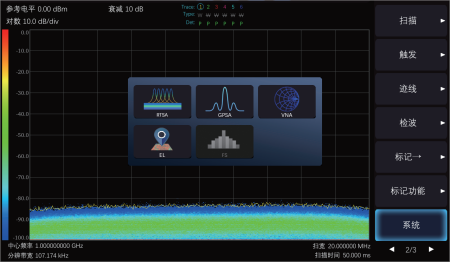

Multiple Measurement Modes
Swept spectrum analysis/real-time spectrum analysis/field strength measurement/emitter location/power measurement/de-modulation analysis

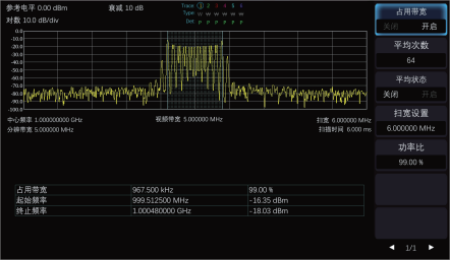

Occupied Bandwidth Measurement
Integrating to calculate the power across the entire sweep bandwidth ,then calculating the bandwidth occupied by the proportional power based on the set power ratio.
Pass-Fail Test
Checking whether the tested signal is within the set window or region.

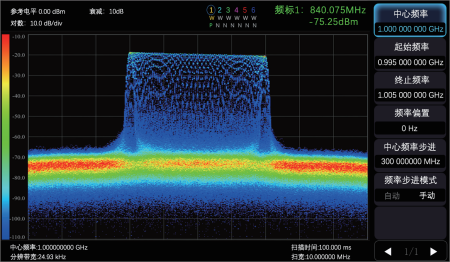

Real-time Spectrum Analysis
Detecting short pulse signals at the microsecond level. Trigger functions such as intermediate frequency power trigger ,external trigger, and frequency template trigger. Capturing the uplink and downlink signals of TDD-LTE, with PPS and time gate measurement.

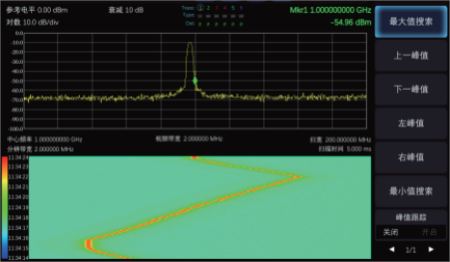

Spectrogram
Measuring the variation of the spectrum over time.

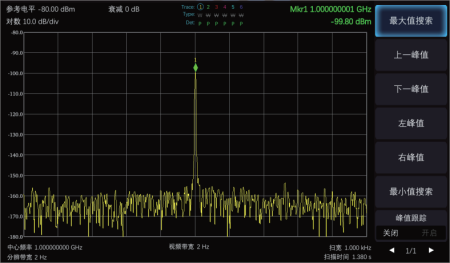

Swept Spectrum Analysis
Wide bandwidth, large dynamic range, excellent capability for small signal measurement, suppression ratio for intermediate/mirror frequency as high as 80dB, various advanced measurement functions.

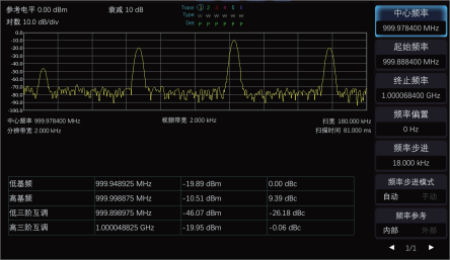

Third-order Intermodulation Measurement
Measuring the parameters of the third-order intermodulation products of two signals(with the same amplitude and close frequencies).
Additional information
| Frequency Range | 9kHz∼20GHz |
|---|---|
| Amplitude Accuracy | 13.5GHz∼20GHz，±2.0dB |
| Phase Noise（@10kHz,f=1GHz） | RSA200:≤-95dBc/Hz |
| Model Type | Portable |
| Power | 14.8V 6400mAh |
| Dimensions | 334mm ×242mm ×68mm |
