SA2260 Spectrum AnalyzerFrequency range:9kHz∼26.5GHz

SA2260 Spectrum AnalyzerFrequency range:9kHz∼26.5GHz

0 out of 5

$32280

The SA2260 spectrum analyzer is a wide band,
high-performance microwave spectrum analyzer that measures
frequency range from 9kHz∼26.5GHz. The
product uses an all-aluminum chassis, an 8.4-inch high-brightness
display screen, and has a excellent environmental adaptability.
Highly integrated RF front-end and digital IF technology ensure its
outstanding and stable performance. The maximum real-time
bandwidth of 40MHz meets the testing of commonly used radio
signals such as mobile communications, TV, and WiFi. The
145MHz analog IF output provides users with a variety of test
options. The product has a variety of intelligent measurement
functions such as spectrum analysis, field strength measurement,
channel scanning, third-order inter modulation, harmonic
distortion, signal-to-noise ratio, and Pass-Fail, and can be widely
used in aerospace, microwave communications, satellite
navigation, radar detection, electronic detection and confrontation,
precision guidance and other fields.

SKU: SA2260 Categories: Active Device, Spectrum, Testing Instrument

Description

SPEC

Spectrum Analyzer

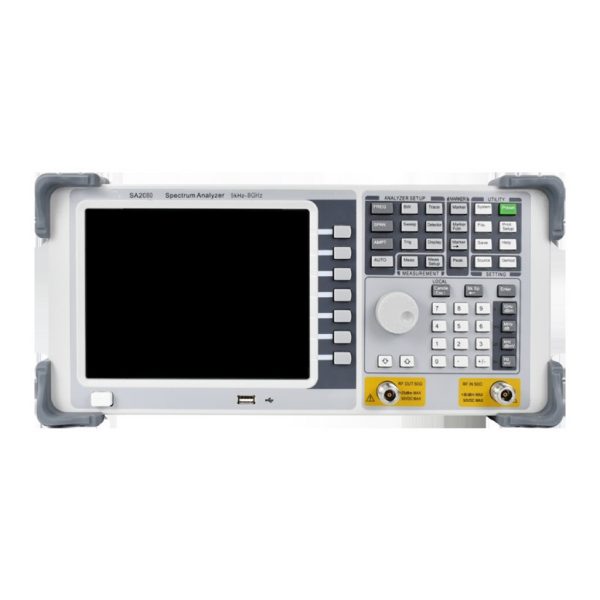

SA2260 Spectrum Analyzer
Frequency range:9kHz∼26.5GHz

SA2260

The SA2260 spectrum analyzer is a wide band,
high-performance microwave spectrum analyzer that measures
frequency range from 9kHz∼26.5GHz. The
product uses an all-aluminum chassis, an 8.4-inch high-brightness
display screen, and has a excellent environmental adaptability.
Highly integrated RF front-end and digital IF technology ensure its
outstanding and stable performance. The maximum real-time
bandwidth of 40MHz meets the testing of commonly used radio
signals such as mobile communications, TV, and WiFi. The
145MHz analog IF output provides users with a variety of test
options. The product has a variety of intelligent measurement
functions such as spectrum analysis, field strength measurement,
channel scanning, third-order inter modulation, harmonic
distortion, signal-to-noise ratio, and Pass-Fail, and can be widely
used in aerospace, microwave communications, satellite
navigation, radar detection, electronic detection and confrontation,
precision guidance and other fields.

Property

Value

Frequency Range

9kHz∼26.5GHz

Amplitude Accuracy

20GHz∼26.5GHz,±2.5dB

Phase Noise(@10kHz,f=2GHz)

SA2260:≤-95dBc/Hz(@10kHz,f=1GHz)

Noise Level

<-160dBm

Model Type

Benchtop

Power

AC

Dimensions

WR-51

Features

Image frequency /IF rejection:80dB Spectrogram、 CHP、 ACPR、 OBW、 CNR、 TOI、 HD、

Frequency counter、Audio Demo、Pass-Fail etc Advanced measurement

All metal chassis,Super strong shielding performance and EMC
characteristics

Applications

Datasheet

Characteristics

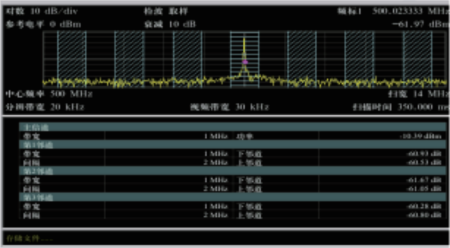

Adjacent Channel Power Measurement

Measures Main Channel Power, Power of the Two Adjacent Channels Before and After, and Their Power Difference Relative to the Main Channel

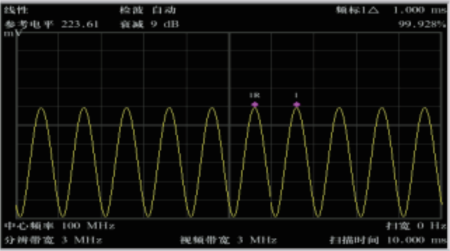

Audio demodulation and radio monitoring

The graph illustrates the demodulated modulation signal from an AM modulated signal.

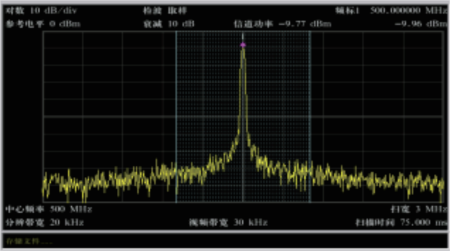

Channel Power Measurement

Measurement of Power and Power Density within a Specified Channel Bandwidth

Efficient Ul

Clear and bright trace lines, easy operation.

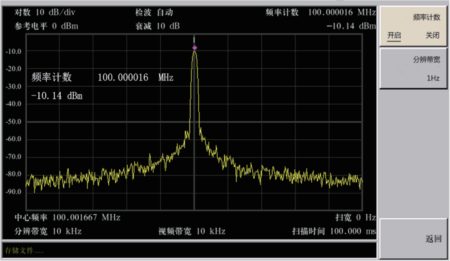

Frequency Counting Measurement

Enhanced Accuracy for the Test Signal’s Frequency Accuracy

Harmonic Distortion Measurement

Measures the power of each harmonic of the carrier signal and the total harmonic distortion.

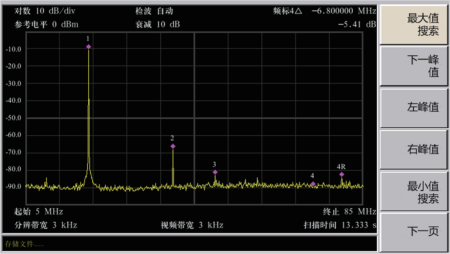

Multiple Markers Measurement

Setting up to five frequency markers concurrently, and each marker can be defined in either a normal or delta mode.

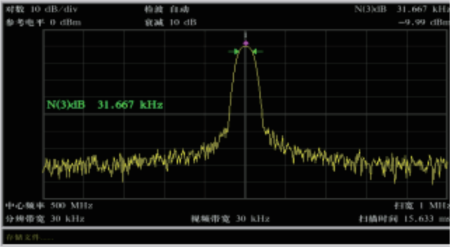

NdB Bandwidth Measurement

Utilize this feature for rapid measurement of signal band width By setting the dB difference from peak power (NdB), it provides real-time bandwidth at that point.

Occupied Bandwidth Measurement

Integrates Power over the Entire Scan Width and Calculates the Bandwidth Occupied by the Specified Power Ratio Based on the Set Power Ratio

Pass-Fail Test

Verifies Whether the Tested Signal is Located Within the Set Window or Area

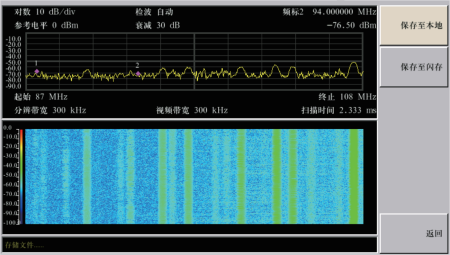

Spectrum and Spectrogram

Spectrogram provides a three-dimensional perspective where time is represented through either depth or color coding, which makes it particularly effective for observing temporal changes in frequency content.

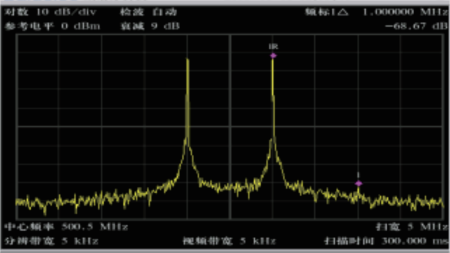

Third-order Intermodulation Measurement

Measures Parameters of the Third-order Intermodulation Product of Two Signals (with Equal Amplitudes and Close Frequencies)

Additional information

Frequency Range

9kHz∼26.5GHz

Amplitude Accuracy

20GHz∼26.5GHz,±2.5dB

Phase Noise(@10kHz,f=2GHz)

SA2260:≤-95dBc/Hz(@10kHz,f=1GHz)

Model Type

Benchtop

Power

AC

Dimensions

WR-51
