SG2060B Multi-standard Signal GeneratorThe frequency range from 9kHz to 6.0GHz
$15350
The SG2060B is a high-performance multi-standard signal generator. It provides comprehensive modulation solutions such as: continue-wave signal，and standard AM/FM/ΦM analog modulation, and standard pulse modulation，and I/Q modulation ,frequency and amplitude
sweep. The SG2000 also supports some options such as base-band signal generator, linear frequency modulation, special communication standard
signal and frequency up convert function. In addition, to meet the demands of production secondary development, the SG2000 equipped with LAN and
USB interfaces, and provides standard SCPI command. The SG2000 also features a clear user interface, small size and light weight. It is easy to operate
and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance.
- Description
- Additional information
Description
SPEC
|
Spectrum Analyzer |
|
|
SG2060B Multi-standard Signal Generator |
|
|
SG2060B |
|
|
The SG2060B is a high-performance multi-standard signal generator. It provides comprehensive modulation solutions such as: continue-wave signal，and standard AM/FM/ΦM analog modulation, and standard pulse modulation，and I/Q modulation ,frequency and amplitude |
|
|
Property |
Value |
|
Frequency Range |
9kHz to 6.0GHz |
|
Setting range |
9kHz-50kHz:-120dBm-0dBm |
|
SSB phase noise(@ 10KHz , f= 1GHz) |
≤ – 98d Bc/Hz |
|
Display |
4 . 3 “ |
|
Model Type |
Portable |
|
Power |
AC |
|
Dimensions |
385mmx103mmx410mm |
|
Features |
|
|
Pure Continuous Wave output |
|
|
Standard analog modulation: AM/FM/ФM |
|
|
Pulse modulation with minimum pulse width of 100ns |
|
|
Applications |
|
|
Primarily utilized in the electronic communications industry and microwave electronic measurement sectors, it is also well-suited for educational and research purposes, product development, manufacturing, maintenance. and other related scenarios. |
|
|
|
|
|
|
|
Datasheet
Characteristics

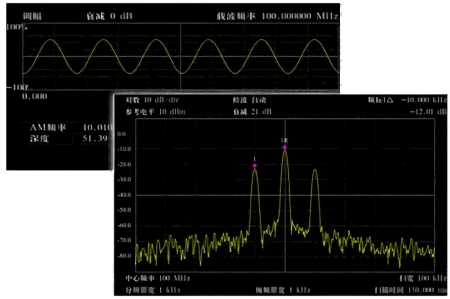

Analog Modulation
AM/FM/ФM, Customizable modulation(SSB/DSB/CW)

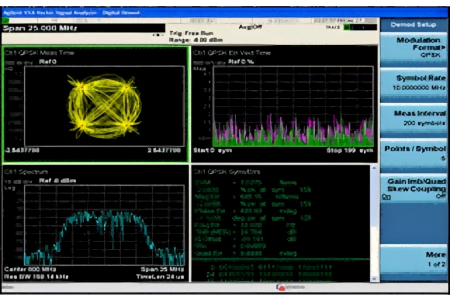

Digital Modulation
ASKFSK/PSK/OAM built-in IQ modulator(Model-B)
Linear Frequency Modulation
Linear frequency modulation can simultaneously retain thecharacteristics of continuous signals and pulses.

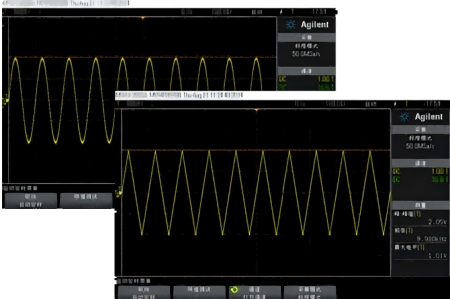

Low Frequency Output
low-frequency output: sine waves, square waves, triangular waves,and sawtooth waves
Pulse Modulation
Pulse modulation with minimum pulse width of 100ns, supporting Internal/External pulse modulation input, External trigger input
Pure Continuous Wave
Outputting signals at various frequencies and amplitudes. Output dynamic range ofup to 130 dBm.

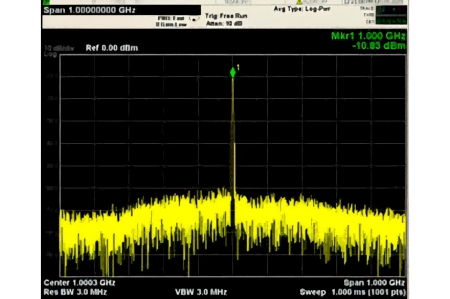

RF Up-conversion
Input frequency range:190+30MHz,Output frequency range:201MHz~3 .0GHz
Step Sweep Signal
The signal generator is capable of generating sweep signals withequal steps, including three sweep modes: frequency sweep,amplitude sweep, and frequency + amplitude sweep.Sweep type:Step sweep,List sweep
