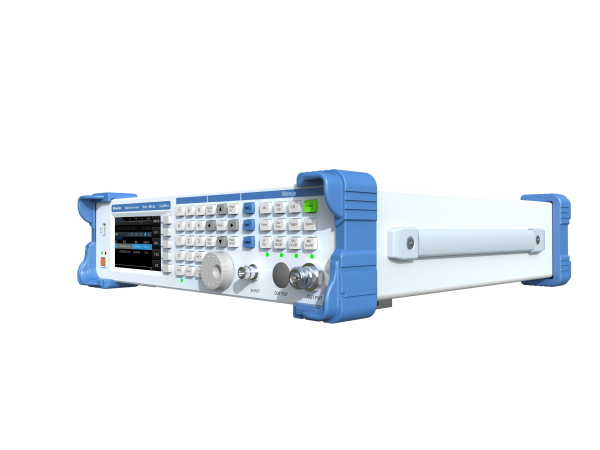

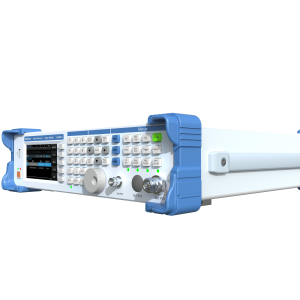

SG2200A Microwave Signal GeneratorThe frequency range from 9kHz to 20.0GHz
$27660
The 2200A is a high-performance microwave signal generator, with an output frequency range from 9kHz to 20GHz. It provides comprehensive modulation solutions such as: standard AM/FM/ΦM analog modulation and standard pulse modulation.
Besides, The SG2000 instrument with frequency/ amplitude sweep function and low frequency signal function. In addition, The SG2000 also features standard 2U height, small size and light weight, and convenient interface make it is an ideal tool for communication, instrumentation, R&D, education, production and maintenance.
- Description
- Additional information
Description
SPEC
|
Spectrum Analyzer |
|
|
SG2200A Microwave Signal Generator |
|
|
SG2200A |
|
|
The 2200A is a high-performance microwave signal generator, with an output frequency range from 9kHz to 20GHz. It provides comprehensive modulation solutions such as: standard AM/FM/ΦM analog modulation and standard pulse modulation. |
|
|
Property |
Value |
|
Frequency Range |
9kHz to 20GHz |
|
Setting range |
Maximum output power:+10dBm |
|
SSB phase noise(@ 10KHz , f= 1GHz) |
≤ – 115dBc/Hz |
|
Display |
4 . 3 “ |
|
Model Type |
Portable |
|
Power |
AC |
|
Dimensions |
385mmx103mmx410mm |
|
Features |
|
|
Pure Continuous Wave output, typical phase noise ≤ – 115dBc/Hz@10KHz |
|
|
Standard analog modulation: AM/FM/ФM |
|
|
Pulse modulation with an on-off ratio of up to 70dB |
|
|
Applications |
|
|
Primarily utilized in the electronic communications industry and microwave electronic measurement sectors, it is also well-suited for educational and research purposes, product development, manufacturing, maintenance. and other related scenarios. |
|
|
|
|
|
|
|
Datasheet
Characteristics
Analog Modulationl
AM/FM/ФM
Low Frequency Output
low-frequency output: sine waves, square waves, triangular waves,and sawtooth waves
Pulse Modulation
Pulse modulation with minimum pulse width of 100ns, supportingInternal/External pulse modulation input, External trigger input
Pure Continuous Wave
Outputting signals at various frequencies and amplitudes Output dynamic range ofup to 130 dBm.
Step Sweep Signal
The signal generator is capable of generating sweep signals withequal steps, including three sweep modes: frequency sweep,amplitude sweep, and frequency + amplitude sweepSweep type:Step sweep,List sweep
