SMA 27 GHz, 0.012″ Accept Pin Diameter, 4 Hole .375 x 500″ Mounting Flange Male Connector
Model D551-P09-F03 is a Male connector. SMA Connector utilizes the basic PTFE dielectric interface and features low nd less than -100 dB RF leakage.The thick outer conductor wall provides great durability to assure reliability in repeat mating, enhancing component performance.
SMA Connector offers the frequency range from DC to 27 GHz. SMA Connector has 4 Hole .375 x 500″ mounting and accept pin diameter is 0.012″inches.
- Description
- Additional information
- Reviews (0)
Description
SPEC
|
SMA Connector |
|
|
SMA 27 GHz, 0.012″ Accept Pin Diameter, 4 Hole .375 x 500″ Mounting Flange Male Connector |
|
|
D551-P09-F03 |
|
|
Model D551-P09-F03 is a Male connector. SMA Connector utilizes the basic PTFE dielectric interface and features low nd less than -100 dB RF leakage.The thick outer conductor wall provides great durability to assure reliability in repeat mating, enhancing component performance. SMA Connector offers the frequency range from DC to 27 GHz. SMA Connector has 4 Hole .375 x 500″ mounting and accept pin diameter is 0.012″inches. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
DC |
|
Max. Frequency (GHz) |
27 |
|
Flange (inch) |
.375 x 500″ |
|
Mounting |
4 Hole |
|
Accept Pin Diameter (inch) |
0.012″ |
|
Gender |
Male |
|
Features |
|
|
Low VSWR |
|
|
Free through 27 GHz |
|
|
Applications |
|
|
Telecom Communication |
|
|
Sub-assemblies |
|
|
Radio equipment and instruments |
|
|
Wireless Communication |
|
|
Test Labs |
|
|
Instrumentations |
|

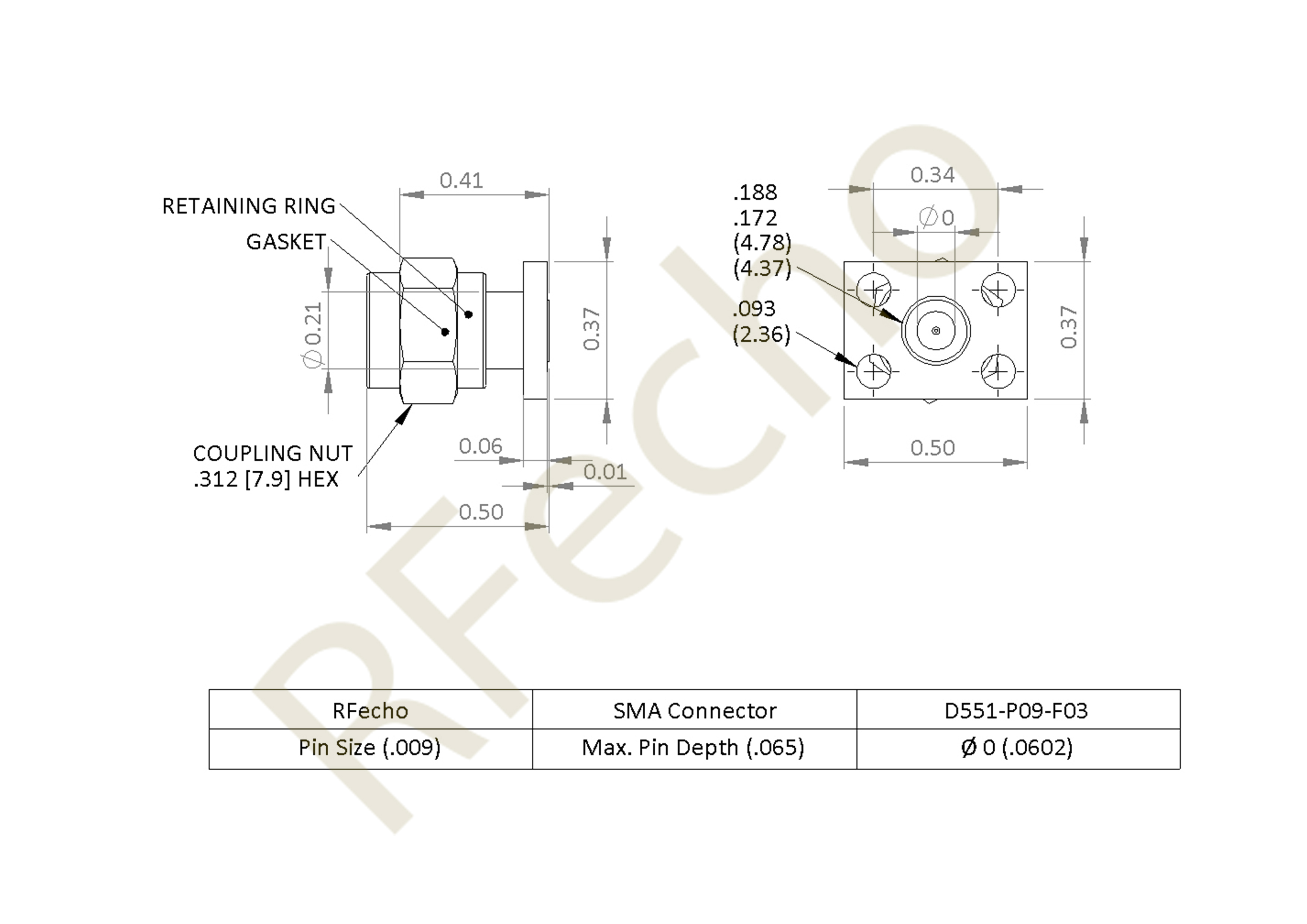

Outline

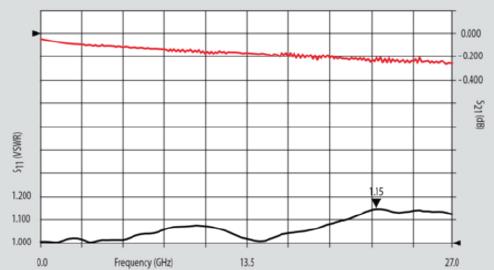

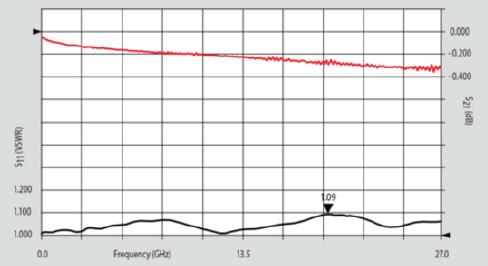

Plot
Additional information
| Min. Frequency (GHz) | DC |
|---|---|
| Max. Frequency (GHz) | 27 |
| Flange (inch) | |
| Mounting | |
| Accept Pin Diameter (inch) | |
| Gender |
