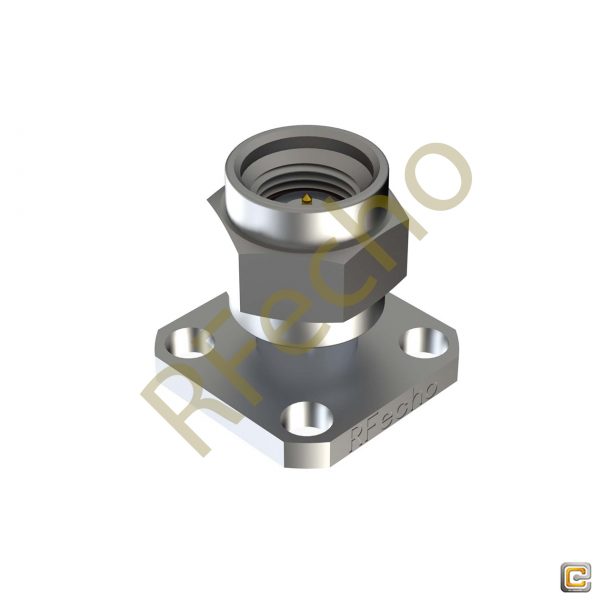

SMA 27 GHz, 0.018″ Accept Pin Diameter, 4 Hole .500 Square″ Mounting Flange Female Connector
Model D551-P20-F01 is a Female connector. SMA Connector utilizes the basic PTFE dielectric interface and features low nd less than -100 dB RF leakage.The thick outer conductor wall provides great durability to assure reliability in repeat mating, enhancing component performance.
SMA Connector offers the frequency range from DC to 27 GHz. SMA Connector has 4 Hole .500 Square″ mounting and accept pin diameter is 0.018″inches.
- Description
- Additional information
- Reviews (0)
Description
|
SMA Connector |
|
|
SMA 27 GHz, 0.018″ Accept Pin Diameter, 4 Hole .500 Square″ Mounting Flange Female Connector |
|
|
D551-P20-F01 |
|
|
Model D551-P20-F01 is a Female connector. SMA Connector utilizes the basic PTFE dielectric interface and features low nd less than -100 dB RF leakage.The thick outer conductor wall provides great durability to assure reliability in repeat mating, enhancing component performance. SMA Connector offers the frequency range from DC to 27 GHz. SMA Connector has 4 Hole .500 Square″ mounting and accept pin diameter is 0.018″inches. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
DC |
|
Max. Frequency (GHz) |
27 |
|

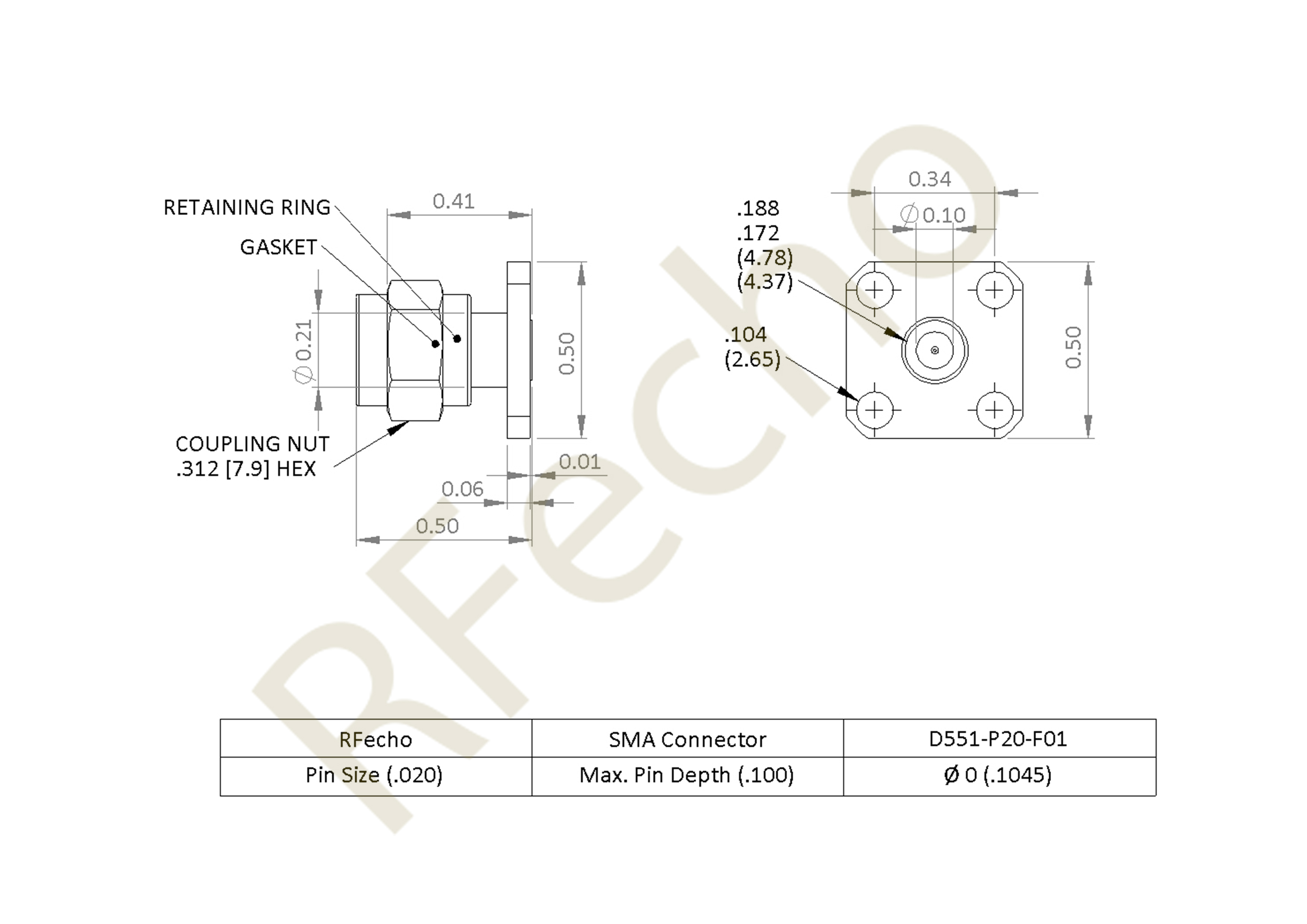

Flange (inch) |
.500 Square″ |
|
Mounting |
4 Hole |
|
Accept Pin Diameter (inch) |
0.018″ |
|
Gender |
Female |
|
Features |
|
|

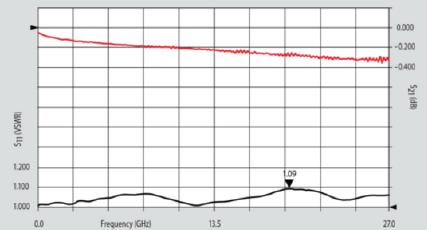

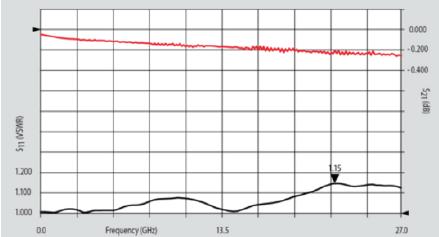

Low VSWR |
|
|
Free through 27 GHz |
|
|
Applications |
|
|
Telecom Communication |
|
|
Sub-assemblies |
|
|
Radio equipment and instruments |
|
|
Wireless Communication |
|
|
Test Labs |
|
|
Instrumentations |
|
Additional information
| Min. Frequency (GHz) | DC |
|---|---|
| Max. Frequency (GHz) | 27 |
| Flange (inch) | |
| Mounting | |
| Accept Pin Diameter (inch) | |
| Gender |
