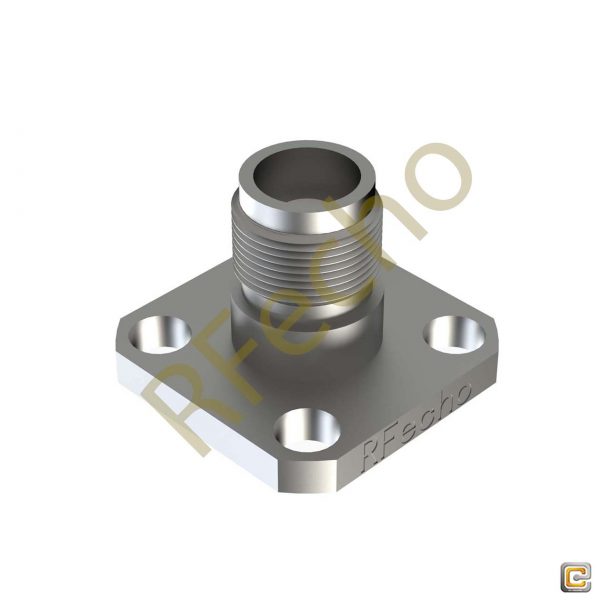

SMA 27 GHz, 0.036″ Accept Pin Diameter, 4 Hole .500 Square″ Mounting Flange Male Connector
Model D590-P36-F01 is a Male connector. SMA Connector utilizes the basic PTFE dielectric interface and features low nd less than -100 dB RF leakage.The thick outer conductor wall provides great durability to assure reliability in repeat mating, enhancing component performance.
SMA Connector offers the frequency range from DC to 27 GHz. SMA Connector has 4 Hole .500 Square″ mounting and accept pin diameter is 0.036″inches.
- Description
- Additional information
- Reviews (0)
Description
SPEC
|
SMA Connector |
|
|
SMA 27 GHz, 0.036″ Accept Pin Diameter, 4 Hole .500 Square″ Mounting Flange Male Connector |
|
|
D590-P36-F01 |
|
|
Model D590-P36-F01 is a Male connector. SMA Connector utilizes the basic PTFE dielectric interface and features low nd less than -100 dB RF leakage.The thick outer conductor wall provides great durability to assure reliability in repeat mating, enhancing component performance. SMA Connector offers the frequency range from DC to 27 GHz. SMA Connector has 4 Hole .500 Square″ mounting and accept pin diameter is 0.036″inches. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
DC |
|
Max. Frequency (GHz) |
27 |
|
Flange (inch) |
.500 Square″ |
|
Mounting |
4 Hole |
|
Accept Pin Diameter (inch) |
0.036″ |
|
Gender |
Male |
|
Features |
|
|
Low VSWR |
|
|
Free through 27 GHz |
|
|
Applications |
|
|
Telecom Communication |
|
|
Sub-assemblies |
|
|
Radio equipment and instruments |
|
|
Wireless Communication |
|
|
Test Labs |
|
|
Instrumentations |
|

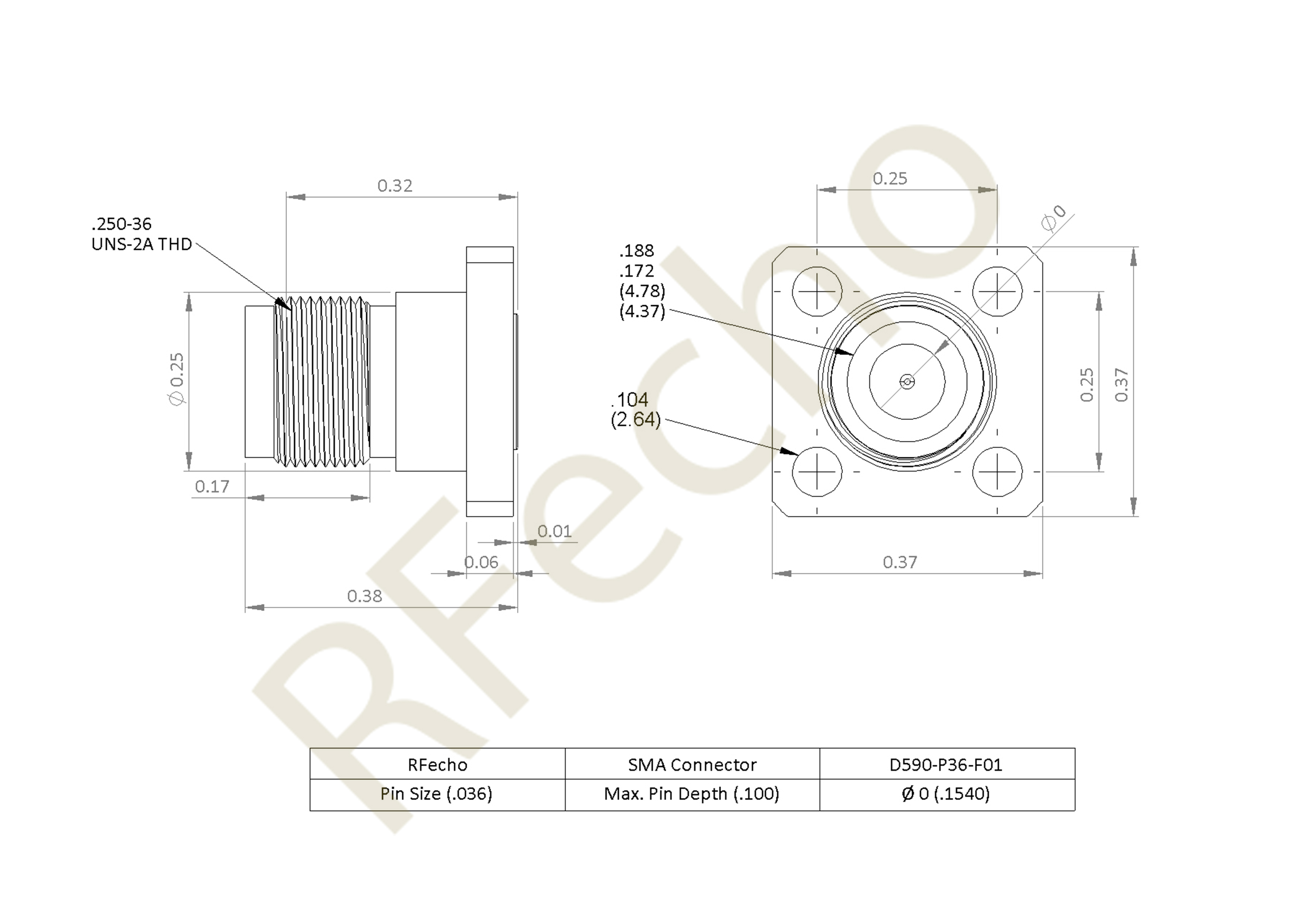

Outline

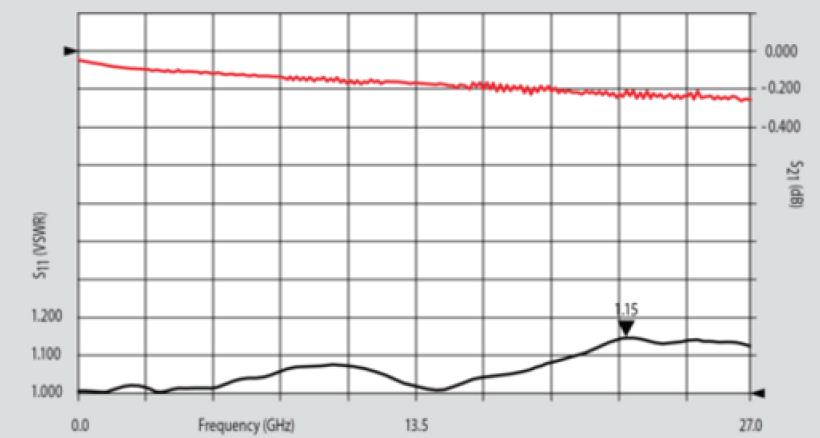

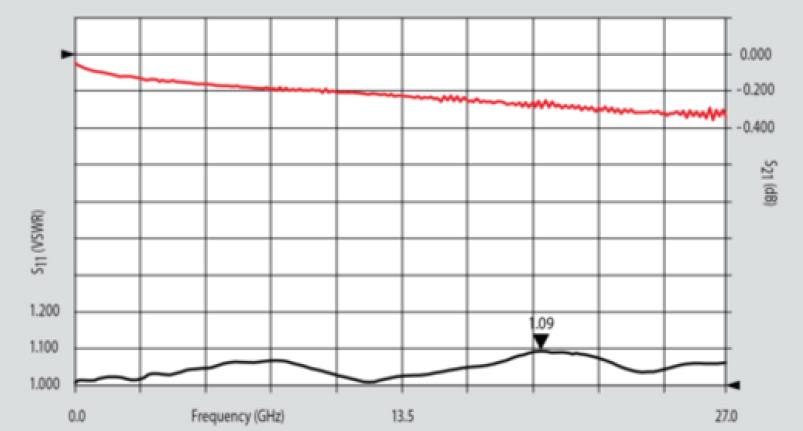

Plot
Additional information
| Min. Frequency (GHz) | DC |
|---|---|
| Max. Frequency (GHz) | 27 |
| Flange (inch) | |
| Mounting | |
| Accept Pin Diameter (inch) | |
| Gender |
