TNC 18 GHz, 0.036″ Accept Pin Diameter, 4 Hole .687″ Square Mounting Flange Female Connector

TNC 18 GHz, 0.036″ Accept Pin Diameter, 4 Hole .687″ Square Mounting Flange Female Connector

This Mode D400-P36-F07 is a Female connector. TNC connectors are durable, operational temperature rating of -55°C to +165°C, lowest VSWR and RF leakage (≤ -100 dB). TNC Connectors offer the frequency range from DC to 18 GHz.

In TNC Connectors the mounting method is 4 Hole, where the flange sizes is.687″ Square. This model of TNC Connectors provide the accept pin diameter of 0.036″inches.

SKU: D400-P36-F07 Categories: Adapters and Connectors, RF Connector TNC, RF Connectors

Description

SPEC

TNC Connector

TNC 18 GHz, 0.036″ Accept Pin Diameter, 4 Hole .687″ Square Mounting Flange Female Connector

D400-P36-F07

This Mode D400-P36-F07 is a Female connector. TNC connectors are durable, operational temperature rating of -55°C to +165°C, lowest VSWR and RF leakage (≤ -100 dB). TNC Connectors offer the frequency range from DC to 18 GHz.

In TNC Connectors the mounting method is 4 Hole, where the flange sizes is.687″ Square. This model of TNC Connectors provide the accept pin diameter of 0.036″inches.

Property

Value

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

18

Flange (inch)

.687″ Square

Mounting

4 Hole

Accept Pin Diameter (inch)

0.036″

Gender

Female

Features

Low VSWR

Free through 18 GHz

Applications

Telecom Communication

Sub-assemblies

Radio equipment and instruments

Wireless Communication

Test Labs

Instrumentations

PDF

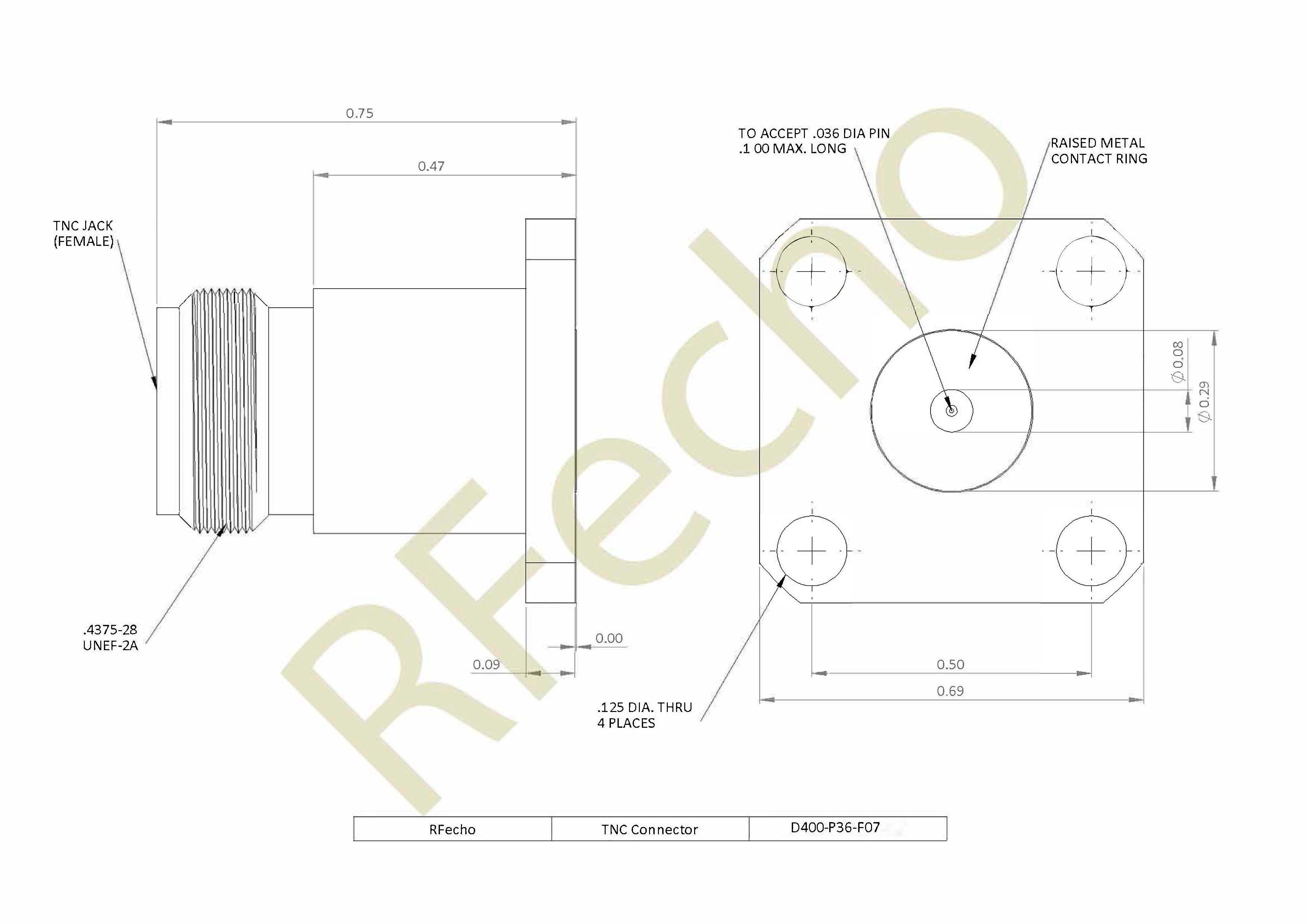

Outline

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

18

Flange (inch)

.687″ Square

Mounting

4 Hole

Accept Pin Diameter (inch)

0.036″

Gender

Female
