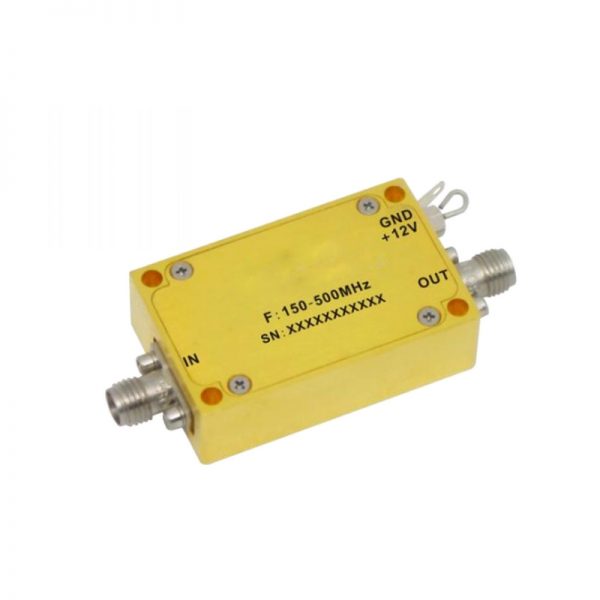

Ultra Wide Band Low Noise Amplifier From 0.15GHz to 0.5GHz With a Nominal 26dB Gain NF 0.7dB SMA Connectors
• Gain: 26dB Typical
• Noise Figure: 0.7dB Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +12V
• 50 Ohm Matched Input / Output
- Description
- Additional information
Description
Key Specifications
• Gain: 26dB Typical
• Noise Figure: 0.7dB Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +12V
• 50 Ohm Matched Input / Output
Data Sheet ( Download Datasheet PDF )
138-OLNA100150050B
Applications
• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument
