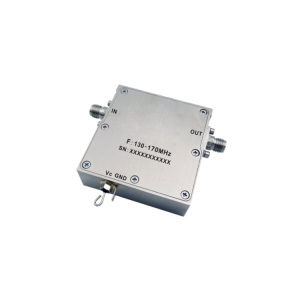

Voltage Control Phase Shifter 0.13GHz – 0.17GHz . OVCPS00130017A
RFECHO Voltage Control Phase Shifter from 0.13GHz to 0.17GHz 。 Rf echo voltage control phase shifter has the characteristics of low insertion loss and low phase error, single control operation and so on. As an application, it is widely used in radar systems, missile attitude control, accelerators, communication systems, instruments and meters, etc.
- Description
- Additional information
- Reviews (0)
Additional information
| Min. Frequency (GHz) | 0.13 |
|---|---|
| Max. Frequency (GHz) | 0.17 |
| Phase Range (deg) | 360 |
| Phase Accuracy (deg) | ±20 |
| Insertion Loss (dB) | 2.5 |
| VSWR | 1.5 |
| Average Power(W) | 1 |
