The Role of Cable and Connectors in Reducing Signal Loss for Antennas Setup

In the domain of wireless communication, antennas act as essential links, transforming electrical impulses into electromagnetic waves and back again. To guarantee the best performance of these vital parts, every piece in the arrangement—particularly cables and connectors—greatly influences the reduction of signal weakening. Grasping how these apparently minor elements affect signal decline is crucial for creating effective and dependable antenna systems.

Why Signal Loss Matters

Signal loss, or attenuation, happens when a signal diminishes as it moves through cables and connectors. In antenna configurations, this may lead to shorter reach, subpar data delivery, or inconsistent connections. Elements like cable length, material excellence, and connector suitability all play a role in signal reduction. For uses such as RF communication, satellite networks, or wireless setups, curbing signal loss is vital to sustain efficiency and ensure steady linkage.

Cables in Signal Preservation

The cable linking the transmitter or receiver to the antenna isn’t merely a passive channel. Instead, it actively contributes to signal maintenance. The caliber of the coaxial cable heavily impacts the potency of the signal arriving at its endpoint.

How Cable Quality Affects Signal Strength

Inferior cables often experience greater weakening due to substandard materials or weak shielding. For example, cables with poor insulation permit electromagnetic interference (EMI) to disrupt signals.

Key Cable Features That Minimize Loss

• Thickness: Typically, broader cables show reduced signal decline than slimmer ones. This is because they usually boast a larger central conductor and enhanced shielding.
• Material Excellence: Cables crafted with superior, low-resistance metals like copper for the conductor and shielding lessen ohmic losses.
• Shielding Strength: A thick, well-built braided shield is critical. It curbs external electromagnetic interference and stops signal escape.
• Low Loss Dielectric: Dielectric materials with minimal loss tangents decrease dielectric losses. This is especially true at elevated frequencies.
• Frequency Factors: Signal decline rises with frequency. Thus, picking a cable with lower weakening traits at the target operating frequency is key.
• Length: The simplest method to cut cable loss is to shorten the cable span. Even the finest cable will suffer notable loss over vast distances.

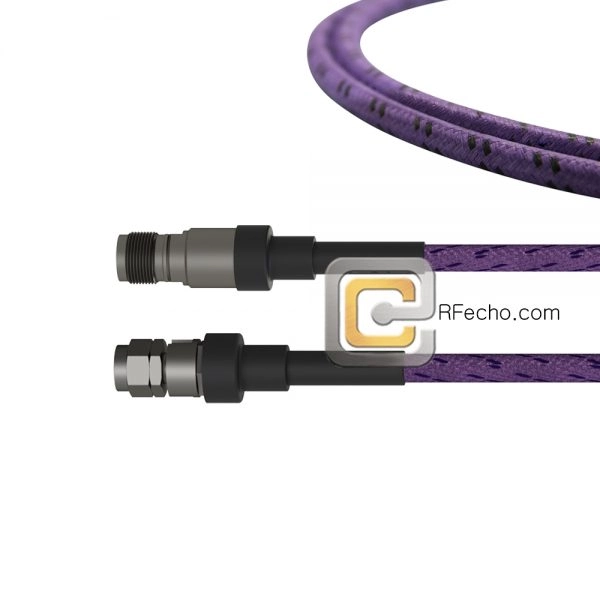

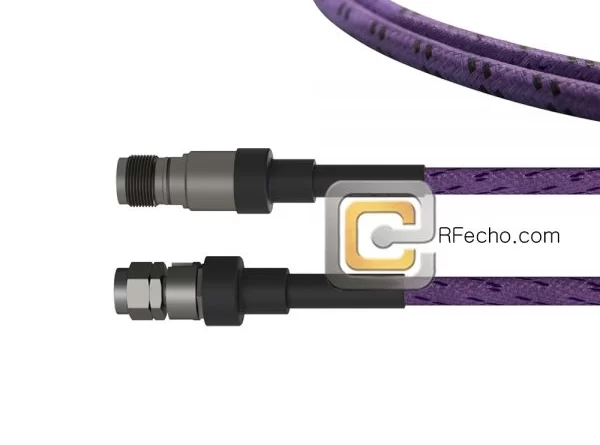

RFecho’s coaxial cables, like the 2.4 Female to 2.4 Male 40 GHz OM-160Flex Coax, showcase these attributes. They deliver consistent performance for high-frequency uses.

Connectors in Signal Preservation

Connectors function as the vital bridge between cables and antenna parts. Their structure and compatibility markedly influence signal purity.

The Impact of Connector Design on Signal Integrity

Badly crafted connectors cause impedance mismatches. This leads to signal bounces and loss. Well-made connectors, such as RFecho’s 1.0mm 110 GHz Female Connector, are built with accuracy. They reduce insertion loss and ensure smooth signal flow. Traits like precise tolerances and rust-resistant materials boost durability and efficiency too.

Common Connector Styles for Antenna Efficiency

Various connector types fit specific antenna needs. Here’s a brief rundown:

RFecho’s RF Connectors collection includes these choices. They’re designed to lessen signal loss across varied configurations.

Matching Cables and Connectors for Optimal Results

Achieving peak signal upkeep demands careful alignment of impedance among the antenna, cable, and connectors. Standard coaxial cable impedances are usually 50 Ohm or 75 Ohm. Using parts with unmatched impedances—for instance, a 50 Ohm cable with a 75 Ohm connector or antenna—triggers signal reflections at the mismatch point. This causes return loss and lowers the power sent to the antenna or receiver. So, it’s essential to confirm all parts in the antenna system share the same impedance rating.

RFecho: Your Trusted Partner for Cables and Connectors

At RFecho, we recognize the pivotal role that excellent cables and connectors play in securing ideal antenna performance. As specialists in RF and microwave elements, we provide a wide array of cables and connectors. These are crafted to curb signal loss across diverse frequency ranges and uses. Whether you need durable connectors for tough settings or low-loss cables for vital communication links, RFecho offers trustworthy answers. Check out our range of RF connectors.

Conclusion

In summary, picking and using cables and connectors are central to cutting signal loss in any antenna arrangement. Understanding what drives attenuation is key. Selecting superior cables with suitable loss traits is equally important. Pairing them with well-matched and properly fitted connectors boosts performance and dependability in wireless communication setups. Keep in mind that a smartly planned antenna system accounts for every part. Cables and connectors are indispensable in upholding signal purity. Browse the extensive options at RFecho to find the perfect cable and connector solutions for your unique needs.
