What Are the Differences Between Rectangular Waveguides and Circular Waveguides?
Fundamental Design Characteristics and Mode Propagation
The basic structure of a waveguide greatly shapes its electromagnetic traits and mode behavior.
Shape and Mode Support
Rectangular and circular waveguides vary widely in their physical forms. This leads to unique ways of guiding electromagnetic waves. Here’s a comparison table:
Application | Rectangular Waveguides | Circular Waveguides |
Radar Technology | Preferred for high power, low loss (e.g., X-band, 8-12 GHz) | Used in systems needing circular motion |
Aerospace | Less common, lacks flexibility under stress | Ideal for mobile radar due to durability, flexibility |
Telecommunications | Favored for satellite links (cost-effective, low attenuation) | Suits circular polarization (e.g., broadcasting, radar joints) |
The waveguide’s form determines which electromagnetic waves it can carry.
Cut-off Frequency
The cut-off frequency marks the point below which a mode stops traveling. It differs notably between rectangular and circular waveguides due to their distinct cross-sectional designs. This trait heavily affects their use based on frequency needs. Here’s a comparison:
Aspect | Rectangular Waveguide (WR-90) | Circular Waveguide (3.1 cm Diameter) |
Dimensions | 2.286 cm x 1.016 cm | 3.1 cm diameter |
Dominant Mode | TE10 | TE11 |
Cut-off Frequency | 6.56 GHz | 5.17 GHz |
Typical Applications | X-band radar, satellite communication | Radar, telecommunications |
Operating Range | 8.2-12.4 GHz | Similar range, broader lower frequencies |
Cost Impact | Higher for narrower bands | Lower for wider, softer frequencies |
For rectangular waveguides, each mode ties to a specific cut-off frequency based on its width and height. This suits X-band radar and satellite links. Circular waveguides of similar size show a gentler cut-off for their main mode. Choosing them can save money for satellite links needing wider spans and lower frequencies.
The cut-off frequency is a vital factor in picking waveguides. It sways both size and expense of the setup.
Power Handling and Loss
Power handling and loss are key elements in judging waveguide fit for various tasks.
Power Handling
Rectangular waveguides shine with their superb power-handling skills. Their broader surfaces allow heat to spread out efficiently. They often serve in high-power radar setups, like air traffic control systems at 10 GHz. Here, they handle about 1 megawatt peak pulse power. Such systems need strong power handling to avoid signal twists or breakdowns.
Power Loss
In rectangular waveguides, power loss drops thanks to their flat sides. These shorten current travel time, cutting conductor losses and resistance. Circular waveguides, however, tend to lose more power. Their longer conduction paths are to blame. Though the loss gap might be tiny—around 0.1 dB/m—it matters in systems like microwave relay networks.
Rectangular waveguides typically outshine circular ones in power handling and energy retention.
Bandwidth and Frequency Response
Rectangular straight waveguides deliver top-notch results in keeping single-mode action over broad frequency ranges. Their boxy shape creates a larger gap between the base mode and higher ones. This offers a wider usable bandwidth than circular options. This quality is precious in systems craving precise frequency control and low mode mixing. Surface treatments can boost frequency response further. Special designs can also tweak bandwidth for specific needs.
Application-Specific Considerations
Choosing between rectangular and circular waveguides often rests on the task’s unique needs. Here’s a comparison table:
Application | Rectangular Waveguides | Circular Waveguides |
Radar Technology | Preferred for high power, low loss (e.g., X-band, 8-12 GHz) | Used in systems needing circular motion |
Aerospace | Less common, lacks flexibility under stress | Ideal for mobile radar due to durability, flexibility |
Telecommunications | Favored for satellite links (cost-effective, low attenuation) | Suits circular polarization (e.g., broadcasting, radar joints) |
Radar Technology
Rectangular waveguides pop up often in radar tech. They send high power with scant signal loss. They’re especially apt for X-band radar systems, like air traffic control, spanning 8 to 12 GHz. The TE10 mode in rectangular waveguides focuses microwave energy tightly. This is crucial for accurately heating radar targets.
Aerospace Applications
Circular waveguides lead in aerospace uses. Their adaptability and toughness shine under shifting pressures and temperatures. The round shape resists shakes, twists, and bends well. It keeps signals steady. This makes them perfect for mobile radar in vehicles and planes where strength and flex are key.
Telecommunications
In telecom, rectangular waveguides win for satellite links. They’re budget-friendly and lose less signal. Crafting them is simpler and cheaper, yielding big savings. Circular waveguides, though, fit systems needing circularly polarized waves. Think broadcasting antennas or spinning radar joints.
Manufacturing and Handling Considerations
How waveguides are made and managed also shapes their fit for a job.
Cost
Rectangular waveguides usually cost less to craft than circular ones. They’re cut from flat metal sheets, needing simpler tools. For instance, a rectangular waveguide for an X-band radar might be 30% cheaper than a circular one. This price edge makes them a smart pick when bulk matters.
Structural Strength and Flexibility
Circular waveguides deliver steady material quality and greater durability. Their even cross-section stands out. They’re ideal where external forces hit, like in aerospace. The round form shrugs off vibrations and bends, keeping signals true. Plus, they skip exact inner alignment, resisting jams better.
Antenna Parameters
Several antenna traits tie closely to waveguide performance. These help outline how an antenna works.
- Gain: Gauges energy an antenna can beam, factoring in feed losses. Higher gain sends more power one way.
- Half Power Beam Width (HPBW): The angle between half-power points of the main lobe. It shows an antenna’s focus.
- Return Loss/VSWR: The share of energy bounced back to the input. It reveals system match quality.
- Efficiency: The ratio of radiated energy to supplied energy, counting all losses.
- Polarization: The path electrical energy swings in—linear, circular, or elliptical.
AEM Antennas can offer more details on these traits.
RFecho: Your Reliable Waveguide Supplier

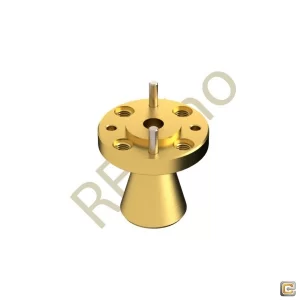

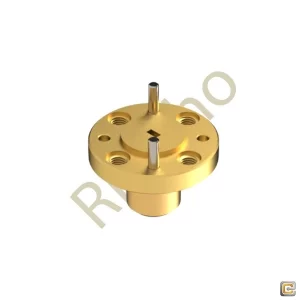

RFecho excels in crafting high-performing antennas and microwave parts. Their range includes standard gain horns, reflector antennas, and various waveguide pieces. RFecho pledges top-quality service and aids customers in hitting their targets.
Conclusion
To wrap up, both rectangular and circular waveguides are vital cogs in RF and microwave systems. Yet, they bring unique perks and drawbacks. Rectangular waveguides shine in tasks needing high power, single-mode runs, and thriftiness. They’re perfect for radar and satellite links. Circular waveguides, with their bendability and mode variety, suit aerospace and circular polarization needs better. Grasping these contrasts is essential for engineers and designers. It helps them pick the best waveguide setup for their aims.
