What is the difference between wide band horn antenna and standard gain horn antenna?

If you are in RF engineering, you may have known about horn antennas. These are among the most vital elements that enable the proper transmission and receiving of electromagnetic waves. But do you know that different types of horn antennas serve different purposes? In this article, two broad categories of wide band and standard gain horn antennas are reviewed with respect to their characteristic features, applications, and differences. By the end of this, you shall have a clear view on which kind of horn antenna suits your specific needs best.

Basics of Horn Antenna

It’s relevant that, before going into the details of both wide band and standard gain antennas, one should have an idea of what horn antennas are and why they are important. A horn antenna is a most commonly used type of microwave antenna characterized by a relatively simple structure, broadband capability, high gain, and high efficiency. They act like a transitional structure between a guiding device, say a waveguide, and free space. Their design, usually in the form of a flared, hollow pipe, enables them to focus radio waves into a beam.

What Constitutes a Horn Antenna?

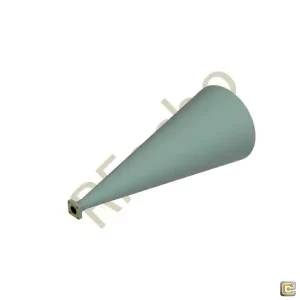

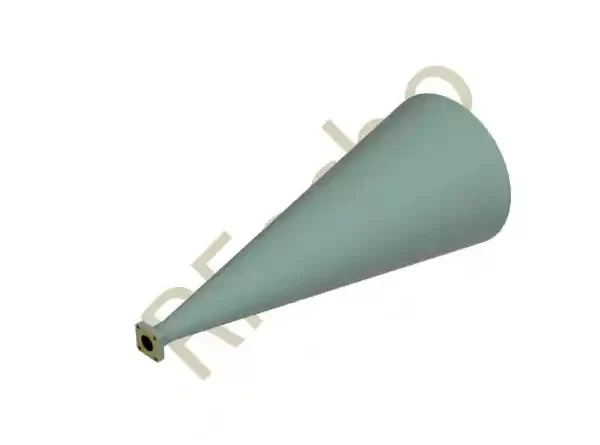

A horn antenna can be viewed as a wave guide that expands gradually to a horn shape. Due to this design flare, the electromagnetic waves from the waveguide can smoothly transition to free space with minimum reflection and maximum transmission of signals. These horn antennas come in different cross-sectional configurations: rectangular, circular, or conical. The geometrical shape of the horn antenna greatly influences its performance characteristic.

Why Horn Antennas Matter?

The main reason why horn antennas are so important is that they can transmit and receive electromagnetic waves with high gain and directivity. This attributes them to a wide application field, including antenna measurements, wireless and satellite communications, radar systems, and high-resolution imaging. Currently, there is also strong interest in Enhanced Ultra High Throughput Wireless Communication Systems, where horns can be employed. In addition, they usually serve as feed antennas for larger reflector antennas. Reliability and performance have made them indispensable in the field of radio transmission.

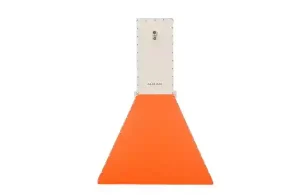

Diving into Wide band Horn Antennas

Now that you have some notion about what horn antennas are, let’s take part in the world of wide band horn antennas. The devices shall be designed for practical, effective operation in the range of a very large band of frequencies for flexibility and ease in many applications. To develop your appreciation for their uses across these different scenarios, here will help understand their key capabilities and features.

Definition of Wide band Capabilities

The wide band horn antenna, as the name would suggest, is one designed to work within a wide range of frequencies. Unlike tuned frequency antennas, wide band antennas are capable of working within multiple octaves, an attribute quite significant in many applications. Wide band allows for flexibility of use and minimizes the need for multiple specialized antennas.

Key Features of Wide band Horns

When considering wide band horn antennas, some of the most striking features are listed below. These qualities make these antennas quite convenient for applications that are extremely demanding and where performance must be consistent over a wide range of frequencies.

• Broad Frequency Coverage and Bandwidth: These antennas can operate over a wide range of frequencies, thereby enabling you to transmit or receive signals over various frequency bands.
• Variable Gain Across the Spectrum: The gain of wideband horn antennas may be frequency-dependent. That is, the amplification of the antenna signal may change with a change in frequency.
• Linear Polarization: Most wideband horn antennas support linear polarization, meaning they can transmit and receive radio waves in only one plane.
• Low VSWR: The wideband horn antennas usually have a low Voltage Standing Wave Ratio, which means they are pretty effective in the power transfer with minimum signal reflection.

Common Applications

Wideband horn antennas are helpful where operation with flexibility in frequency is required. The typical applications include but are not limited to:

• Wireless and Telecom Testing: These antennas, because of their wide frequency range, are suitable for testing different wireless and telecom communication systems and components.
• General Signal Transmission and Reception: They can be used for transmitting and receiving wireless signals across a wide spectrum. ·Measurement of Weak Signals: The low VSWR and high gain characteristics make them suitable for measuring weak signals. ·Generation of High Field Strengths: Wideband horn antennas can generate high field strengths without significant return loss.

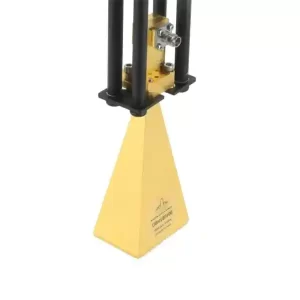

Understanding Standard Gain Horn Antennas

In contrast to wide band horn antennas, which suit a broad array of capabilities, standard gain horn antennas use more narrow applications. Given their performance and stable, predictable gains, they form indispensable parts in many measurement and calibration applications. With this definition in mind, let us consider some general characteristics of these standard gain horn antennas.

Defining Standards of Gain

Standard Gain Horns are a kind of microwave horn antenna offering, during some frequency range, constant levels of gain. These antennas are designed for providing well-defined gain highly critical for measurement with high accuracy. Standard gain horn antennas have a sometimes predictable pattern of radiation and hence are also referred to as Microwave Gain Horn antennas.

Standard Gain Horns Salient features

Some features make standard gain horn antennas suited for certain applications because they are peculiar to them. That is to say:

• Operating within Specific Frequency Ranges: Standard gain horn antennas are usually designed to operate within specific frequency ranges.
• Constant Gain: These antennas offer a very stable gain throughout their intended frequency range, which is fundamental to the accomplishment of proper measurements and calibrations.
• Usually Linear Polarization: Most of the standard gain horn antennas transmit and receive radio waves in one plane.
• Precision Construction: These antennas are made to precision for consistency in performance and reliability.

Applications

Standard gain horn antennas perform in a very stable and predictable manner; therefore, these are quite useful in applications like:

• Calibration of Other Antennas: Standard gain horn antennas are often used as reference antennas for calibration of other antennas due to their very well-defined and predictable radiation patterns.
• Standard Field Strength Measurements: They are used for the measurement of field strength with great accuracy, hence presenting reliable test results.
• Standard Field Strength Generation: Such antennas can be used for the generation of standard field strengths for different testing applications.
• Feed for Reflectors and Lenses: Standard gain horn antennas are often used as feed antennas for larger reflector or lens antennas.
• Sampling Power: They can also be employed as probe horns for sampling power in various RF setups.

Side-by-Side Comparison: Wide band versus Standard Gain

Now that you have learned about both wide band and standard gain horn antennas, let’s compare them side by side to outline some key differences. The following section will make clear the differences between these antennas on the basis of frequency range, gain, and application focus so that you can choose an appropriate type for your specific application.

Frequency Range: Breadth versus Specificity

Probably the most obvious difference between wide band and standard gain horn antennas is the frequency range over which they operate. Because of this, the wide band antennas are highly versatile, operating as they do over a wide range of frequencies. For this reason, it’s best in applications that demand flexibility. Standard gain horn antennas, on the other hand, are designed for use over specific bands and hence give stable performance over the bands. That again makes them ideal for such precise jobs as calibration and measurement.

Variable Gain versus Stable Gain Characteristics:

The other important difference is in gain characteristics. Wide band horn antennas normally have variable gains within their wide frequency range. The gain may also vary with the alteration of the operating frequency. On the other hand, the standard gain horn antennas are designed to provide a stable gain within their operational frequency range. This consistent gain is necessary for applications in which a steady and predictable signal strength is required or expected.

Application Focus: Versatility versus Precision

Eventually, the application focus tells the difference between these two varieties of antennas. Wide band horn antennas are designed to be universal, which makes them fit very well for general testing and all-purpose signal transmission tasks. Their capability for work in different frequency bands allows several tasks to be performed with one antenna only. Standard gain horn antennas are designed for precision, and that is why they should be used for calibration or specific measurements where performance is required to be stable and repeatable.

RFecho: Your Partner for Quality Horn Antennas

When considering your next purchase in horn antennas, it will be good to know you have a reliable supplier. RFecho is an expert in the high-performance antenna design and development from low frequencies up to THz frequencies. It also offers a wide range of wide band and standard gain horn antennas. Understanding the expertise and product range at RFecho will help you make an informed purchase.

RFecho’s Expertise in Horn Antenna Design and Manufacturing

RFecho is capable of designing standard gain horns, corrugated horns, and ridged horns. With over 15 years of experience in horn antenna design, their team of experts guarantees high-performance results through rigorous testing and practical solutions. RFecho is committed to offering quality products to meet your specific needs.

Variety of Horn Antenna Products

Some of the different types of horn antennas available at RFecho include a Broadband Dual Ridged Horn Antenna, Multi Octave Horn Antennas, Millimeter SGH Antennas, and Standard Gain Horn Antennas with Curve Edge. This broad selection will allow you to choose an antenna that matches your particular applications and needs. Other types of antennas in their portfolio also include other types of passive/active components.

Commitment to Quality, Performance, and Customization

RFecho values customer satisfaction and always works for quality products. In case of any special needs, RFecho can customize a horn antenna as per the requirement of its customer. Its performance and customization make it a reliable supplier in the industry.

Conclusion

To conclude, both wide band and standard gain horn antennas have significant applications in different areas of RF. Wide band antennas are ideal for general signal transmission, testing, and wide frequency coverage. Standard gain antennas are designed for precision: they offer applications such as calibration and field strength measurements with stable, predictable performance. Understanding these subtle differences will help you decide which antenna best fits the needs of your particular job. Consider the frequency range, gain characteristics, and primary applications of each to make a choice to meet your unique requirements.
