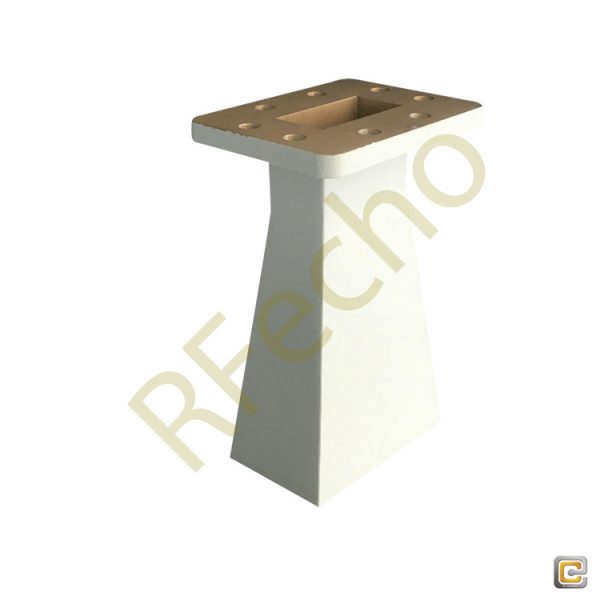

10 dBi Gain, 4.9 GHz to 7.1 GHz, WR-159 Waveguide Standard Gain Horn Antenna

HOT

10 dBi Gain, 4.9 GHz to 7.1 GHz, WR-159 Waveguide Standard Gain Horn Antenna

$588

This model OLB-159-10 is a Standard gain horn antenna that offers the gain of 10 dBi across the band and a square cover flange. It covers the frequency range from 4.9 GHz to 7.1 GHz. Standard gain horn antenna OLB-159-10 is known as a waveguide horn having the waveguide of WR-159.

It is manufactured using the precision electrode cut copper sections providing accurate, consistent, and reliable performance.
This antenna is suitable for Antenna Ranges, Antenna Gain Measurements, System Setups. HPBW of OLB-159-10 has an H-plane & V-Plane beamwidth of H 55° / V 55°. Standard gain horn antenna has a Linear polarization. The material in standard gain horn antenna is AI. The Impedance used Standard gain horn antenna is 50 ohms.

SKU: OLB-159-10 Categories: RF Antenna, Standard Gain Horn Antenna

Description

This model OLB-159-10 is a Standard gain horn antenna that offers the gain of 10 dBi across the band and a square cover flange. It covers the frequency range from 4.9 GHz to 7.1 GHz. Standard gain horn antenna OLB-159-10 is known as a waveguide horn having the waveguide of WR-159.

It is manufactured using the precision electrode cut copper sections providing accurate, consistent, and reliable performance.
This antenna is suitable for Antenna Ranges, Antenna Gain Measurements, System Setups. HPBW of OLB-159-10 has an H-plane & V-Plane beamwidth of H 55° / V 55°. Standard gain horn antenna has a Linear polarization. The material in standard gain horn antenna is AI. The Impedance used Standard gain horn antenna is 50 ohms.

SPEC

WR-159 Waveguide Standard Gain Horn Antenna

10 dBi Gain, 4.9 GHz to 7.1 GHz

OLB-159-10

Property

Value

Min. Frequency (GHz)

4.9

Max. Frequency (GHz)

7.1

Gain(dBi)

10

HPBW 3 dB Beamwidth

H 55° / V 55°

Waveguide

WR-159

Material

AI

Polarization

Linear

Impedance (?)

50

Cover Flange

square

Features

Precisely Machined and Gold Plated

Low VSWR

Light Weight

Linear Polarization

Low Return Loss

Rectangular Waveguide Interface

Lower sidelobes and symmetrical radiation patterns

Applications

Antenna Ranges

Antenna Gain Measurements

Array Elements

PDF

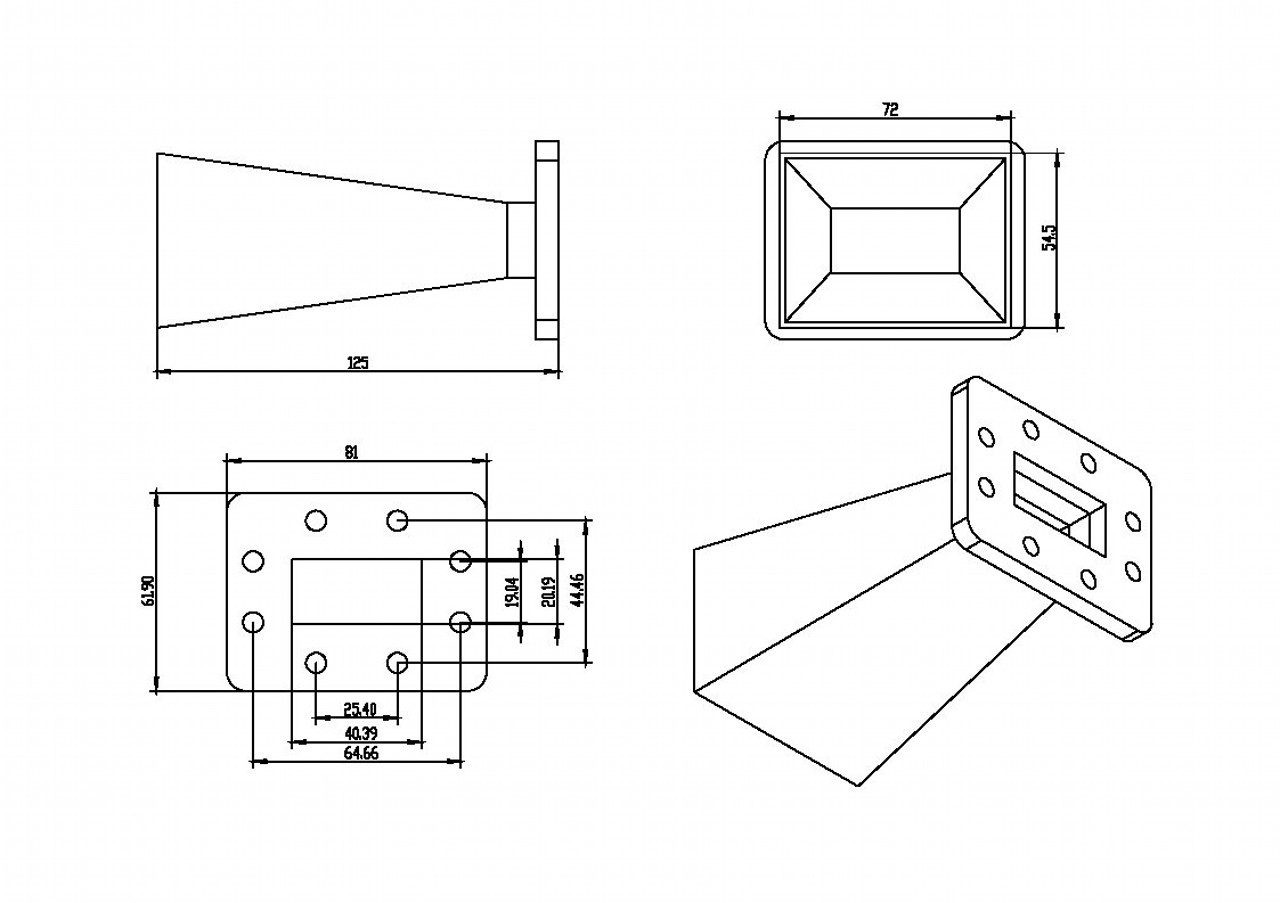

Outline

WR-159 Waveguide - Standard Gain Horn Antenna

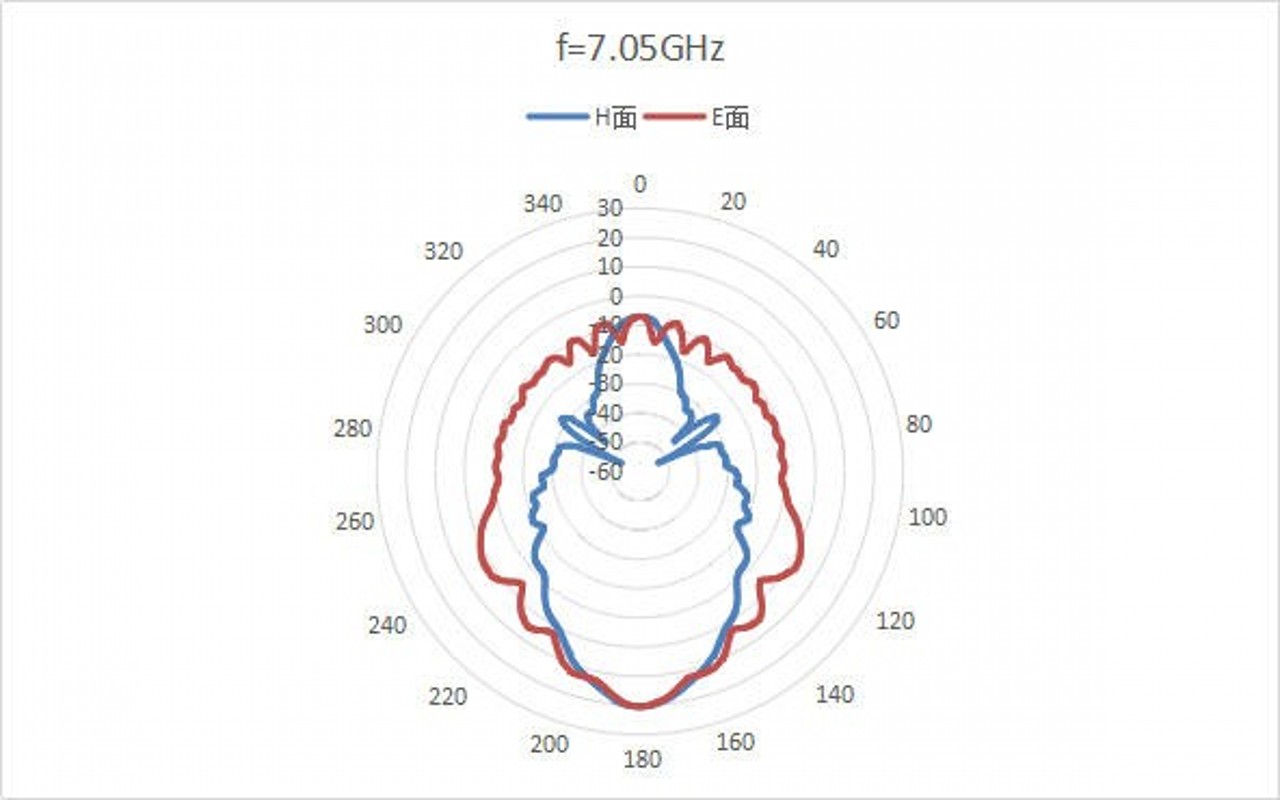

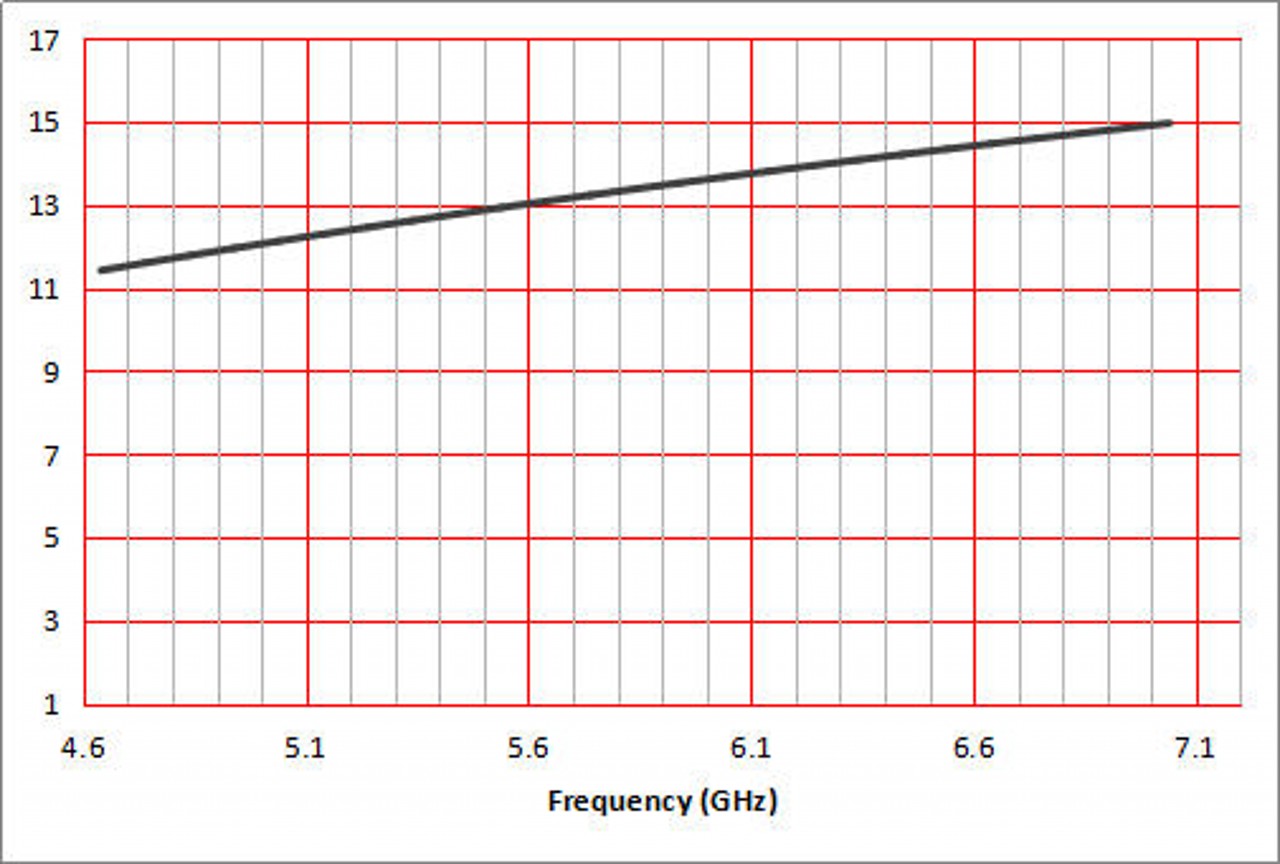

Plot

WR-159 Waveguide - 4.9GHz - 7.1GHz - Standard Gain Horn Antenna 2WR-159 Waveguide - 4.9GHz - 7.1GHz - Standard Gain Horn Antenna 1

Additional information

Min. Frequency (GHz)

4.9

Max. Frequency (GHz)

7.1

Gain (dBi)

10

Flange

square

HPBW 3 dB Beamwidth

H 55° / V 55°

Waveguide

WR-159

Material

AI

Polarization

Linear

Impedance (Ω)

50

Reviews

There are no reviews yet.


Be the first to review “10 dBi Gain, 4.9 GHz to 7.1 GHz, WR-159 Waveguide Standard Gain Horn Antenna”
