15 dBi Gain, 5.9 GHz to 8.2 GHz, WR-137 Waveguide Standard Gain Horn Antenna
$635

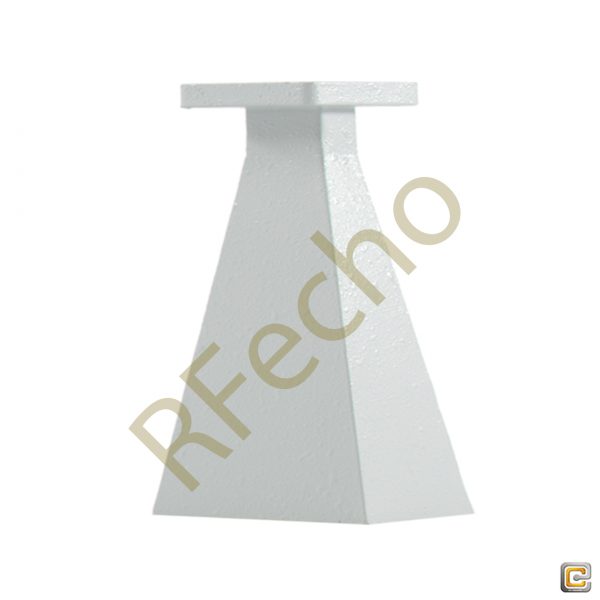

This model OLB-137-15 is a Standard gain horn antenna that offers the gain of 15 dBi across the band and a square cover flange. It covers the frequency range from 5.9 GHz to 8.2 GHz. Standard gain horn antenna OLB-137-15 is known as a waveguide horn having the waveguide of WR-137.
It is manufactured using the precision electrode cut copper sections providing accurate, consistent, and reliable performance.
This antenna is suitable for Antenna Ranges, Antenna Gain Measurements, System Setups. HPBW of OLB-137-15 has an H-plane & V-Plane beamwidth of H 30° / V 30°. Standard gain horn antenna has a Linear polarization. The material in standard gain horn antenna is AI. The Impedance used Standard gain horn antenna is 50 ohms.
- Description
- Additional information
- Reviews (0)
Description
This model OLB-137-15 is a Standard gain horn antenna that offers the gain of 15 dBi across the band and a square cover flange. It covers the frequency range from 5.9 GHz to 8.2 GHz. Standard gain horn antenna OLB-137-15 is known as a waveguide horn having the waveguide of WR-137.
It is manufactured using the precision electrode cut copper sections providing accurate, consistent, and reliable performance.
This antenna is suitable for Antenna Ranges, Antenna Gain Measurements, System Setups. HPBW of OLB-137-15 has an H-plane & V-Plane beamwidth of H 30° / V 30°. Standard gain horn antenna has a Linear polarization. The material in standard gain horn antenna is AI. The Impedance used Standard gain horn antenna is 50 ohms.
SPEC
WR-137 Waveguide Standard Gain Horn Antenna |
|
|
15 dBi Gain, 5.9 GHz to 8.2 GHz |
|
|
OLB-137-15 |
|
|
|
|
Property |
Value |
|
Min. Frequency (GHz) |
5.9 |
|
Max. Frequency (GHz) |
8.2 |
|
Gain(dBi) |
15 |
|
HPBW 3 dB Beamwidth |
H 30° / V 30° |
|
Waveguide |
WR-137 |
|
Material |
AI |
|
Polarization |
Linear |
|
Impedance (?) |
50 |
|
Cover Flange |
square |
Features |
|
|
Precisely Machined and Gold Plated |
|
|
Low VSWR |
|
|
Light Weight |
|
|
Linear Polarization |
|
|
Low Return Loss |
|
|
Rectangular Waveguide Interface |
|
|
Lower sidelobes and symmetrical radiation patterns |
|
Applications |
|
|
Antenna Ranges |
|
|
Antenna Gain Measurements |
|
|
Array Elements |
|
Outline
Plot
Additional information
| Min. Frequency (GHz) | 5.9 |
|---|---|
| Max. Frequency (GHz) | 8.2 |
| Gain (dBi) | 15 |
| Flange | |
| HPBW 3 dB Beamwidth | |
| Waveguide | |
| Material | |
| Polarization | |
| Impedance (Ω) |
