20 dBi Gain, 21.7 GHz to 33 GHz, 20 dB Return Loss, Luneburg Lens AntennaSKU: OLLA-217330

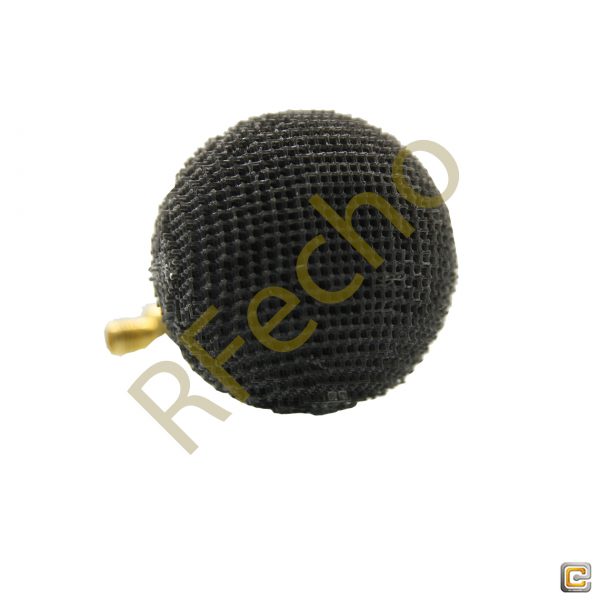

Luneburg lens antenna is a spherical dielectric lens antenna, which focuses microwaves to the focal point through dielectric. Luneburg lens antenna is widely used in microwave,millimeter wave, mobile communication, satellite communication and radio astronomy due to its high gain, low profile and multi-feed multi-beam operation.

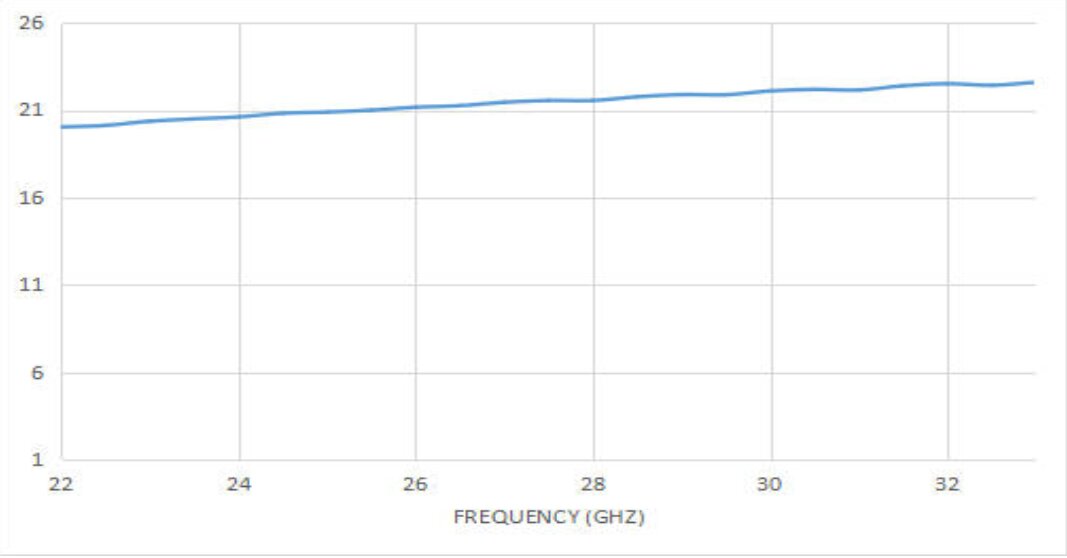

Luneburg Lens Antenna covers the frequency range from 21.7 GHz to 33 GHz and offers the nominal gain of 20 dBi where the return loss is 20 dB. HPBW is 18°@26 GHz. Luneburg Lens Antenna operates in all polarization.
